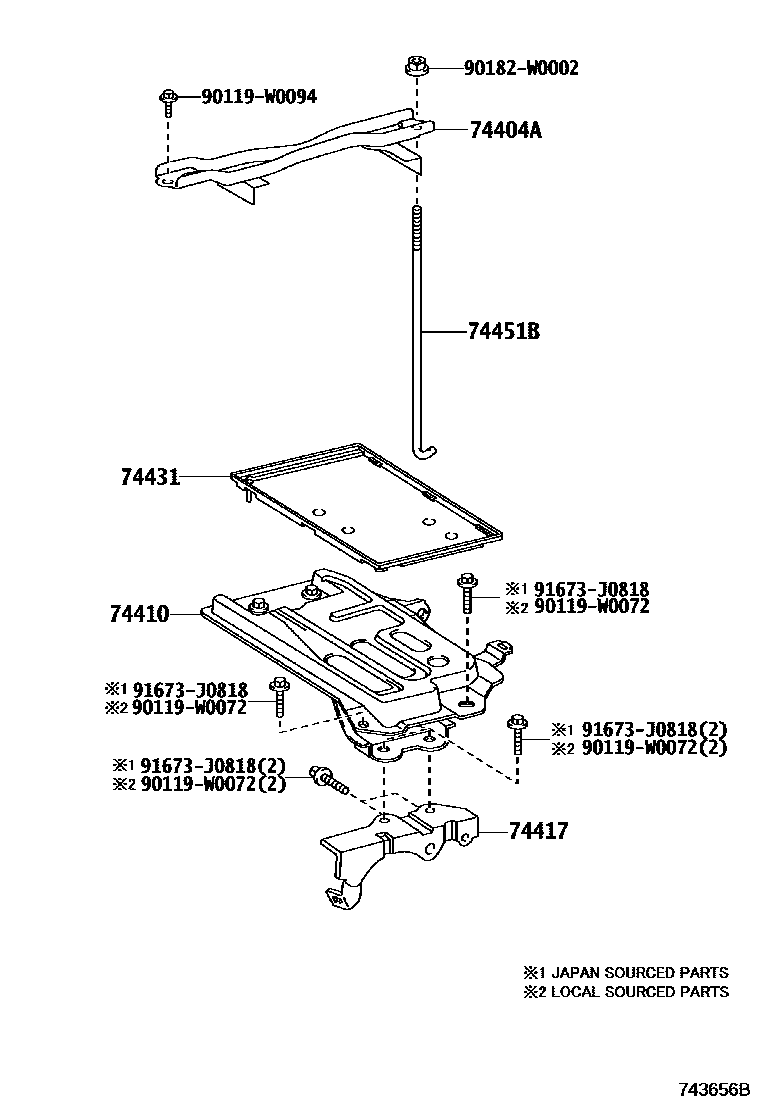

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-02350iNRE180201606-201808

74410CARRIER ASSY, BATTERY

main74410-02020iNRE180,ZRE18#201306-201605

main74410-02030iNDE180201306-201605

74417BRACKET, BATTERY CARRIER

main74401-02010iNRE180201606-201808

74431TRAY, BATTERY

main74431-02160iNRE180,ZRE18#201306-201605

74451BBOLT, BATTERY CLAMP

main74451-02140iNDE180,NRE180,ZRE18#201308-201407

main74451-30110iNRE180201606-201808

90119W0072

main90119-W0072

90119W0094

main90119-W0094

90182W0002

main90182-W0002

91673J0818

main91673-J0818

9 parts on this diagram · 1 diagram in section
