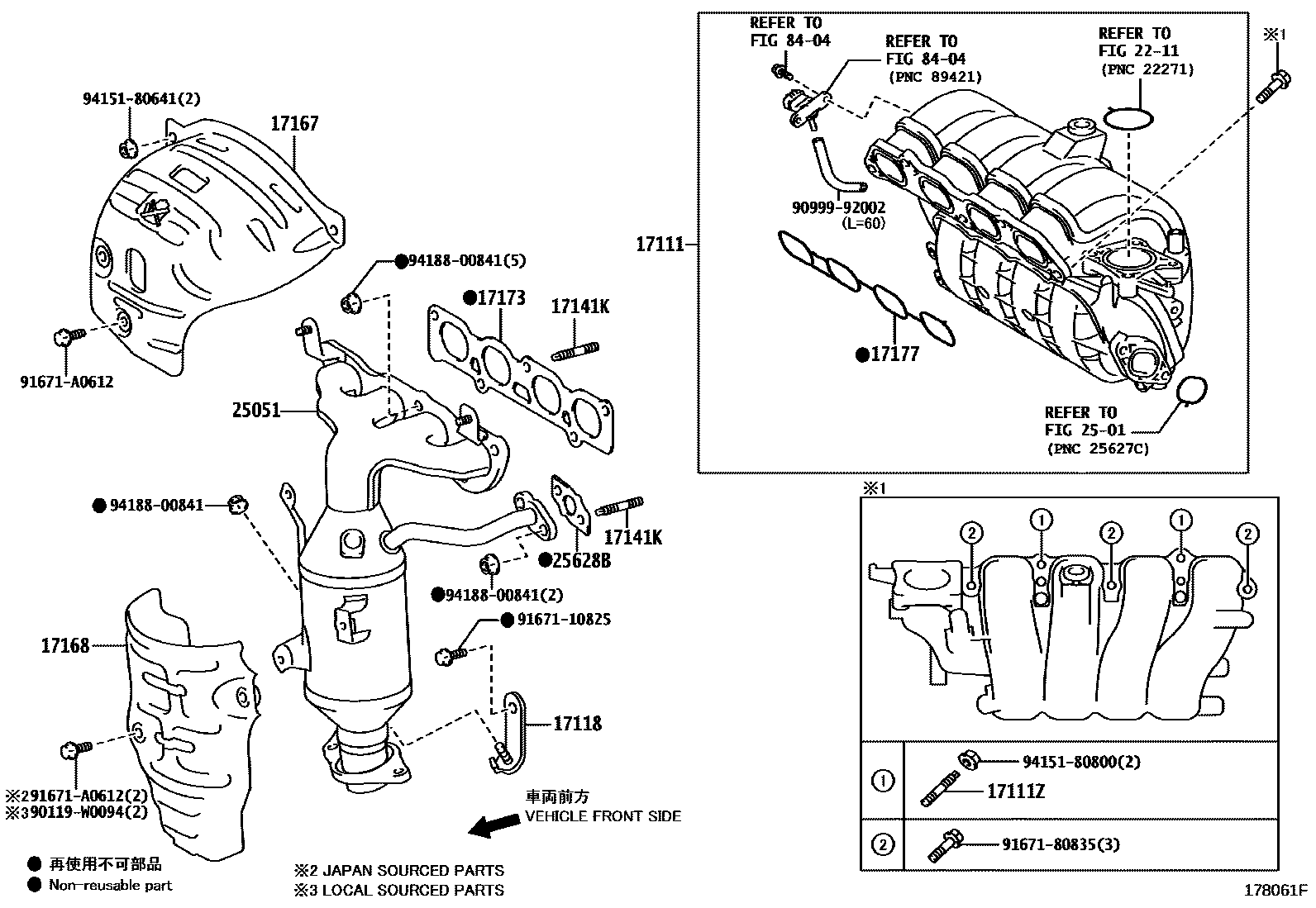

MANIFOLD
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
(L)
TURKEY SPEC
(J)
17141MANIFOLD, EXHAUST
(L)
(J)
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(L)
(L)
TURKEY SPEC
(J)
(J)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(L)
(J)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE,(J)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
2211FUEL INJECTION SYSTEM
2501EXHAUST GAS RECIRCULATION SYSTEM
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*114=*330,TURKEY SPEC
*114=*330
*114=TOYOTA/47070/Y
*114=TOYOTA/47130/Y
25628BGASKET, EGR INLET
8404ELECTRONIC FUEL INJECTION SYSTEM
90119W0094
main90119-W0094
9099992002
main90999-92002
9167110825
main91671-10825
9167180835
main91671-80835
91671A0612
main91671-A0612
9415180641
main94151-80641
9415180800
main94151-80800
9418800841
main94188-00841
22 parts on this diagram · 5 diagrams in section
