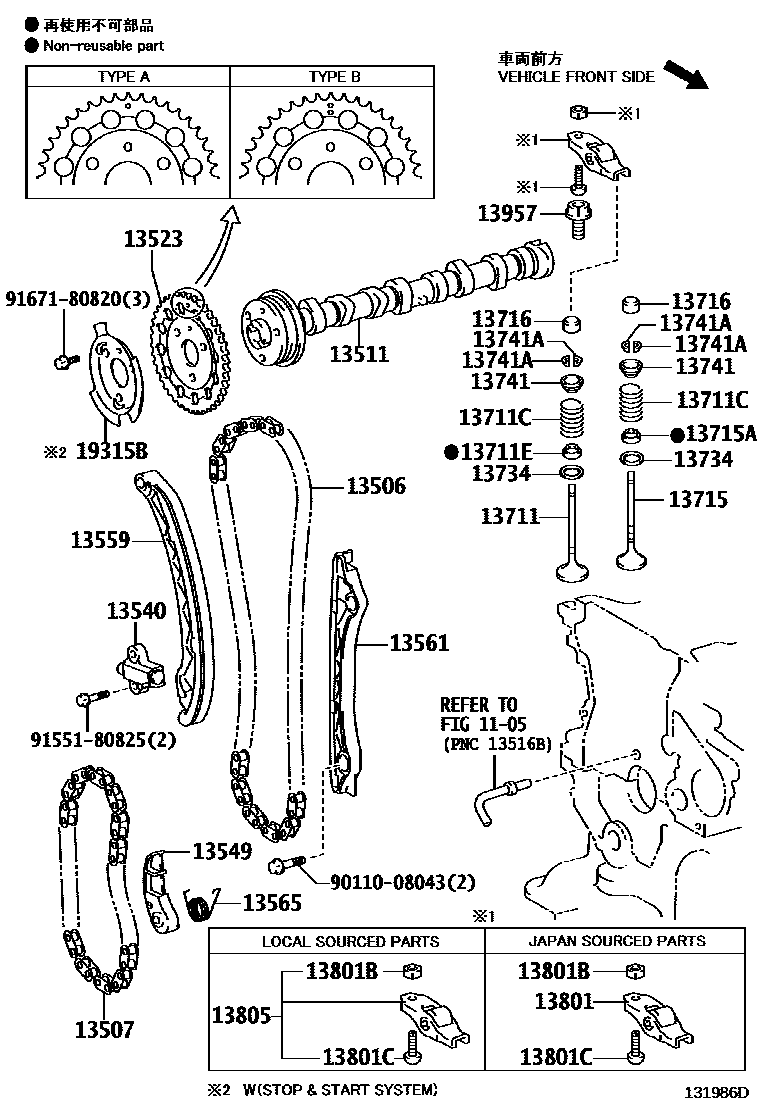

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
PNC 13523=TYPE B
(L)
(L)
TURKEY SPEC
PNC 13523=TYPE A
(J)
(J)
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
(L)
PNC 13523=TYPE B
TURKEY SPEC
PNC 13523=TYPE A
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
TYPE A:REFER ILLUST.
TURKEY SPEC
TYPE B:REFER ILLUST.
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13549PLATE, CHAIN TENSIONER
MARK TEUA
MARK UK
W/O MARK
W/O MARK
13559SLIPPER, CHAIN TENSIONER
PNC 13523=TYPE B
(L)
MADE IN EUROPE
(L)
PNC 13523=TYPE A
TURKEY SPEC
(J)
(J)
MADE IN JAPAN
13561DAMPER, CHAIN VIBRATION, NO.1
PNC 13523=TYPE B
(L)
(L)
MADE IN EUROPE
(L)
PNC 13523=TYPE A
TURKEY SPEC
(J)
(J)
MADE IN JAPAN
(J)
MADE IN JAPAN
13565SPRING, CHAIN DAMPER
(L)
(J)
13711VALVE, INTAKE
(L)
(J)
13711CSPRING, COMPRESSION(FOR OUTER)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
13711ESEAL, INTAKE VALVE STEM OIL
(L)
(J)
13715VALVE, EXHAUST
(L)
(L)
(J)
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
(J)
13716CAP, VALVE STEM
(L)
(J)
13734SEAT, VALVE SPRING
(L)
(J)
13741RETAINER, VALVE SPRING
(L)
TYPE A:REFER ILLUST.
PNC 13711C=TYPE A
(J)
TYPE B:REFER ILLUST.
PNC 13711C=TYPE B
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(L)
(J)
(J)
PNC 13711C=TYPE B
PNC 13711C=TYPE A
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13805ARM SET, VALVE ROCKER
13957PIVOT, VALVE ROCKER ARM
19315BPLATE, CRANK ANGLE SENSOR
9011008043
main90110-08043
9155180825
main91551-80825
9167180820
main91671-80820
27 parts on this diagram · 4 diagrams in section
