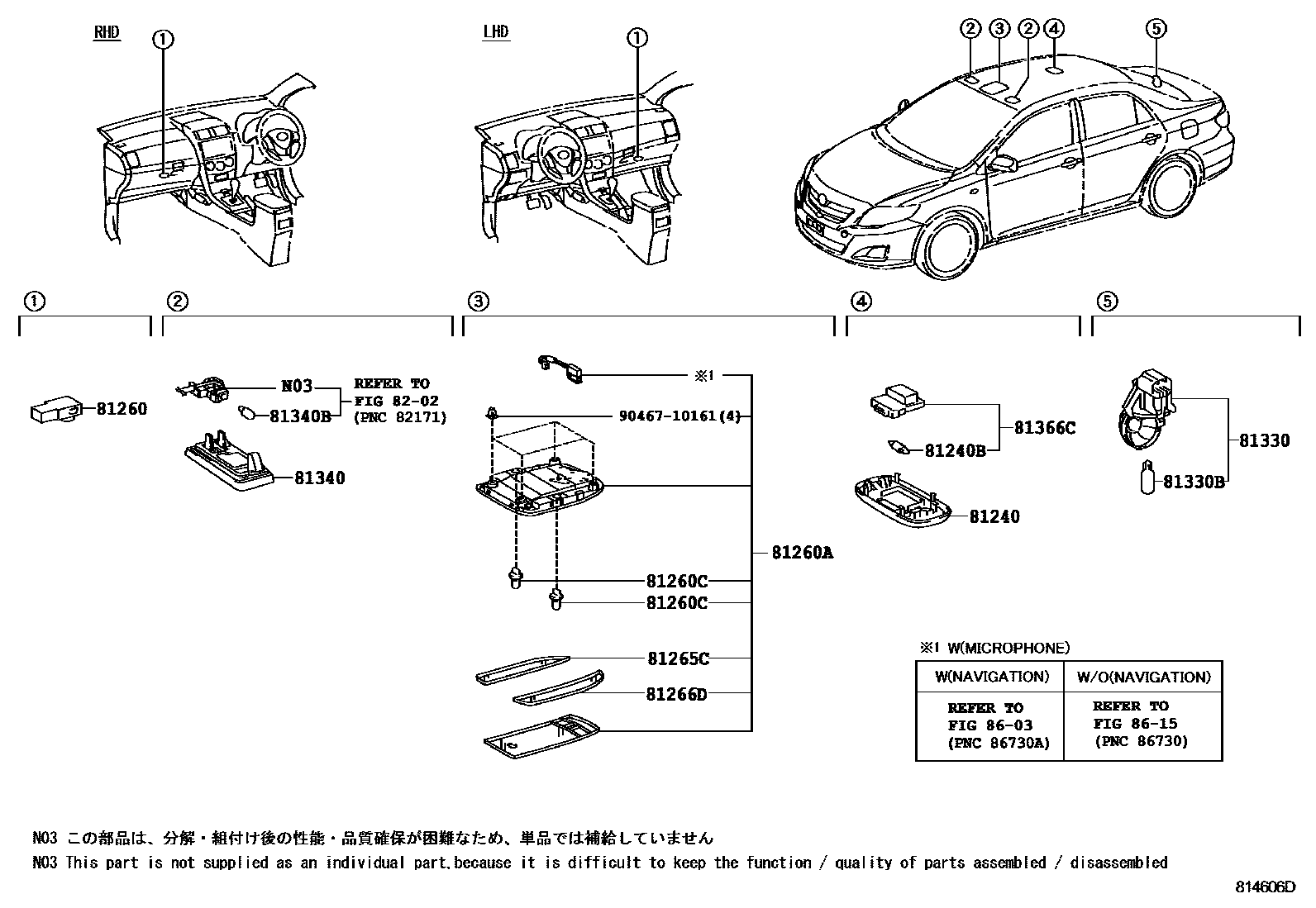

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B1iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-200903

LT.GRAY,TRIM1#

main81240-52040-E0iADE150,NDE150,NRE150,ZRE151..N201006-201306

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNDE150,ZRE151,ZZE150200802-200902

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-48010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-200903

81260ALAMP ASSY, MAP

main81260-02100-B0iNDE150,ZRE151,ZZE150200802-200902

LT.GRAY,TRIM1#

main81260-02100-E0iADE150200802-200903

GREGE,TRIM4#

main81260-02120-B0iNDE150,ZRE151,ZZE150..LHD..N200802-200902

AUDIO-MAP NAVIGATION 6SPEAKER,LT.GRAY,TRIM1#

main81260-02120-E0iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201306

AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),GREGE,TRIM4#

main81260-02140-B0iADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM)200902-201006

AUDIO-MAP NAVIGATION & 6SPEAKER,LT.GRAY,TRIM1#

main81260-02140-E0iADE150..RHD200802-200903

AUDIO-MAP NAVIGATION 6SPEAKER,GREGE,TRIM4#

81260CBULB(FOR MAP LAMP)

main81936-02020×2iNDE150,ZRE151,ZZE150200802-200902

12V 6W

81265CLENS, MAP LAMP, NO.1

main81265-02100iNDE150..DCRL200902-201007

81266DLENS, MAP LAMP, NO.2

main81266-02100iNDE150,ZRE151,ZZE150200802-200902

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020iNDE150,ZRE151,ZZE150200802-200902

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iNDE150,ZRE151,ZZE150200802-200902

12V 3.8W

81340LAMP ASSY, VANITY

main81340-30100-B0×2iNDE150,ZRE151,ZZE150..D; NDE150,ZRE151,ZZE150..N200802-200902

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,4#

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-200903

12V 8W

81366CBASE, ROOM LAMP SWITCH

main81366-68010iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-200903

8202WIRING & CLAMP

→ Go to FIG 82-02

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

9046710161

main90467-10161

16 parts on this diagram · 1 diagram in section
