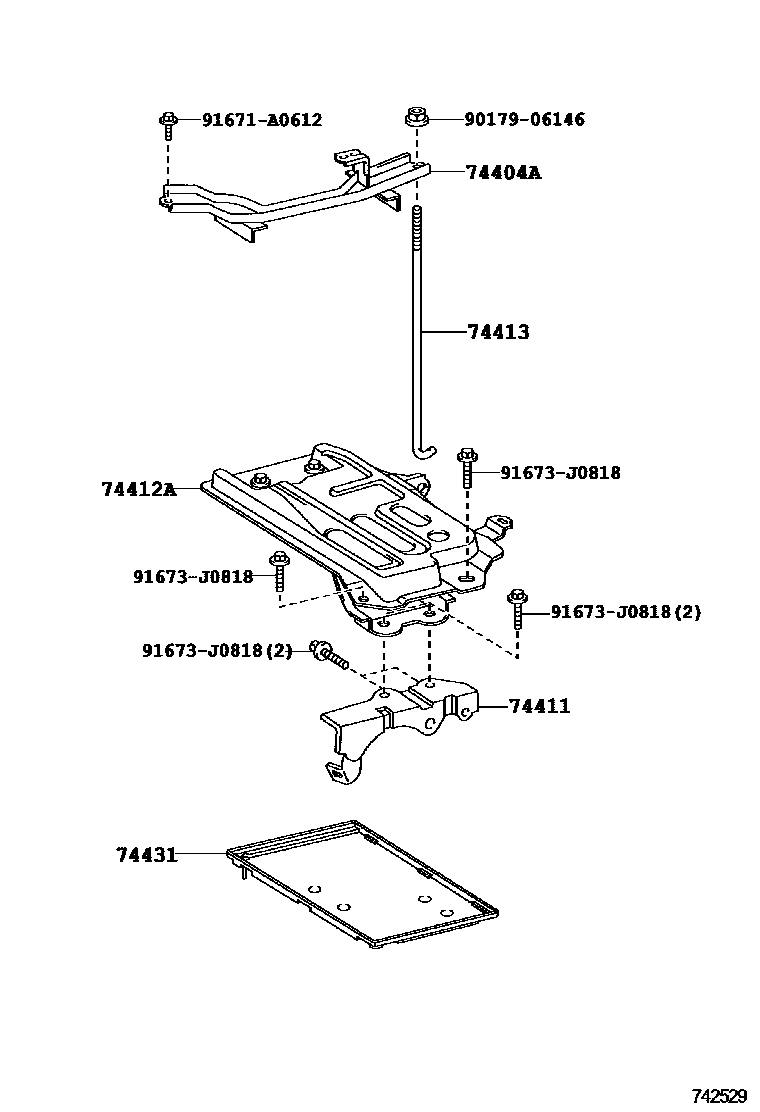

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-02150i201006-201306

main74404-02250supersedes 74404-02170i200902-201006

main74404-02160i200802-200902

COLD AREA SPEC; SUB COLD AREA SPEC

main74404-02270i200902-201006

STOP & START SYSTEM PACKAGE

74411CARRIER, BATTERY

main74401-02020i201006-201306

COLD AREA SPEC,(L); STOP & START SYSTEM PACKAGE,(L); SUB COLD AREA SPEC,(L)

74412ACARRIER, BATTERY, NO.2

main74410-02040i201006-201306

main74410-02050i200902-201006

main74410-02060i201006-201306

main74410-02120i201006-201306

STOP & START SYSTEM PACKAGE

74413BOLT, BATTERY CLAMP

main74451-30110i200802-200903

74431TRAY, BATTERY

main74431-02190i200903-201006

main74431-02210supersedes 74431-02230i200902-201006

main74431-02200i200902-201006

COLD AREA SPEC; SUB COLD AREA SPEC

9017906146

91671A0612

91673J0818

8 parts on this diagram · 1 diagram in section
