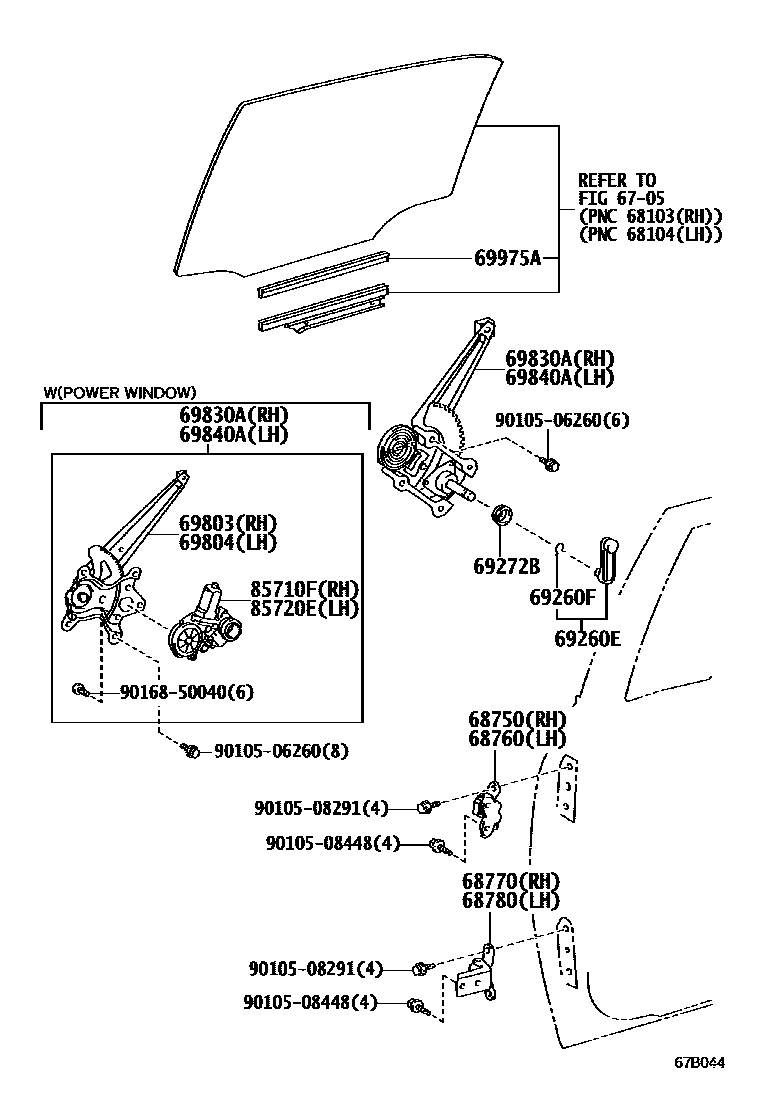

REAR DOOR WINDOW REGULATOR & HINGE
6705REAR DOOR PANEL & GLASS
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
DK.GRAY,TRIM1#; POWER WINDOW-FR&RR ALLONETOUCH UP/DOWN,DK.GRAY,TRIM1#; POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#
69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
POWER WINDOW-FR&RR ALLONETOUCH UP/DOWN; POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
POWER WINDOW-FRONT & REAR(ALL ONE TOUCH UP/DOWN); POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
main69803-02160iNDE150,NRE150,ZRE151..D; NDE150..LHD..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200902-201007
POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69830AREGULATOR ASSY, REAR DOOR WINDOW, RH
69840AREGULATOR ASSY, REAR DOOR WINDOW, LH
POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)
69975AFILLER, REAR DOOR GLASS CHANNEL
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85720-0D120iNDE150,NRE150,ZRE151..D; NDE150..LHD..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200902-201007
POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)
85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH
POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)
9010506260
main90105-06260
9010508291
main90105-08291
9010508448
main90105-08448
9016850040
main90168-50040
19 parts on this diagram · 1 diagram in section
