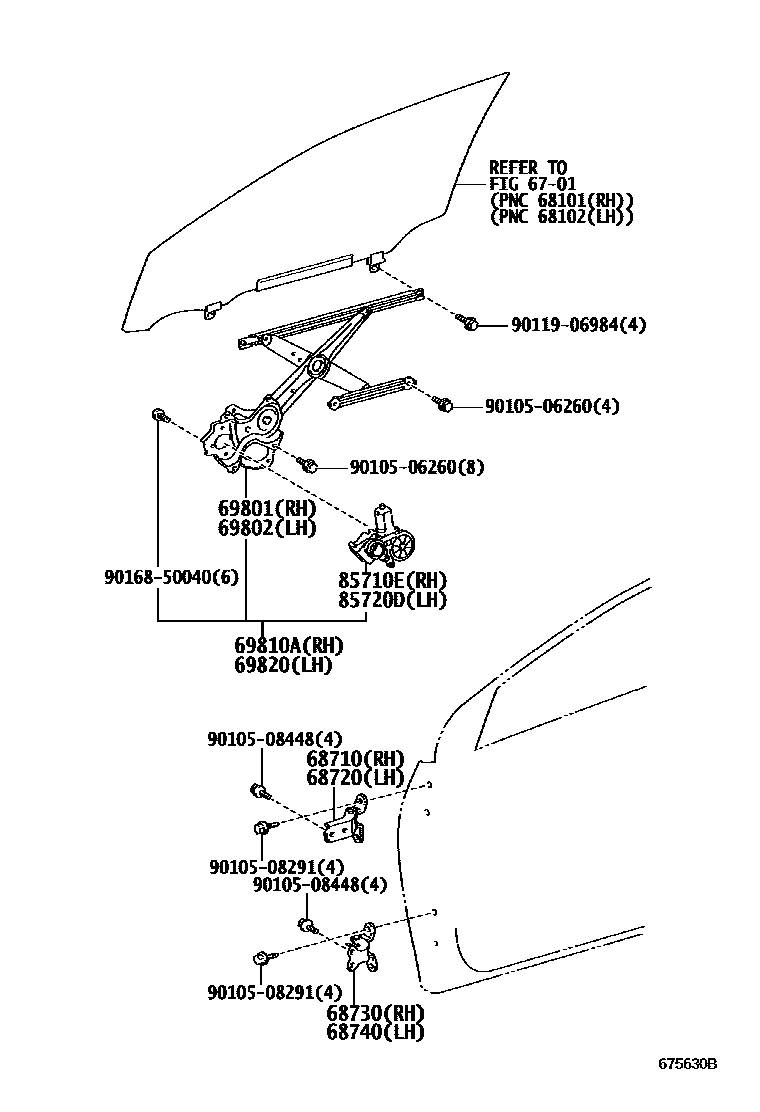

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iNDE150..D;NDE150..LHD..N;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200802-201306

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iNDE150,ZRE151,ZZE150200802-201306

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02070iNDE150,ZRE151,ZZE150200802-201306

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02070iNDE150,ZRE151,ZZE150200802-201306

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-02190iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-02190iADE150,ZZE150;NDE150,ZRE151..5F,5FS200802-201306

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-02270iNDE150..RHD..DCR;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200802-201306

main69810-02280iNDE150..LHD..DCR;ADE150,NRE150,ZRE151..LHD..(DCRL,HTWC,HTWVM)200802-201306

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-02290iADE150..RHD200802-201306

main69820-02300iNDE150,ZRE151,ZZE150..LHD200802-201306

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-02250iNDE150..RHD..5F;ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)200802-201306

main85710-0D100iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS)200802-201306

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-02230iADE150,ZZE150..LHD;NDE150,ZRE151..LHD..(5F,5FS)200802-201306

main85720-0D120iNDE150..RHD..5F;ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)200802-201306

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906984

main90119-06984

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
