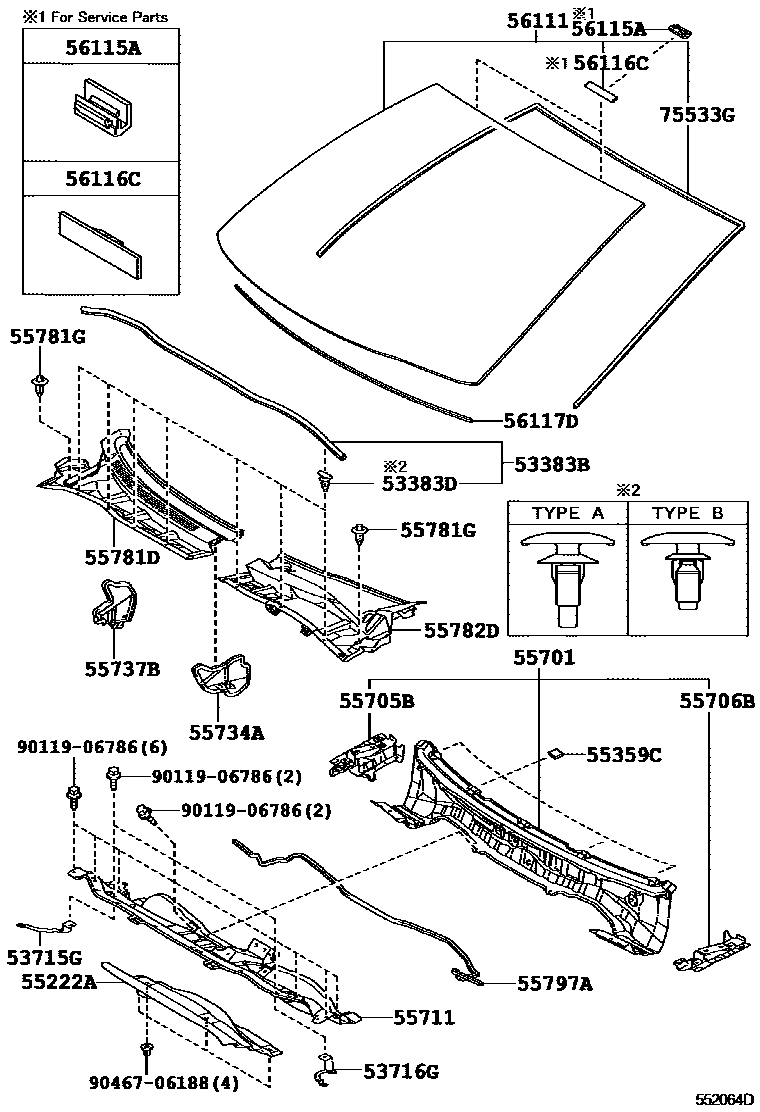

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-02110iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×5iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

TYPE A:REFER ILLUST.

main67867-52030×2iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

TYPE B:REFER ILLUST.

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-12071iNDE150,ZRE151,ZZE150200802-200902

53716GEXTENSION, FRONT FENDER APRON, REAR LH

main53716-12081iNDE150,ZRE151,ZZE150200802-200902

55222AINSULATOR, DASH PANEL, OUTER CENTER

main55224-02040iNDE150,ZRE151,ZZE150200802-200902

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-02140×4iNDE150,ZRE151,ZZE150200807-200902

55701PANEL SUB-ASSY, COWL

main55700-02310iNDE150,ZRE151,ZZE150..LHD200802-200902

main55700-02330iNDE150..RHD..DCR;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200902-201006

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-12080iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-12090iNDE150..DCR;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200902-201006

55711PANEL, COWL TOP, OUTER

main55701-02190iNDE150,ZRE151,ZZE150..LHD200802-200902

main55701-02200iNDE150..RHD..DCRL200902-201007

55734APLATE, WATER GUARD, RH

main55734-02030iADE150..LHD200802-200903

main55734-02040iNDE150..RHD..DCRL200902-201007

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02020iNDE150,ZRE151,ZZE150..LHD200802-200902

main55737-02030iNDE150..RHD..DCR;ADE150,NRE150,ZRE151..RHD..(DCRL,HTWC,HTWVM)200902-201006

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-02370iADE150..RHD200802-200903

main55708-02360supersedes 55708-12330iADE150..LHD200802-200903

COLD AREA SPEC

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2iADE150,NDE150,NRE150,ZRE151201006-201306

BLACK

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-02250iADE150..LHD200802-200903

main55709-02260iADE150,NDE150,NRE150,ZRE151..RHD201006-201306

55797ASEAL, COWL WATER EXTRACT

main55797-02020iNDE150,ZRE151,ZZE150200802-200902

56111GLASS, WINDSHIELD

main56101-02330iNDE150,ZRE151,ZZE150..LHD200802-200902

*LAM,T=4.66,GREEN

main56101-02331iNDE150..LHD..DCR;ADE150,NRE150,ZRE151..LHD..(DCRL,HTWC,HTWVM)200902-201006

*LAM,T=4.66,GREEN

main56101-02360iNDE150,ZRE151,ZZE150..RHD200802-200902

*LAM,T=4.56,GREEN

main56101-02361iADE150,NDE150,NRE150,ZRE151..RHD201006-201306

*LAM,T=4.66,GREEN

main56101-02340iNDE150,ZRE151,ZZE150..LHD..N200802-200902

*LAM,T=4.66,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-02341iNDE150..N..DCRL200902-201007

*LAM,T=4.66,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-02410iZRE151,ZZE150..RHD..N200802-200902

*LAM,T=4.56,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-02411iADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM)200902-201006

*LAM,T=4.66,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-02A00iADE150,NDE150,NRE150,ZRE151..LHD..N201006-201306

*LAM,T=4.66,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main56101-02A10iADE150,NDE150,NRE150,ZRE151..RHD..N201006-201306

*LAM,T=4.66,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120×2iADE150,NDE150,NRE150,ZRE151201006-201306

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iNDE150,ZRE151,ZZE150200802-200902

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-12300iNDE150,ZRE151,ZZE150200802-200902

L=1303

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-12690iNDE150,ZRE151,ZZE150200802-200902

9011906786

main90119-06786

9046706188

main90467-06188

23 parts on this diagram · 2 diagrams in section
