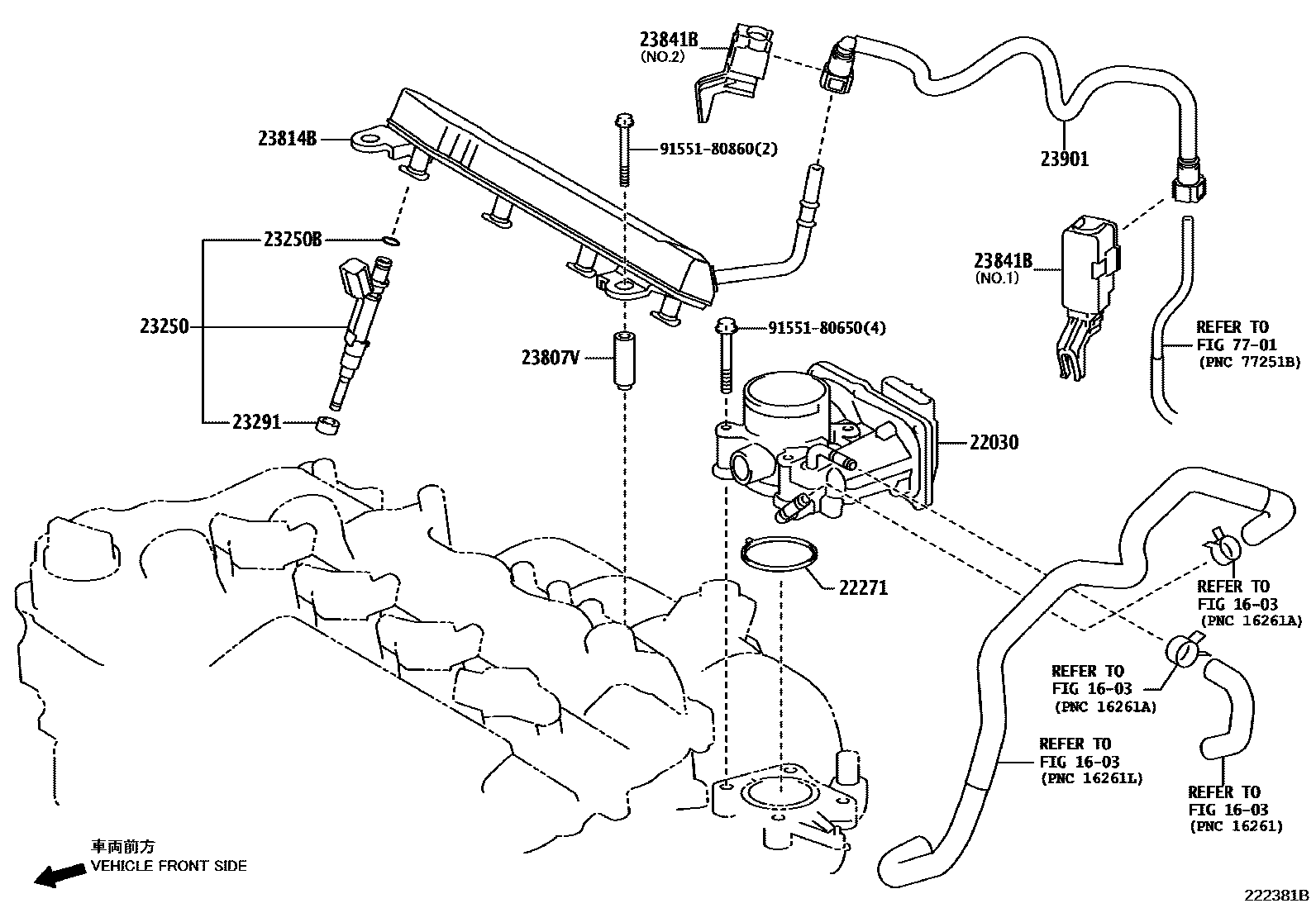

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
(L)
(L)
(J)
(J)
23250INJECTOR ASSY, FUEL
(L)
BOSCH
DENSO
(J)
23250BRING, O(FOR FUEL INJECTOR)
23291INSULATOR, INJECTOR VIBRATION
(L)
(J)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
(L)
(J)
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
NO.2
NO.1
NO.2
NO.2
NO.1
23901TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
9155180650
main91551-80650
9155180860
main91551-80860
14 parts on this diagram · 4 diagrams in section
