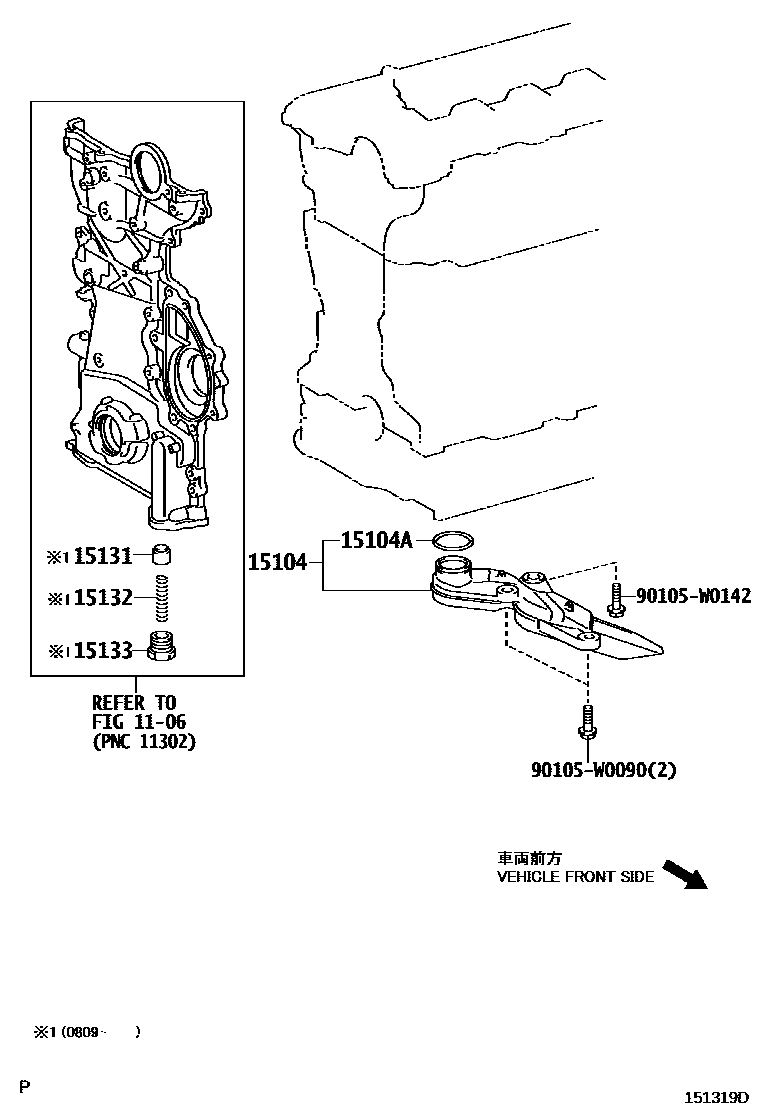

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-0D030i4ZZFE..ZZE150200802-200902

(L)

main15104-22023i4ZZFE..ZZE150200802-200902

(J)

main15104-26030i1ADFTV..ADE150200802-200903

main15104-33030i1NDTV..NDE150200802-200902

main15104-47040i1NRFE..NRE150201006-201306

15104ARING, O(FOR OIL STRAINER)

main90301-22018i1NRFE..NRE150201006-201306

main90301-27013i1ADFTV..ADE150200903-201006

15131VALVE, OIL PUMP RELIEF

main15131-03010i4ZZFE..ZZE150200802-200902

(L)

main15131-0A040i1NDTV..NDE150; 1ZRFE..ZRE151200802-200902

main15131-24010i4ZZFE..ZZE150200802-200902

(J)

main15131-38010i1NDTV..NDE150..DCR200902-201006

15132SPRING, OIL PUMP RELIEF VALVE

main15132-22040i4ZZFE..ZZE150200802-200902

main15132-26030i1ADFTV..ADE150200809-200903

main15132-33020i1NDTV..NDE150..DCR200902-201006

main15132-33040i1NDTV..NDE150200802-200902

main15132-46060i1ZRFE..ZRE151200902-201006

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1NDTV..NDE150..DCRL200902-201007

main15133-28020i1ZRFE..ZRE151200802-200902

main15133-33040i1ADFTV..ADE150200903-201006

90105W0090

main90105-W0090

90105W0142

main90105-W0142

8 parts on this diagram · 7 diagrams in section
