VENTILATION HOSE

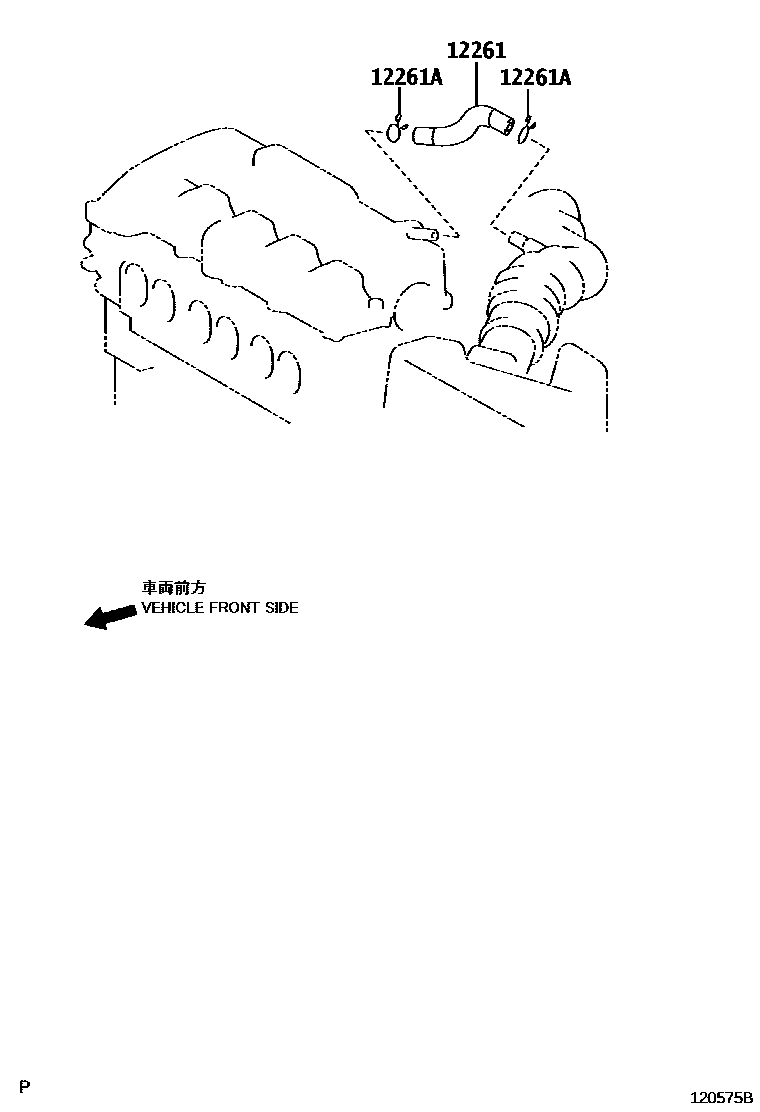

Parts diagram

12261HOSE, VENTILATION

main12261-0D070i200802-200902

(L)

main12261-0R020i200802-200903

main12261-0R030i201110-201306

main12261-22050i200802-200902

(J)

main12261-33060i200802-200902

main12261-33120i201006-201306

main12261-37040i200802-200902

main12261-37050i200902-201006

main12261-47010i201006-201306

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-23003×2i201006-201306

main90467-15120i201006-201304

NO.1

main90467-16035i200902-201006

main90467-20009i200802-200902

main90467-21152×2i200802-200902

main90467-22010i200802-200809

NO.2

main90467-23002i200809-200902

NO.2

2 parts on this diagram · 6 diagrams in section
