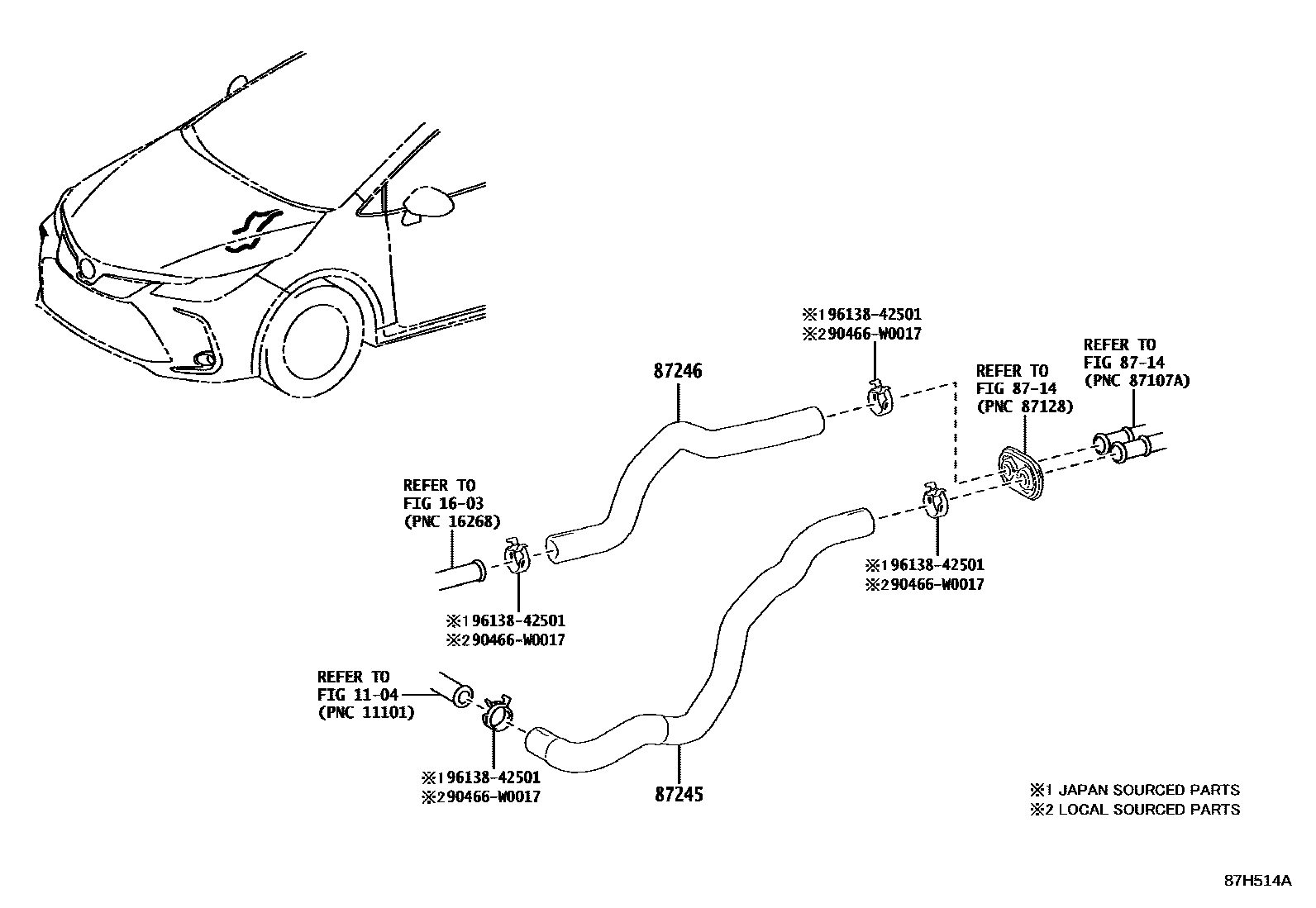

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-12790iMZEA11..6F..G;MZEA11..RHD..6F;MZEA11..CVT..(D,G)..EUR202011

main87209-47010iZWE219202301-202310

main87209-F4230iZWE219202310

main87245-02R60iZRE211..LHD..N;ZRE210..CVT..(G,N)..(EUR,GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN,RUS)202301

main87245-02W20iZRE210..6F..N..EUR;ZRE210..6F..D..RUS201901-202301

main87245-F4030iZWE211,213201901

87246HOSE, HEATER WATER, OUTLET

main87209-12800iMZEA11..TUR;MZEA11..LHD..(D,N)..EUR202301

main87209-47030iZWE219202301-202310

main87209-F4240iZWE219202310

main87245-02R70iZRE210..6F..G;ZRE210..RHD..6F..EUR201901-202012

main87245-02R80iZRE211..LHD..N;ZRE210..CVT..(G,N)..(EUR,GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN,RUS)202301

main87245-F4040iZWE211,213201901

90466W0017

main90466-W0017

9613842501

main96138-42501

7 parts on this diagram · 5 diagrams in section
