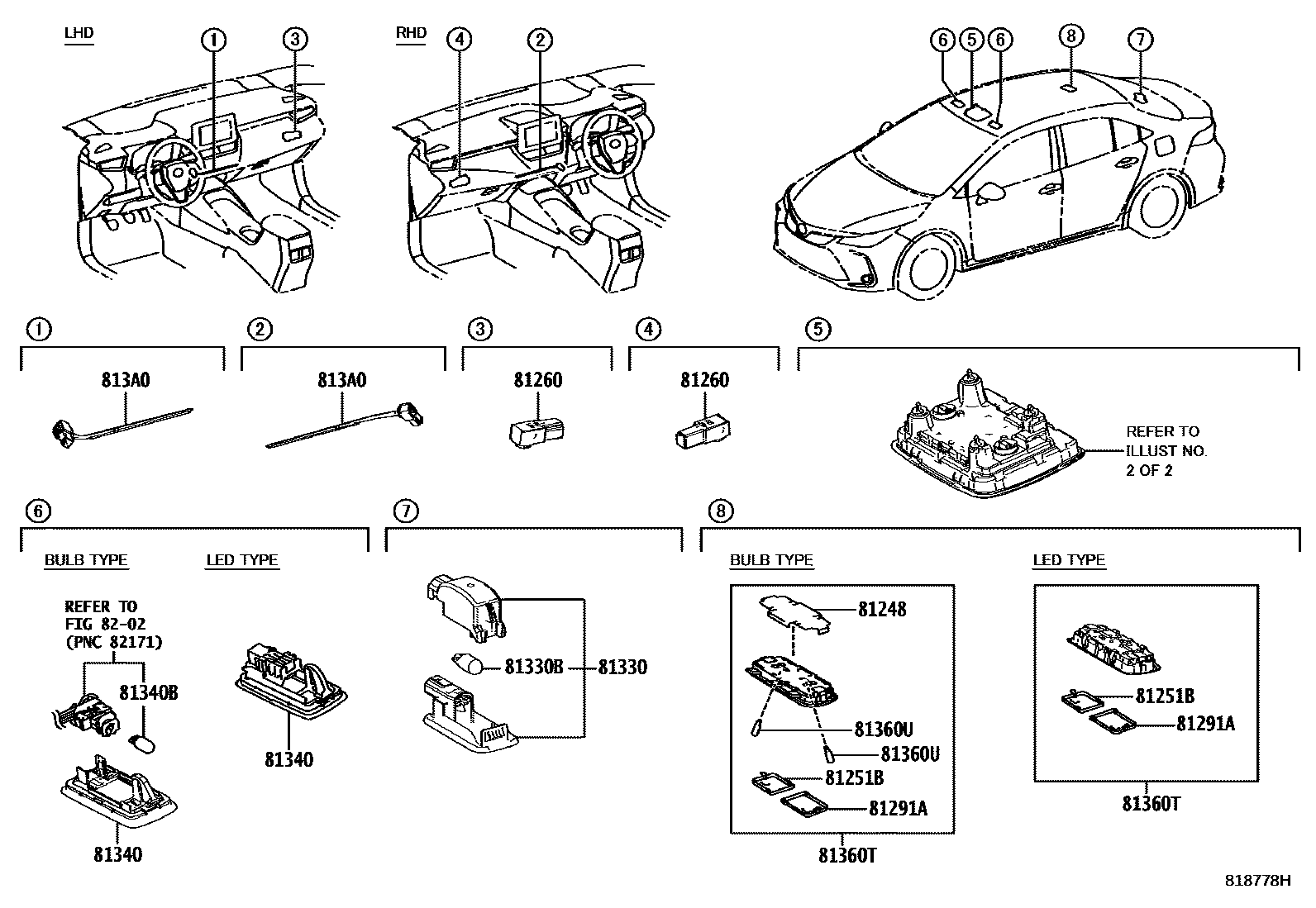

INTERIOR LAMP
81248COVER, ROOM LAMP, NO.1
main81369-05020iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN)201901
81251BLENS, REAR ROOM LAMP, RH
81260LAMP ASSY, GLOVE BOX
main81080-02040iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
81291ALENS, REAR ROOM LAMP, LH
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
main81330-02060iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN)201901
81330BBULB, LUGGAGE COMPARTMENT LAMP
main90981-WB021iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN)201901
12V 5W
81340LAMP ASSY, VANITY
main81340-33170×2iZRE210..N..EUR;ZRE21#,ZWE219..LHD..CVT..N..(GEN,RUS); ZWE219..G;ZRE211,ZWE219..N..GCC;MZEA11,ZRE210..G..(RUS,TUR)202301
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
main81340-F4010×2iZRE210..G..RUS; ZRE211..LHD..N;MZEA11,ZRE210..N..EUR;ZRE210..CVT..N..(GEN,RUS)201901-202301
SUN VISOR-*DRP(VANITY MIRROR & LAMP)
81340BBULB (FOR VANITY LAMP)
main90981-11062×2iZRE210..G..RUS; ZRE211..LHD..N;MZEA11,ZRE210..N..EUR;ZRE210..CVT..N..(GEN,RUS)201901-202301
12V 8W; 12V 8W,SUN VISOR-*DRP(VANITY MIRROR & LAMP)
81360TLAMP ASSY, SPOT
main81360-02070-A0iMZEA11..TUR;ZRE211..LHD..N;MZEA11..6F..N..EUR;ZWE219..(G,N)..(EUR,GCC,TUR);ZRE210..CVT..(G,N)..(GEN,RUS); ZRE210..D..RUS;MZEA11,ZWE219..LHD..D..EUR;ZRE210..LHD..CVT..D..(GCC,GEN); ZWE219..GEN;ZRE210..N..EUR;ZWE219..D..TUR;MZEA11..CVT..N..EUR202301
FROMAGE,TRIM0#; FROMAGE,TRIM0#,2#; FROMAGE,TRIM0#,20
main81360-02070-B1iMZEA11..TUR;ZWE219..GCC;ZRE211..LHD..N;ZRE210,ZWE219..G;MZEA11..6F..N..EUR;ZRE210..RHD..CVT..N; ZRE210..N..EUR;ZWE219..D..TUR;MZEA11..CVT..N..EUR;ZWE219..N..(EUR,GEN,TUR);ZRE210..LHD..CVT..N..(GEN,RUS)202301
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,21
BLACK,TRIM20
FROMAGE,TRIM0#,2#
BLACK,TRIM20
81360UBULB, SPOT LAMP
813A0LAMP ASSY, INSTRUMENT PANEL
main813A0-12030iMZEA11..G..TUR;ZRE210,ZWE219..G; ZRE210..6F..N..EUR; ZRE211..N..GCC; ZWE219..LHD..N;ZRE210..LHD..CVT..N..(EUR,GEN,RUS);MZEA11,ZRE211..LHD..N..(EUR,GEN,TUR)202301
HIGH GRADE PACKAGE; ILLUMINATED ENTRY SYSTEM-WITH(CENTER TRAY & *CUH & DOOR); OUTSIDE REAR VIEW MIRROR-*AREM & *HEA&SEAT COVER MATERIAL-FOR GR SPORT
ILLUMINATED ENTRY SYSTEM- WITH(CENTER TRAY & *CUH & DOOR)
ILLUMINATED ENTRY SYSTEM-WITH(CENTER TRAY & *CUH & DOOR)
8202WIRING & CLAMP
12 parts on this diagram · 2 diagrams in section
