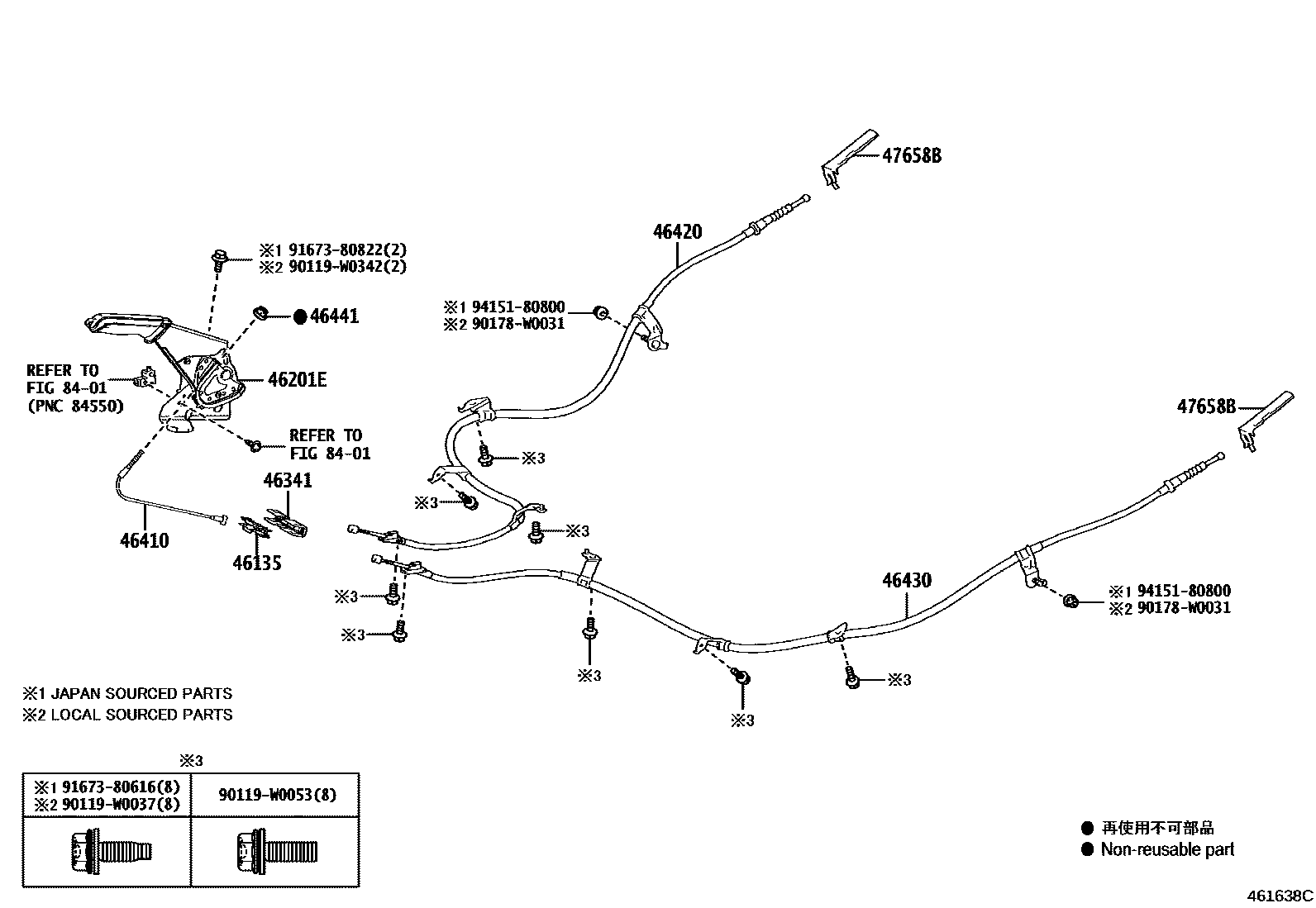

PARKING BRAKE & CABLE

0001 1PARKING BRAKE CABLE 0002 1ELECTRIC PARKING BRAKE

46135STOPPER, PARKING BRAKE CABLE END

main46135-02100iZRE211..RHD;ZRE210..RHD..6F..N;ZRE210..RHD..D..GEN202001-202301

main46135-12010iZRE211..G;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN)201901-202301

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02590-C0iZRE210..RHD..D..GEN202001

BLACK,TRIM0#,2#

main46201-02600-C0iZRE210..RHD..CVT..N202301

BLACK,TRIM0#,1#,2#

main46201-02600-C0iZRE211..RHD;ZRE210..RHD..6F..N202001-202301

BLACK,TRIM0#,2#

main46201-12550-C0iZRE210..D..RUS;ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

BLACK,TRIM0#,2#

main46201-12560-C0iZRE211..G;ZRE210..N..GCC;ZRE210..LHD..6F..N..(GEN,RUS)201901-202301

BLACK,TRIM0#,2#

main46201-12560-C0iZRE211..LHD..N;ZRE210..6F..N..EUR;ZRE210..LHD..CVT..(G,N)..(GEN,RUS)202301

BLACK,TRIM0#,1#,2#

46341EQUALIZER, PARKING BRAKE

main46341-02120iZRE211..RHD;ZRE210..RHD..6F..N;ZRE210..RHD..D..GEN202001-202301

main46341-12040iZRE211..G;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN)201901-202301

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02250iZRE210..RHD..CVT..N202001-202301

main46410-12340iZRE211..LHD..N;ZRE210..6F..D..RUS;ZRE210..6F..N..EUR;ZRE210..CVT..D..GCC;ZRE210..LHD..CVT..(GEN,RUS)201901-202301

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02400iMZEA11..LHD..D;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02260iMZEA11..LHD..D;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iMZEA11..LHD..D;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

47658BPROTECTOR, PARKING BRAKE LEVER

main47658-47010iMZEA11..LHD..D;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119W0037

main90119-W0037

90119W0053

main90119-W0053

90119W0342

main90119-W0342

90178W0031

main90178-W0031

9167380616

main91673-80616

9167380822

main91673-80822

9415180800

main94151-80800

16 parts on this diagram · 2 diagrams in section
