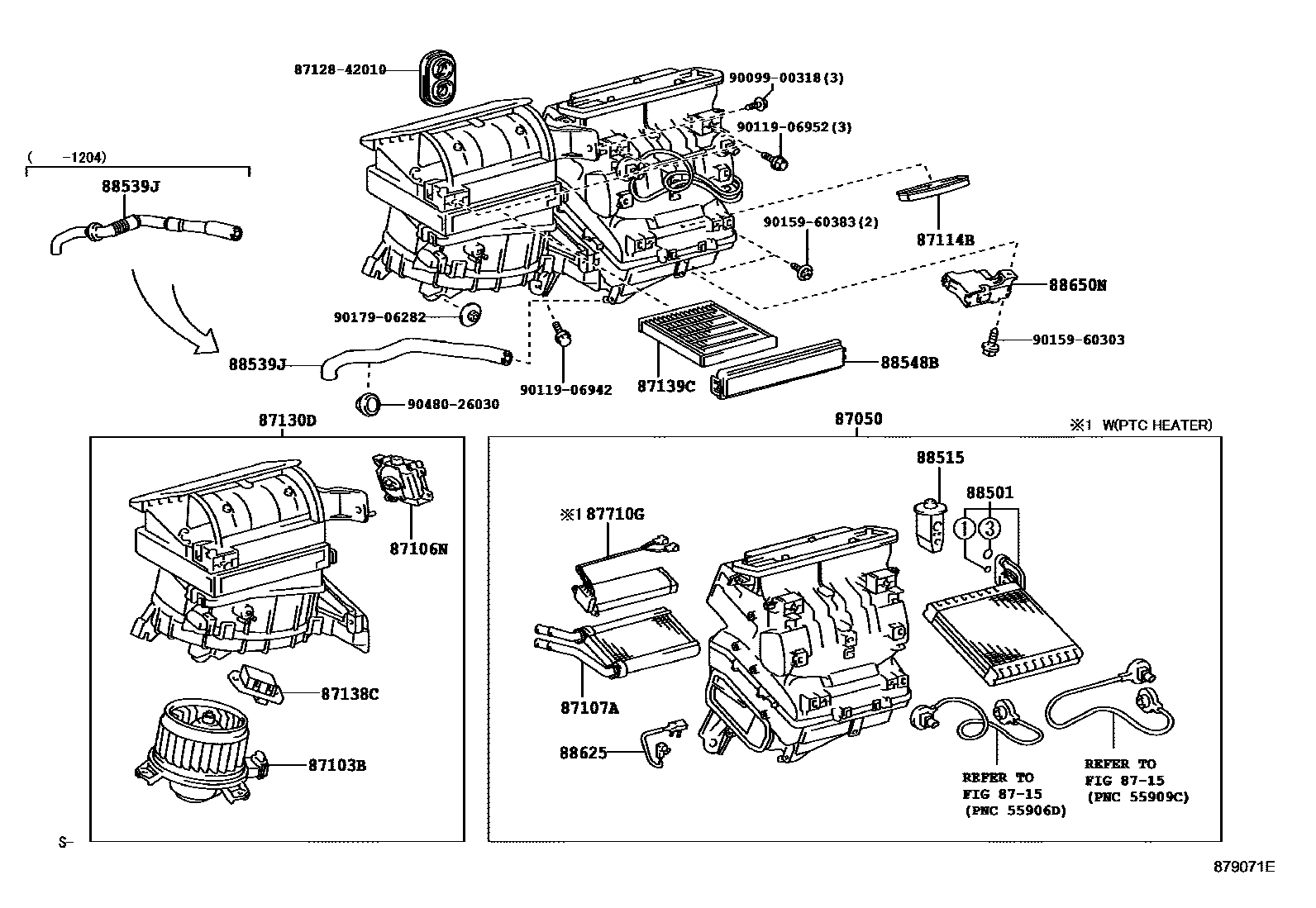

87050RADIATOR ASSY, AIR CONDITIONER

main87050-12310supersedes 87050-12370i201002-201004

main87050-12390supersedes 87050-12440i201004-201005

COLD AREA SPEC

main87050-12391i201005-201304

COLD AREA SPEC

main87050-42311supersedes 87050-42351i201002-201004

main87050-12290i200812-201004

AIR CONDITIONER-AUTO(SINGLE MODE); COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE)

main87050-12291supersedes 87050-42371i201005-201106

COLD AREA SPEC&AIR CONDITIONER-AUTO

main87050-12300supersedes 87050-12390i200812-201004

COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE)

main87050-12301i201005-201304

COLD AREA SPEC&AIR CONDITIONER-AUTO

main87050-12320supersedes 87050-12380i200611-200812

MANUAL AIR CONDITIONER(MAKER OPTION)

main87050-12350supersedes 87050-12310i200611-200812

AUTO AIR CONDITIONER(SINGLE MODE)

main87050-12360supersedes 87050-12320i200611-200901

AUTO AIR CONDITIONER(SINGLE MODE)

main87050-12400i200611-200812

COLD AREA SPEC; COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION); MANUAL AIR CONDITIONER(MAKER OPTION)

main87050-12401i201005-201304

COLD AREA SPEC

main87050-12430supersedes 87050-42411i200812-201002

COLD AREA SPEC

main87050-12440i200611-200812

COLD AREA SPEC

main87050-12540i200812-201004

AIR CONDITIONER-AUTO(SINGLE MODE); RUSSIA SPEC, W(EURO 4 REGULATION)&COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE); RUSSIA SPEC, W/O(EURO 4 REGULATION)&COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE)

main87050-42371i201002-201004

RUSSIA SPEC, W(EURO 4 REGULATION)&COLD AREA SPEC; RUSSIA SPEC, W/O(EURO 4 REGULATION)&COLD AREA SPEC

main87050-42411i200812-201002

RUSSIA SPEC, W(EURO 4 REGULATION)&COLD AREA SPEC; RUSSIA SPEC, W/O(EURO 4 REGULATION)&COLD AREA SPEC

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-12080supersedes 87103-42090i201106-201304

main87103-42070i200611-200812

MANUAL AIR CONDITIONER(DEALER OPTION)

main87103-42090i200611-200812

COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION); MANUAL AIR CONDITIONER(DEALER OPTION)

main87103-12060i200611-200812

AUTO AIR CONDITIONER(SINGLE MODE)

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-42110i200611-200812

MANUAL AIR CONDITIONER(DEALER OPTION)

main87106-42130i200611-200812

COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION); MANUAL AIR CONDITIONER(DEALER OPTION)

main87106-42140supersedes 87106-42130i201106-201112

main87106-47130i201112-201304

AIR CONDITIONER-AUTO; COLD AREA SPEC&AIR CONDITIONER-AUTO

main87106-42120i200812-201004

AIR CONDITIONER-AUTO(SINGLE MODE)

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42170i200611-200901

COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION); MANUAL AIR CONDITIONER(DEALER OPTION)

87114BCOVER, HEATER

main87114-12080i200611-200812

COLD AREA SPEC; SUB COLD AREA SPEC

87130DBLOWER ASSY

main87130-12421i201106-201304

main87130-12431i200812-201004

main87130-12470supersedes 87130-12471i200611-200805

MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-12471i200812-201004

main87130-12551supersedes 87130-12561i200806-200812

COLD AREA SPEC; COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION); COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION); MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-12560i200611-200805

COLD AREA SPEC; COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION); COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION); MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-12410i200611-200805

AUTO AIR CONDITIONER(SINGLE MODE); COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE)

main87130-12411i200812-201004

AIR CONDITIONER-AUTO(SINGLE MODE); COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE)

main87130-12420i200611-200805

AUTO AIR CONDITIONER(SINGLE MODE); COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE)

main87130-12430i200611-200805

MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-12530supersedes 87130-12430i200611-200805

AUTO AIR CONDITIONER(SINGLE MODE)

main87130-12531i200812-201004

AIR CONDITIONER-AUTO(SINGLE MODE)

main87130-12540supersedes 87130-12471i200611-200805

AUTO AIR CONDITIONER(SINGLE MODE)

main87130-12541i200901-201002

AIR CONDITIONER-AUTO(SINGLE MODE)

main87130-12550i200611-200805

COLD AREA SPEC; COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION); COLD AREA SPEC&WITHOUT(AIR CONDITIONER); MANUAL AIR CONDITIONER(DEALER OPTION)

main87130-12561i200806-200812

COLD AREA SPEC; COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION); COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION); MANUAL AIR CONDITIONER(DEALER OPTION)

87138CRESISTOR, BLOWER

main87138-26150i200611-200901

main87138-26160i200611-200812

COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION); MANUAL AIR CONDITIONER(DEALER OPTION)

87139CFILTER, CLEAN AIR

main87139-30040i201004-201304

POLLEN FILTER

main87139-50100i201004-201304

*DPF

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87710GQUICK HEATER ASSY

main87710-12010i200901-201002

main87710-12020i200611-200812

COLD AREA SPEC; COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE); COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION); COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION)

main87710-42030i200812-201004

main87710-42040i200812-201004

RUSSIA SPEC, W(EURO 4 REGULATION)&COLD AREA SPEC; RUSSIA SPEC, W(EURO 4 REGULATION)&COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE); RUSSIA SPEC, W/O(EURO 4 REGULATION)&COLD AREA SPEC; RUSSIA SPEC, W/O(EURO 4 REGULATION)&COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE)

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-26210i200611-200805

COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION); COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION); MANUAL AIR CONDITIONER(DEALER OPTION); MANUAL AIR CONDITIONER(MAKER OPTION)

main88501-26211i200812-201004

main88501-72020i201010-201304

88515VALVE, COOLER EXPANSION

main88515-12100supersedes 88515-42090i201005-201304

main88515-26070i201004-201005

COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-AUTO

main88515-42090i200611-200901

COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION); MANUAL AIR CONDITIONER(DEALER OPTION)

88539JHOSE, DRAIN COOLER

main88539-12190i200611-200812

main88539-12200i200812-201002

main88539-12230i201207-201304

88548BCASE, AIR FILTER

main88548-42010i200611-200812

main88548-42020i200812-201004

88625THERMISTOR, COOLER, NO.1

main88625-26090i200611-200901

COLD AREA SPEC&MANUAL AIR CONDITIONER(DEALER OPTION)

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-12A90i200611-200812

COLD AREA SPEC; COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION)

main88650-12E20i200812-201002

AIR CONDITIONER-MANUAL; COLD AREA SPEC; STOP & START SYSTEM PACKAGE; STOP & START SYSTEM PACKAGE&AIR CONDITIONER-MANUAL

main88650-12E30supersedes 88650-12E20i200812-201002

COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-MANUAL; STOP & START SYSTEM PACKAGE&COLD AREA SPEC; STOP & START SYSTEM PACKAGE&COLD AREA SPEC&AIR CONDITIONER-MANUAL

main88650-12E70i201106-201304

main88650-12A80i200611-200812

COLD AREA SPEC; COLD AREA SPEC&MANUAL AIR CONDITIONER(MAKER OPTION); MANUAL AIR CONDITIONER(MAKER OPTION)

main88650-12B40i200611-200812

AUTO AIR CONDITIONER(SINGLE MODE); COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE)

main88650-12B50i200611-200812

AUTO AIR CONDITIONER(SINGLE MODE); COLD AREA SPEC&AUTO AIR CONDITIONER(SINGLE MODE)

main88650-12D50i201004-201304

AIR CONDITIONER-AUTO

main88650-12E60i200812-201002

AIR CONDITIONER-AUTO(SINGLE MODE); COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE MODE)

8712842010GROMMET, HEATER
