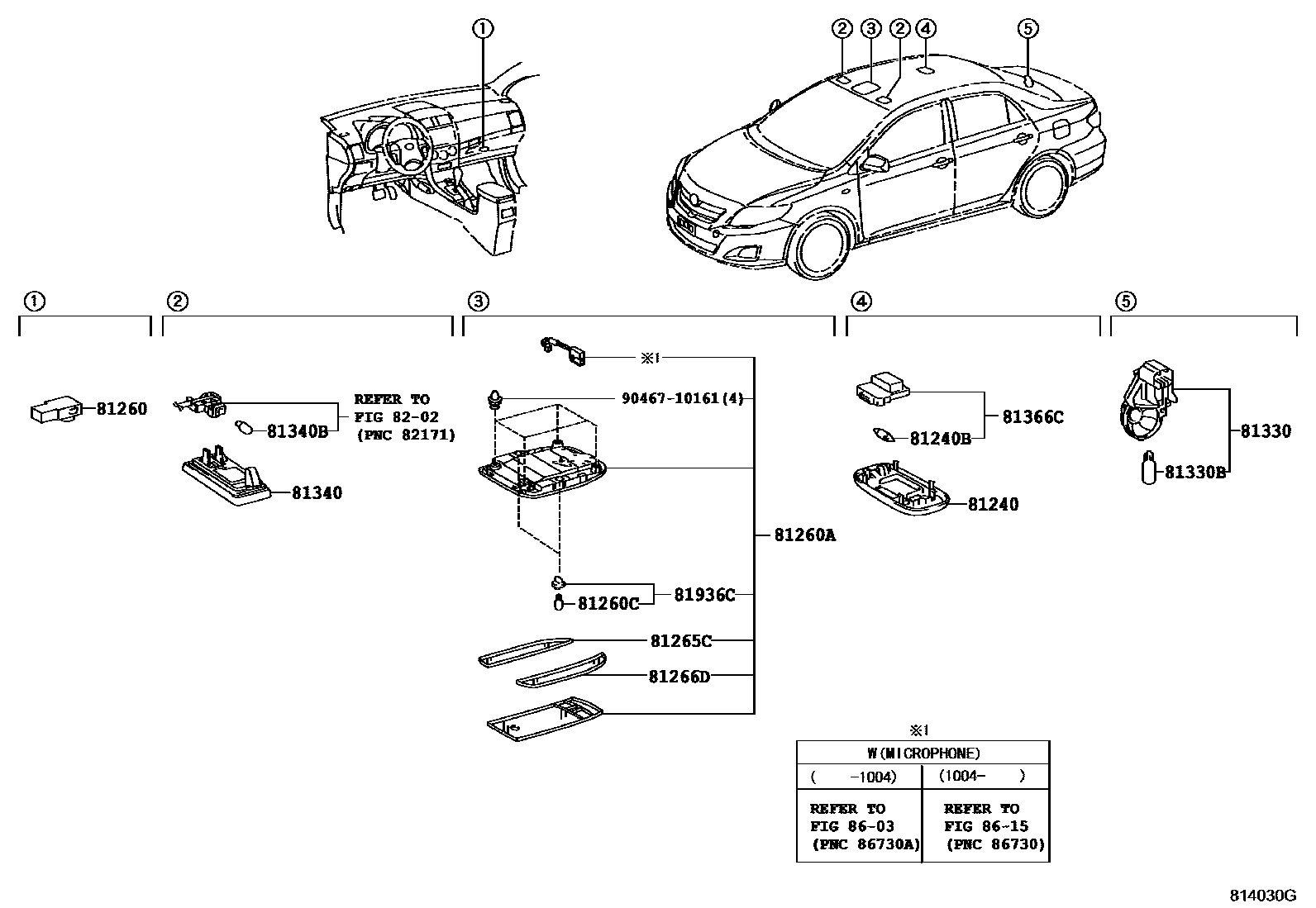

INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM1#
GREGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
main81260-12150-B0supersedes 81260-12190-B0iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200812-201004
LT.GRAY,TRIM1#
GREGE,TRIM4#
LT.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-WITH(NAVIGATION SYSTEM) & 6SPEAKER,LT.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-WITH(NAVIGATION SYSTEM) & 6SPEAKER,GREGE,TRIM4#
AUDIO (OVERSEAS MARKET)-WITH(NAVIGATION SYSTEM) & 6SPEAKER,LT.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-WITH(NAVIGATION SYSTEM) & 6SPEAKER,GREGE,TRIM4#
AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH),LT.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH),GREGE,TRIM4#
RUSSIA SPEC, W(EURO 4 REGULATION),LT.GRAY,TRIM1#; RUSSIA SPEC, W/O(EURO 4 REGULATION),LT.GRAY,TRIM1#
RUSSIA SPEC, W(EURO 4 REGULATION),LT.GRAY,TRIM1#; RUSSIA SPEC, W/O(EURO 4 REGULATION),LT.GRAY,TRIM1#
RUSSIA SPEC, W(EURO 4 REGULATION)&AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH),LT.GRAY,TRIM1#; RUSSIA SPEC, W/O(EURO 4 REGULATION)&AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH),LT.GRAY,TRIM1#
RUSSIA SPEC, W(EURO 4 REGULATION)&AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH),LT.GRAY,TRIM1#; RUSSIA SPEC, W/O(EURO 4 REGULATION)&AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH),LT.GRAY,TRIM1#
81260CBULB(FOR MAP LAMP)
12V 8W
12V 5W
81265CLENS, MAP LAMP, NO.1
81266DLENS, MAP LAMP, NO.2
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81340LAMP ASSY, VANITY
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,4#
81340BBULB (FOR VANITY LAMP)
12V 8W
81366CBASE, ROOM LAMP SWITCH
81936CBULB ASSY
8202WIRING & CLAMP
8603NAVIGATION & FRONT MONITOR DISPLAY
8615TELEPHONE & MAYDAY
9046710161
main90467-10161
17 parts on this diagram · 1 diagram in section
