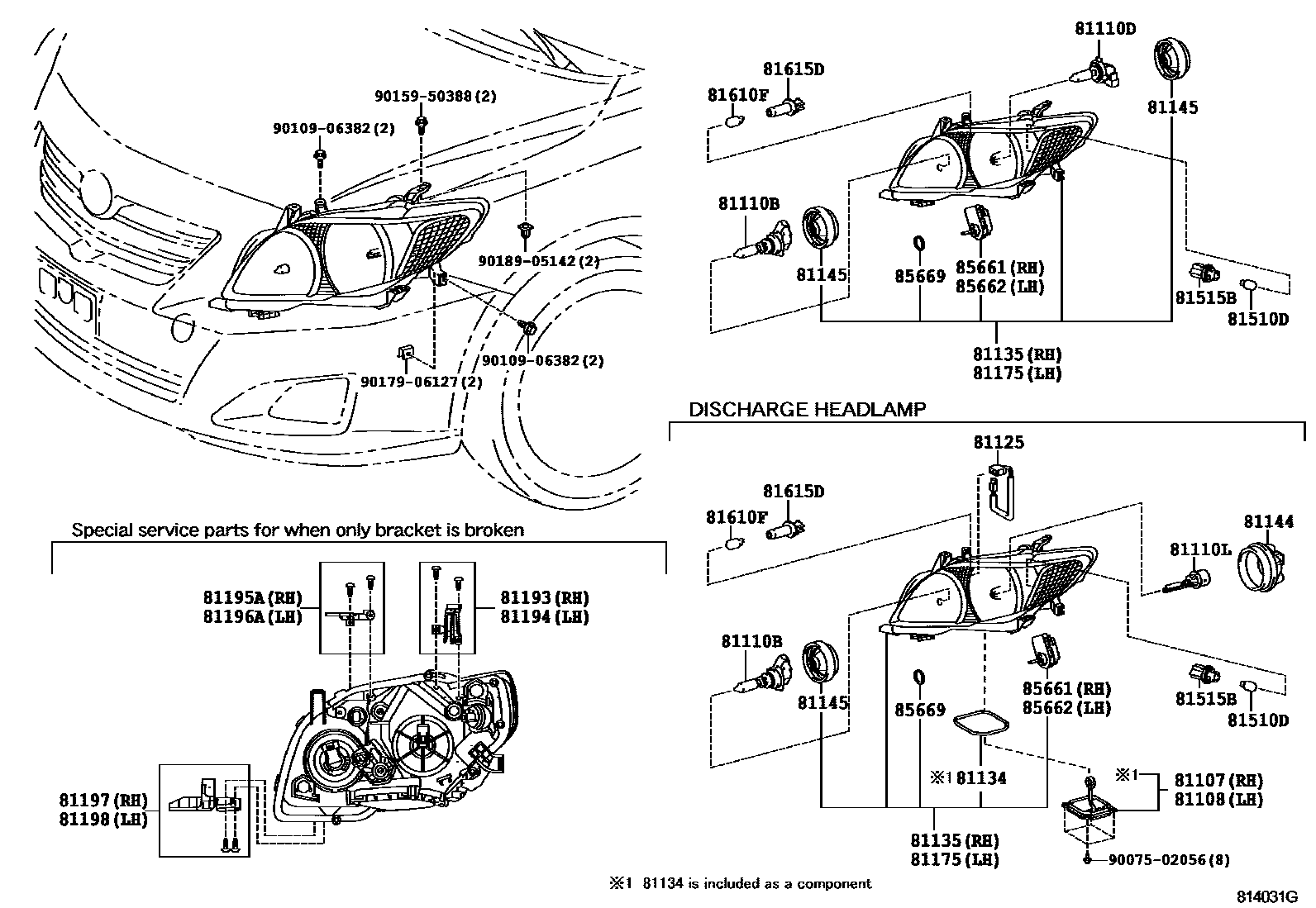

HEADLAMP

0001 1 0002 1HALOGEN HEADLAMP 0003 1DISCHARGE HEADLAMP

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-12A80iADE150..LHD200611-200901

HEADLAMP-DISCHARGE

main81107-12A81iZRE151..6F..N201004-201106

HEADLAMP-DISCHARGE

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-12A80iADE150..LHD200611-200901

HEADLAMP-DISCHARGE

main81107-12A81iZRE151..6F..N201004-201106

HEADLAMP-DISCHARGE

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iADE150,NDE150,ZRE151,ZZE150200611-200801

12V 65W

main90981-13046×2iNDE150,ZRE151,ZZE150200801-200812

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047×2iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200812-201004

12V 51W,HALOGEN

81110LBULB, DISCHARGE HEADLAMP

main90981-20011×2iADE150,ZRE151..LHD..N200611-200712

45V 35W,HEADLAMP-DISCHARGE

main90981-20015×2iZRE151..LHD..N200801-200812

45V 35W,HEADLAMP-DISCHARGE

main90981-20029×2iADE150,ZRE151..LHD..N200902-201004

43V 35W,HEADLAMP-DISCHARGE

81125CORD, HEADLAMP

main81125-12A90×2iZRE151..LHD..N200611-200812

HEADLAMP-DISCHARGE

81134GASKET, HEADLAMP

main90075-68007iZRE151..LHD..N200611-200812

HEADLAMP-DISCHARGE

81135UNIT ASSY, HEADLAMP, RH

main81130-12A60supersedes 81130-12A70iNDE150,ZRE151,ZZE150..LHD; NDE150,ZRE151,ZZE150..RHD200611-200812

HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)

main81130-12D80iNDE150,NRE150,ZRE151201004-201304

main81145-12A80supersedes 81130-12A60iADE150..LHD200611-200901

HEADLAMP-DISCHARGE

main81145-12E10iZRE151..4FC..N201004-201304

HEADLAMP-DISCHARGE

81144COVER, HEADLAMP, NO.1

main90075-66003×2iADE150..LHD200611-200901

HEADLAMP-DISCHARGE

81145COVER, HEADLAMP, NO.2

main90075-65006×4iADE150,ZRE151..LHD..N..(DCRL,HTWC,HTWVM); NDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200812-201004

HEADLAMP-DISCHARGE

81175UNIT ASSY, HEADLAMP, LH

main81170-12A60supersedes 81170-12A70iNDE150,ZRE151,ZZE150..LHD; NDE150,ZRE151,ZZE150..RHD200611-200812

HEAD LAMP AIMING-RH AIMING(FOR LHD CAR)

main81170-12D80iNDE150,NRE150,ZRE151201004-201304

main81185-12A80supersedes 81170-12A60iADE150..LHD200611-200901

HEADLAMP-DISCHARGE

main81185-12E10iZRE151..6F..N201004-201106

HEADLAMP-DISCHARGE

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12050iNDE150,ZRE151,ZZE150200611-200812

main81193-12120iNDE150,NRE150,ZRE151201004-201304

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12050iZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)200812

main81194-12110iNDE150,NRE150,ZRE151201004-201304

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-12050iNDE150,ZRE151,ZZE150200611-200812

main81195-12140iNDE150,NRE150,ZRE151201004-201304

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-12050iNDE150,ZRE151,ZZE150200611-200812

main81196-12140iNDE150,NRE150,ZRE151201004-201304

81197BRACKET, HEADLAMP, LOWER RH

main81197-12050iNDE150,ZRE151,ZZE150200611-200812

main81197-12100iNDE150,NRE150,ZRE151201004-201304

81198BRACKET, HEADLAMP, LWR LH

main81198-12050iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200812-201002

main81198-12110iNDE150,NRE150,ZRE151201004-201304

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iADE150200611-200901

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iNDE150,NRE150,ZRE151201004-201304

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNDE150,ZRE151,ZZE150200611-200812

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iNDE150,ZRE151,ZZE150200611-200812

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iADE150200611-200901

main85661-12020iADE150,ZRE151..LHD..N..(DCRL,HTWC,HTWVM)200812-201004

HEADLAMP-DISCHARGE

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200812-201004

main85661-12020iADE150..LHD200611-200901

HEADLAMP-DISCHARGE

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iADE150200611-200901

9007502056

main90075-02056

9010906382

main90109-06382

9015950388

main90159-50388

9017906127

main90179-06127

9018905142

main90189-05142

29 parts on this diagram · 3 diagrams in section
