ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

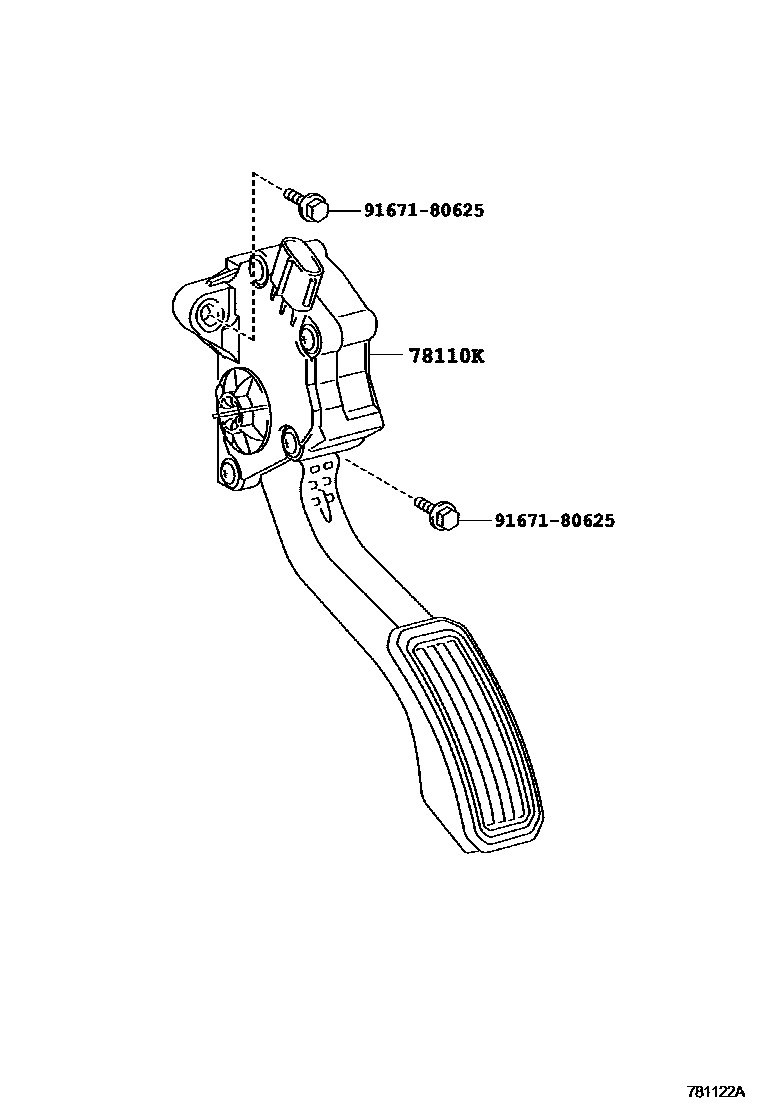

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-02020supersedes 78110-12010iNDE150,ZRE151..5FS; ZRE151..LHD..5F..N200611-200812

CRUISE CONTROL-WITH

main78110-02021iADE150,ZRE151..LHD..6F..N..(DCRL,HTWVM); NDE150,ZRE151..6FS..(DCRL,HTWVM)201001-201002

CRUISE CONTROL-WITH

main78110-02022iNDE150..6FS201105-201304

main78110-12010iNDE150,NRE150,ZRE151..LHD..(4FC,6F)..(DCR,HTWC)200812-201004

main78110-12030iADE150,NDE150,ZRE151..RHD200611-200708

main78110-12040iADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD200812

main78110-12050iNDE150,NRE150,ZRE151..4FC,6F201106-201304

9167180625

main91671-80625

2 parts on this diagram · 4 diagrams in section
