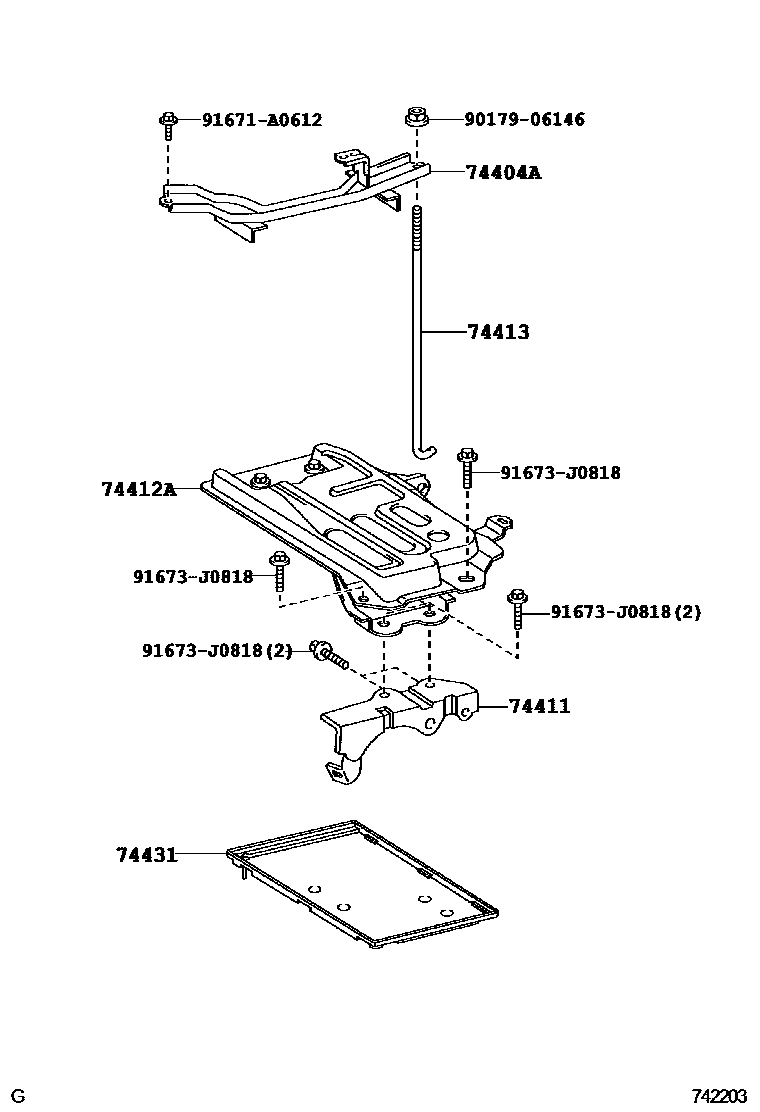

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-12450iADE150200901-201002

main74404-12460iNDE150..DCR200812

main74404-12470supersedes 74404-12480iZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM200812-201002

74411CARRIER, BATTERY

main74401-12010iNDE150,ZRE151,ZZE150200611-200812

74412ACARRIER, BATTERY, NO.2

main74410-12010iADE150200611-200901

main74410-12020iZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM200812-201002

main74410-12030iNDE150200611-200812

main74410-12050iNRE150200812-201002

STOP & START SYSTEM PACKAGE

74413BOLT, BATTERY CLAMP

main74451-58011iNDE150,NRE150,ZRE151201004-201304

74431TRAY, BATTERY

main74431-12070iADE150200901-201002

main74431-12100supersedes 74431-12120iNDE150201106-201304

main74431-12110supersedes 74431-12130iZRE151..D..HTWVM;ZRE151..LHD..N..HTWVM200812-201002

9017906146

main90179-06146

91671A0612

main91671-A0612

91673J0818

main91673-J0818

8 parts on this diagram · 1 diagram in section
