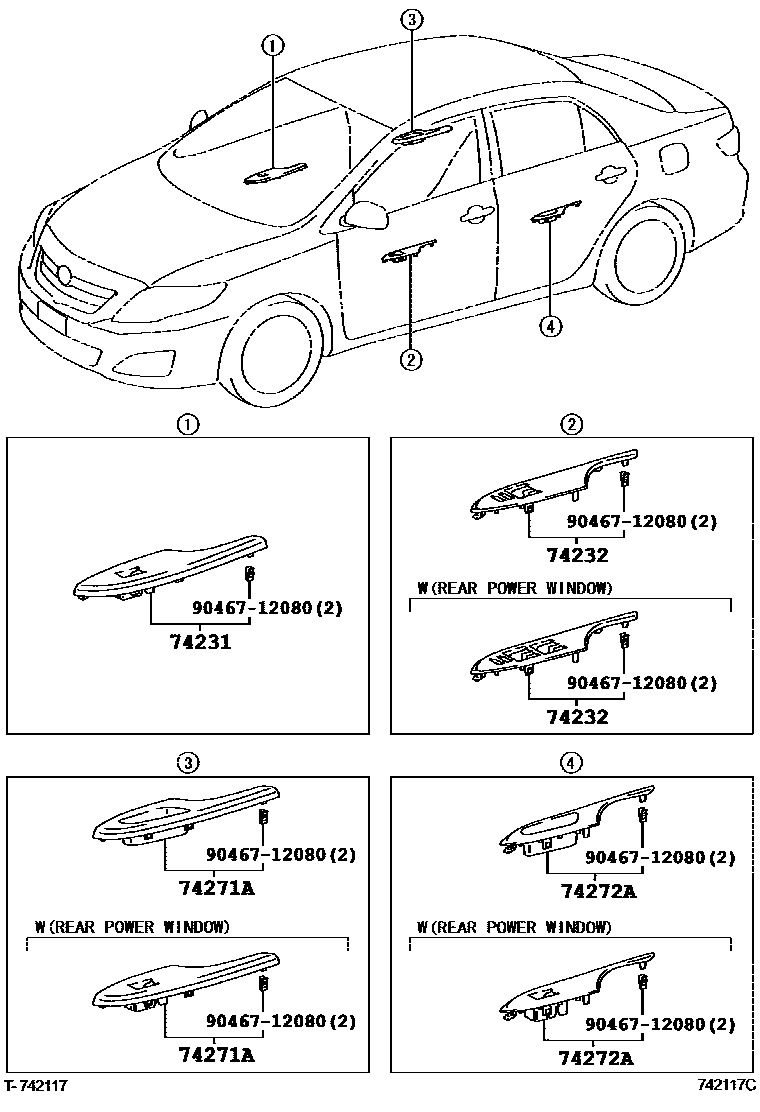

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12800-B0iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N200611-201004

SILVER,TRIM1#,4#

main74231-12830-B0iADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM)200611-201004

SILVER,TRIM1#,4#

main74231-12A10-B0iNDE150,ZRE151,ZZE150..LHD..D200611-201304

DK.GRAY,TRIM1#

main74231-12A30-B0iNDE150,NRE150,ZRE151..RHD..D200611-201004

DK.GRAY,TRIM1#

main74231-12B70-B0iNDE150,NRE150,ZRE151..N201004-201304

ORNAMENT SILVER,TRIM1#,4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12620-B0iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N200611-201004

SILVER,TRIM1#,4#

main74232-12640-B0iADE150,ZRE151,ZZE150..RHD..N..(DCR,HTWC)200611-201004

SILVER,TRIM1#,4#

main74232-12710-B0iNDE150,NRE150,ZRE151..LHD..D200611-201304

DK.GRAY,TRIM1#

main74232-12720-B0iNDE150,NRE150,ZRE151..RHD..D200611-201004

DK.GRAY,TRIM1#

main74232-12850-B0iNDE150,NRE150,ZRE151..N201004-201304

ORNAMENT SILVER,TRIM1#,4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12230-B0iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N200611-201004

SILVER,TRIM1#,4#

main74271-12300-B0iNDE150,ZRE151,ZZE150..D200611-201304

DK.GRAY,TRIM1#

main74271-12390-B0iNDE150,NRE150,ZRE151..N201004-201304

ORNAMENT SILVER,TRIM1#,4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12230-B0iADE150,ZZE150..N;NDE150,ZRE151..(5F,5FS)..N200611-201004

SILVER,TRIM1#,4#

main74272-12300-B0iNDE150,ZRE151,ZZE150..D200611-201304

DK.GRAY,TRIM1#

main74272-12400-B0iNDE150,NRE150,ZRE151..N201004-201304

ORNAMENT SILVER,TRIM1#,4#

9046712080

main90467-12080

5 parts on this diagram · 3 diagrams in section
