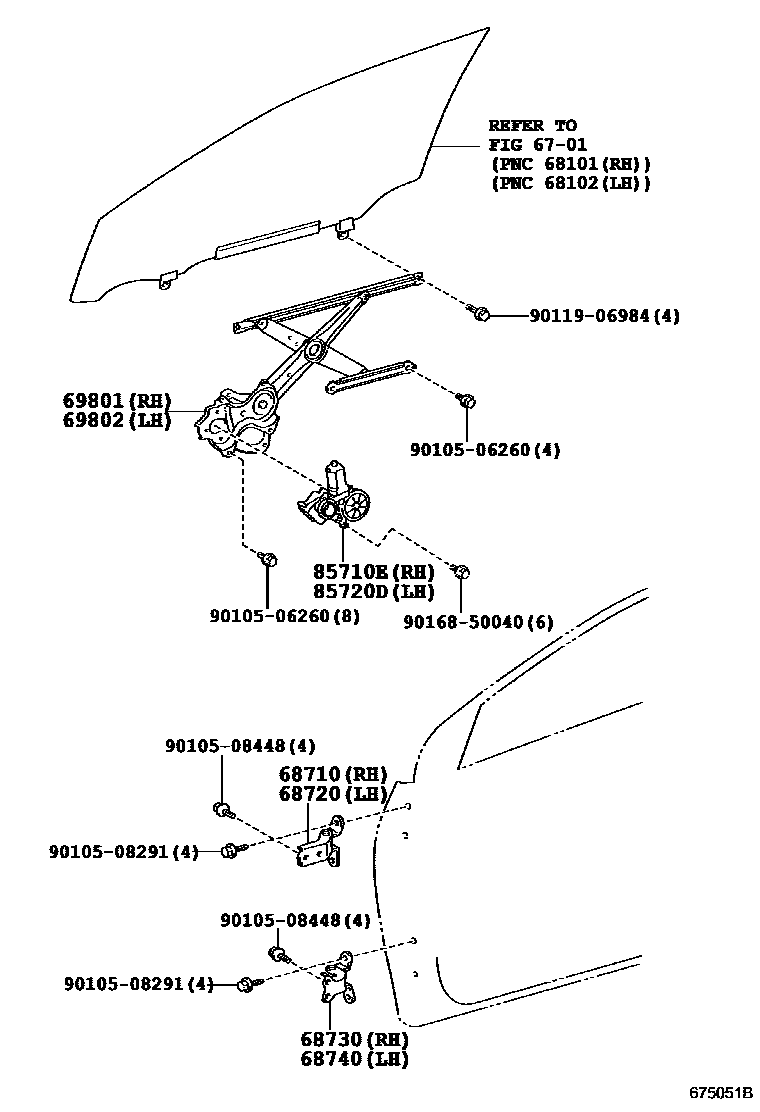

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200812-201004

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200812-201002

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iADE150200611-200901

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iNDE150,ZRE151,ZZE150200611-200812

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12220iNDE150,NRE150,ZRE151201004-201304

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12220iADE150200611-200901

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12360iADE150,NDE150,ZRE151,ZZE150..RHD200611-200709

main85710-12361iADE150..RHD200710-200901

main85710-35180iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200812-201004

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12350iADE150,NDE150,ZRE151,ZZE150..LHD200611-200709

main85720-12351iNDE150,ZRE151,ZZE150..LHD200710-200812

main85720-35140iZRE151..RHD..D;ADE150,NDE150..RHD..DCRL200812-201002

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
