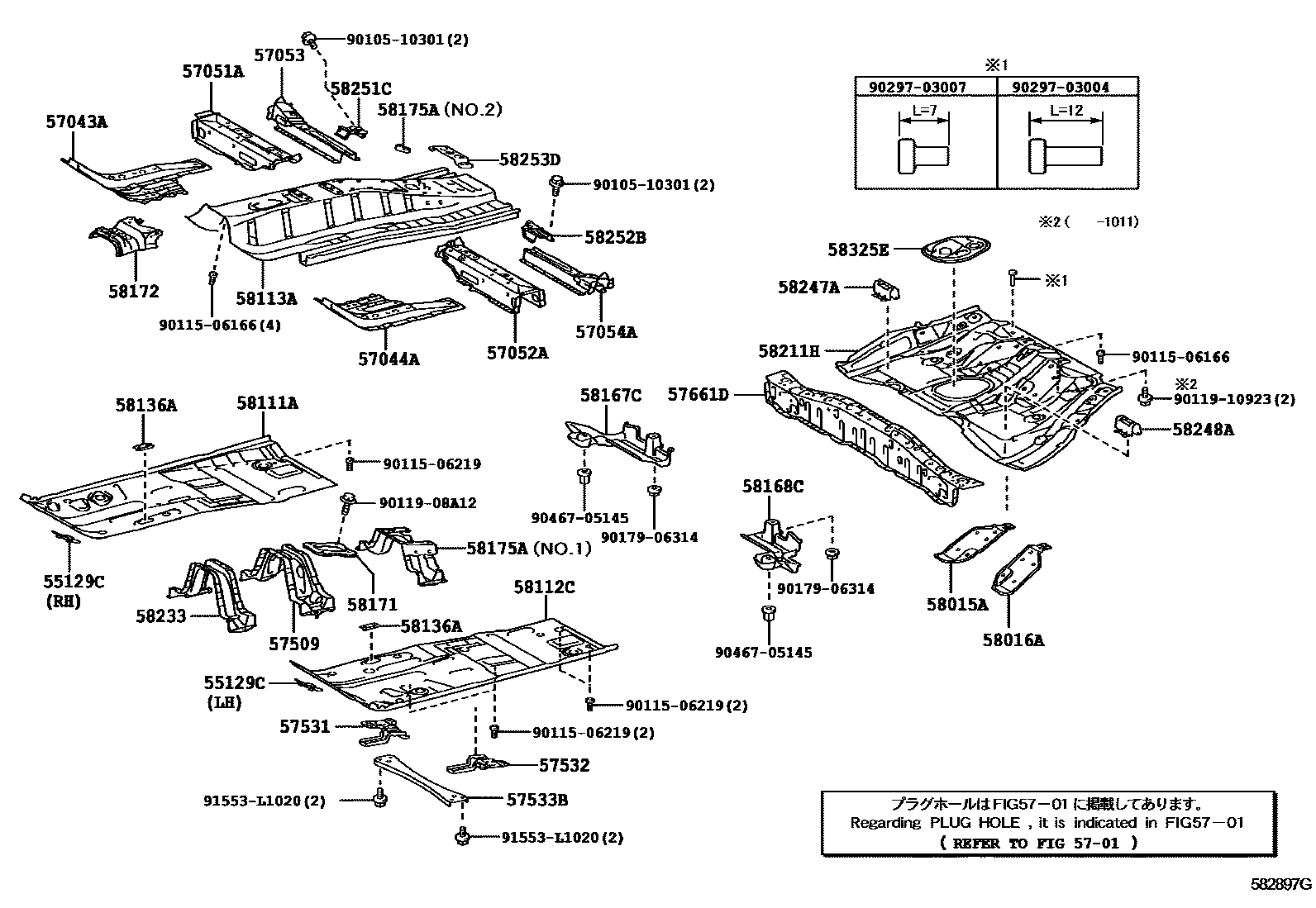

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55129CCOVER, DASH PANEL HOLE

main55129-12040iNDE150,NRE150,ZRE151201004-201304

RH

main55139-12050iNDE150,NRE150,ZRE151201004-201304

LH

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-12020iADE150200611-200901

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-12020iNDE150,ZRE151,ZZE150200611-200812

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-12060iNDE150,ZRE151,ZZE150200611-200812

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-12010iNDE150,NRE150,ZRE151201004-201304

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-12010iNDE150,ZRE151,ZZE150200611-200812

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-12010iNDE150,ZRE151,ZZE150200611-200812

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-12060iADE150,NDE150,ZRE151,ZZE150200611-200802

main57509-12061iNDE150,ZRE151,ZZE150200803-200812

main58161-12231iNDE150,NRE150,ZRE151201010-201304

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-12010iNDE150,ZRE151,ZZE150200611-200812

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-12010iNDE150,ZRE151,ZZE150200611-200812

57533BBRACE, FRONT FLOOR, CENTER

main57533-12010iNDE150,ZRE151,ZZE150200611-200812

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-12120iNDE150,ZRE151,ZZE150200611-200812

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12091iNDE150,ZRE151,ZZE150200611-200812

main58015-47041iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200903-201002

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12061iNDE150,ZRE151,ZZE150200611-200812

main58016-47031iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200903-201002

58111APAN, FRONT FLOOR, RH

main58111-12915iNDE150,ZRE151,ZZE150200611-200812

58112CPAN, FRONT FLOOR, LH

main58112-12901iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200812-201002

58113APANEL, FRONT FLOOR, CENTER

main58113-12901iNDE150,ZRE151,ZZE150..5F200611-200812

main58113-12903iNDE150..6FS..DCR200812-201004

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12040×2iNDE150,ZRE151,ZZE150200611-200812

58167CCOVER, FRONT FLOOR, CENTER RH

main58167-12010iNDE150,ZRE151,ZZE150200611-200812

58168CCOVER, FRONT FLOOR, CENTER LH

main58168-12010iNDE150,ZRE151,ZZE150200611-200812

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12120iNDE150,ZRE151,ZZE150200611-200812

58172BRACKET, COMPUTER MOUNTING, NO.3

main58173-12020iNDE150,ZRE151,ZZE150200611-200812

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main57805-12150iZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC200812

NO.1

main57805-12151iNDE150,NRE150,ZRE151201208-201304

NO.1

main58176-12020iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200812-201002

NO.2

58211HPAN, CENTER FLOOR

main58211-12933iNDE150,NRE150,ZRE151201004-201304

58233BRACKET, EXHAUST PIPE MOUNTING

main58203-12070iNDE150,ZRE151,ZZE150200611-200812

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-12090iNDE150,ZRE151,ZZE150200611-200812

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-12090iNDE150,ZRE151,ZZE150200611-200812

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-12040iNDE150,ZRE151,ZZE150200611-200812

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-12040iNDE150,ZRE151,ZZE150200611-200812

58253DBRACKET, PARKING BRAKE CABLE

main58253-12060iNDE150,ZRE151,ZZE150200611-200812

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12130iNDE150,ZRE151,ZZE150200611-200812

9010510301

main90105-10301

9011506166

main90115-06166

9011506219

main90115-06219

9011908A12

main90119-08A12

9011910923

main90119-10923

9017906314

main90179-06314

9029703004

main90297-03004

9029703007

main90297-03007

9046705145

main90467-05145

91553L1020

main91553-L1020

42 parts on this diagram · 2 diagrams in section
