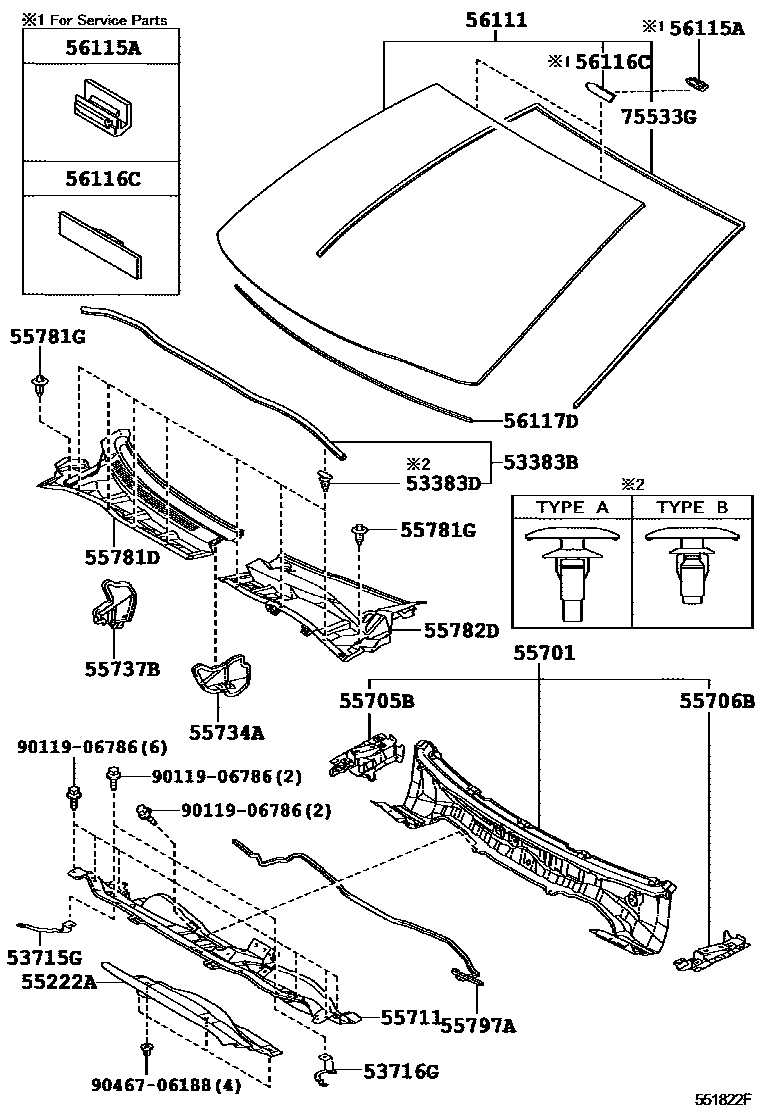

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
53715GEXTENSION, FRONT FENDER APRON, REAR RH
53716GEXTENSION, FRONT FENDER APRON, REAR LH
55222AINSULATOR, DASH PANEL, OUTER CENTER
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55711PANEL, COWL TOP, OUTER
55734APLATE, WATER GUARD, RH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55781DLOUVER, COWL TOP VENTILATOR, RH
COLD AREA SPEC
55781GCLIP, COWL TOP VENTILATOR LOUVER
BLACK
55782DLOUVER, COWL TOP VENTILATOR, LH
55797ASEAL, COWL WATER EXTRACT
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*LAM,T=4.76,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&BACK MONITOR-WITH(IN INNERMIRROR)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
L=1303
75533GMOULDING, WINDSHIELD, OUTSIDE
9011906786
main90119-06786
9046706188
main90467-06188
22 parts on this diagram · 2 diagrams in section
