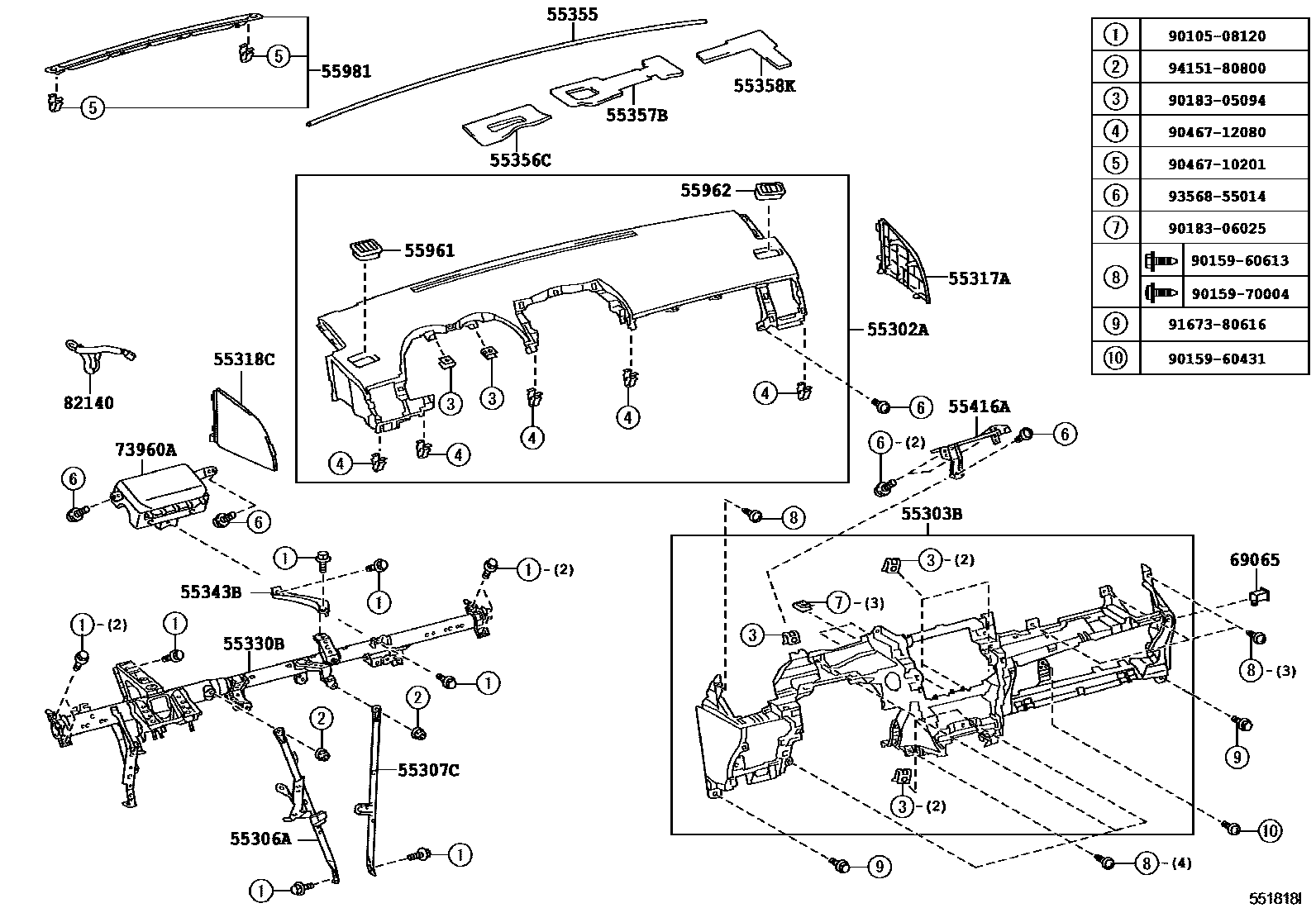

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1DRIVER SIDE 0006 1CENTER 0007 1PASSENGER SIDE 0008 1 0009 1DRIVER SIDE 0010 1CENTER 0011 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12120-B0iADE150,NDE150,ZRE151,ZZE150..LHD200611-200707

DK.GRAY,TRIM1#

main55302-12120-E0iADE150,NDE150,ZRE151,ZZE150..LHD..N200611-200707

ASH BROWN,TRIM4#

main55302-12121-B0iNDE150,NRE150,ZRE151..D; NDE150,NRE150,ZRE151..N201004-201304

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main55302-12121-E0iNDE150,ZRE151,ZZE150..LHD..N200708-200812

ASH BROWN,TRIM4#

main55302-12130-B0iADE150,NDE150,ZRE151,ZZE150..RHD200611-200804

DK.GRAY,TRIM1#

main55302-12130-E0iADE150,ZRE151,ZZE150..RHD..N200611-200804

ASH BROWN,TRIM4#

main55302-12131-B0iNDE150,ZRE151,ZZE150..RHD200805-200812

DK.GRAY,TRIM1#

main55302-12131-E0iZRE151,ZZE150..RHD..N200805-200812

ASH BROWN,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12350-B0iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD200812-201004

DK.GRAY,TRIM1#

main55303-12350-E0iADE150..LHD200611-200901

GREGE,TRIM4#

main55303-12360-B0iADE150..RHD200611-200901

DK.GRAY,TRIM1#

main55303-12360-E0iZRE151,ZZE150..RHD..N200611-200812

GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12370iNDE150,ZRE151,ZZE150..RHD200611-200812

main55306-12380iADE150,NDE150,ZRE151..LHD..(DCRL,HTWVM)200812-201002

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12320iNDE150,NRE150,ZRE151..LHD..(DCR,HTWC)200812-201004

main55307-12330iZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)200812

main55307-12420iNDE150,NRE150,ZRE151201004-201304

55317APANEL, INSTRUMENT SIDE, RH

main55317-12100-B0iNDE150,ZRE151,ZZE150..RHD200611-200812

DK.GRAY,TRIM1#

main55317-12100-E0iADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM)200812-201004

GREGE,TRIM4#

main55317-12110-B0iADE150..LHD200611-200901

DK.GRAY,TRIM1#

main55317-12110-E0iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N200812-201004

GREGE,TRIM4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-12090-B0iADE150..RHD..DCRL;NDE150,NRE150,ZRE151..RHD200812-201004

DK.GRAY,TRIM1#

main55318-12090-E0iADE150,NRE150,ZRE151..RHD..N..(DCRL,HTWC,HTWVM)200812-201004

GREGE,TRIM4#

main55318-12100-B0iADE150..LHD200611-200901

DK.GRAY,TRIM1#

main55318-12100-E0iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD..N200812-201004

GREGE,TRIM4#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12700iADE150..LHD..DCRL;NDE150,NRE150,ZRE151..LHD200812-201004

main55330-12720iNDE150..RHD..5F;ADE150,ZRE151,ZZE150..RHD..(DCR,HTWC)200611-200901

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-12070iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200812-201002

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12110iNDE150,ZRE151,ZZE150200611-200812

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12150iNDE150,ZRE151,ZZE150200611-200812

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-12090iNDE150,ZRE151,ZZE150200611-200812

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-12080iNDE150;ADE150,NRE150,ZRE151..DCRL,HTWC,HTWVM200812-201004

55416ARETAINER, METER HOOD, NO.1

main55416-12070iNDE150,ZRE151,ZZE150..LHD200611-200812

main55416-12080iZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)200812

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12230-B0iNDE150,NRE150,ZRE151..D; NDE150,NRE150,ZRE151..N201004-201304

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main55961-12230-E0iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200812-201004

ASH BROWN,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12200-B0iNDE150,NRE150,ZRE151..D; NDE150,NRE150,ZRE151..N201004-201304

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main55962-12200-E0iNDE150..N;ADE150,NRE150,ZRE151..N..(DCRL,HTWC,HTWVM)200812-201004

ASH BROWN,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12140iNDE150,NRE150,ZRE151201004-201304

main55981-12170iZRE151..RHD..N;NDE150,NRE150..RHD..(DCR,HTWC)200812

main55981-12100iADE150,NDE150,ZRE151,ZZE150..LHD..N200611-200810

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUTO AIR CONDITIONER(SINGLE MODE)

main55981-12110iADE150,ZRE151,ZZE150..RHD..N200611-200810

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUTO AIR CONDITIONER(SINGLE MODE)

main55981-12120iADE150,NDE150,ZRE151,ZZE150..LHD..N200611-200810

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main55981-12130iADE150,NDE150,ZRE151,ZZE150..LHD..N200611-200810

AUTO AIR CONDITIONER(SINGLE MODE)

main55981-12150iADE150,ZRE151,ZZE150..RHD..N200611-200810

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

main55981-12160iADE150,ZRE151,ZZE150..RHD..N200611-200810

AUTO AIR CONDITIONER(SINGLE MODE)

69065CYLINDER SUB-ASSY, AIRBAG CUT OFF SW

main69065-12460iNDE150,NRE150,ZRE151201209-201304

main69065-42010iNDE150,ZRE151,ZZE150200611-200812

main69065-74010iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM201001-201002

main69065-47040iADE150;ZRE151..LHD..N..HTWVM201001-201002

STARTING SYSTEM-PUSH BUTTON

main69065-53010supersedes 69065-42010iADE150200611-200901

STARTING SYSTEM-PUSH BUTTON

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12140iZRE151..D..HTWVM;ADE150,NDE150..DCRL;ZRE151..LHD..N..HTWVM200812-201002

82140WIRE ASSY, INSTRUMENT PANEL

main82140-1A200iZRE151..RHD..N;NDE150,NRE150,ZRE151..DCR,HTWC200812

9010508120

main90105-08120

9015960431

main90159-60431

9015960613

main90159-60613

9015970004

main90159-70004

9018305094

main90183-05094

9018306025

main90183-06025

9046710201

main90467-10201

9046712080

main90467-12080

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

30 parts on this diagram · 11 diagrams in section
