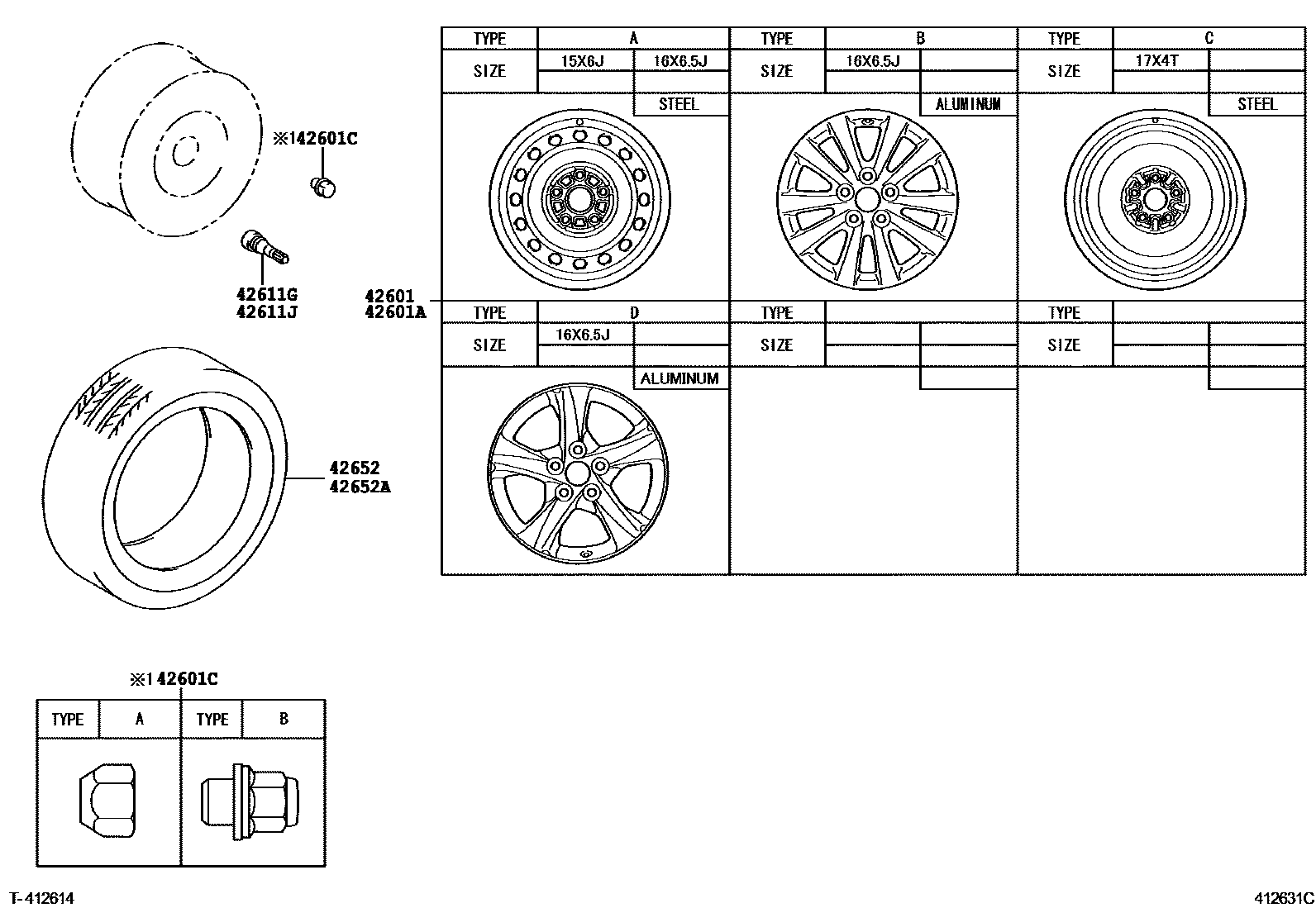

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-12A10×4supersedes 42611-12A00i200901-201002

16X6.5J, #,TYPE A:REFER ILLUST.

main42611-12A00×4i200611-200812

15X6J, #,TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES,TYPE A:REFER ILLUST.; 15X6J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES,TYPE A:REFER ILLUST.; 15X6J, #,TIRE & DISC WHEEL-205/55R16 6.5J STEEL,GENERAL COUNTRIES,TYPE A:REFER ILLUST.; 15X6J, #,TYPE A:REFER ILLUST.

main42611-12A20×4i200812-201002

16X6.5J, #,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES&SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES,TYPE B:REFER ILLUST.; 16X6.5J, #,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5J STEEL WHEEL,TYPE B:REFER ILLUST.; 16X6.5J, #,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM,TYPE B:REFER ILLUST.; 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES&SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES,TYPE B:REFER ILLUST.; 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5J STEEL WHEEL,TYPE B:REFER ILLUST.; 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-TEMPORARY(T125/70D17),TYPE B:REFER ILLUST.; 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM,TYPE B:REFER ILLUST.

main42611-12A60×4i201004-201304

16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES&SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES,TYPE D:REFER ILLUST.; 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5J STEEL WHEEL,TYPE D:REFER ILLUST.; 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-TEMPORARY(T125/70D17),TYPE D:REFER ILLUST.; 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM,TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-12A00supersedes 42611-75100i201002

15X6J, #,TYPE A:REFER ILLUST.

main42611-12B30i200812-200911

17X4T,TIRE & DISC WHEEL-195/65R15 6J STEEL&SPARE TIRE-TEMPORARY(T125/70D17),TYPE C:REFER ILLUST.; 17X4T,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-TEMPORARY(T125/70D17),TYPE C:REFER ILLUST.; 17X4T,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-TEMPORARY(T125/70D17),TYPEC:REFER ILLUST.; 17X4T,TYPE C:REFER ILLUST.

main42611-75100supersedes 42611-12A00i200912-201002

main42611-12A10i200812-201002

16X6.5J, #,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES&SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES,TYPE A:REFER ILLUST.; 16X6.5J, #,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5J STEEL WHEEL,TYPE A:REFER ILLUST.; 16X6.5J, #,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J STEEL GENERAL COUNTRIES&SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES,TYPE A:REFER ILLUST.; 16X6.5J, #,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-205/55R16 6.5J STEEL WHEEL,TYPE A:REFER ILLUST.; 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES&SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES,TYPE A:REFER ILLUST.; 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5J STEEL WHEEL,TYPE A:REFER ILLUST.; 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J STEEL GENERAL COUNTRIES&SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES,TYPE A:REFER ILLUST.; 16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-205/55R16 6.5J STEELWHEEL,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i201004-201304

RUSSIA SPEC, W(EURO 4 REGULATION)&TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES,TYPE B:REFER ILLUST.; RUSSIA SPEC, W(EURO 4 REGULATION)&TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM,TYPE B:REFER ILLUST.; RUSSIA SPEC, W/O(EURO 4 REGULATION)&TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERALCOUNTRIES,TYPE B:REFER ILLUST.; RUSSIA SPEC, W/O(EURO 4 REGULATION)&TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM,TYPEB:REFER ILLUST.; TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES,TYPE B:REFER ILLUST.; TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM,TYPE B:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i200812-201002

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200812

42652TIRE

main42652-12B30×4supersedes 42652-12B60i200611-200812

195/65R15,*D/L; 195/65R15,*D/L,TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES

main42652-12B50×4supersedes 42652-12B70i200701-200812

195/65R15,*D/L,FINLAND SPEC; 195/65R15,*D/L,FINLAND SPEC&SPARE TIRE-195/65R15 6J STEEL WHEEL

main42652-12B60×4i200611-200812

195/65R15,*Y/H; 195/65R15,*Y/H,TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES

main42652-12B70×4i200611-200812

195/65R15,*Y/H; 195/65R15,*Y/H,TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES

main42652-12B81×4supersedes 42652-12B60i200611-200812

205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM; 205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5JSTEEL WHEEL; 205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J STEEL; 205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-205/55R16 6.5J STEEL WHEEL

main42652-12B91×4supersedes 42652-12F90i200701-200901

205/55R16,*D/L,FINLAND SPEC; 205/55R16,*D/L,FINLAND SPEC&SPARE TIRE-205/55R16 6.5J STEEL WHEEL; 205/55R16,*D/L,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM; 205/55R16,*D/L,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5J STEEL WHEEL

main42652-12C00×4supersedes 42652-12B60i200611-200812

205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM; 205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5JSTEEL WHEEL; 205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL; 205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-205/55R16 6.5J STEEL WHEEL

main42652-12C10×4supersedes 42652-12B70i200701-200812

205/55R16,*Y/H,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM; 205/55R16,*Y/H,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5J STEEL WHEEL; 205/55R16,*Y/H,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J STEEL; 205/55R16,*Y/H,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-205/55R16 6.5J STEEL WHEEL

main42652-12C40×4supersedes 42652-12B60i200611-200812

195/65R15,GOODYEAR,TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES&SPARE TIRE-195/65R15 6J STEEL,GENERAL COUNTRIES

main42652-12C50×4supersedes 42652-12B70i200701-200812

195/65R15,GOODYEAR,FINLAND SPEC&TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES&SPARE TIRE-195/65R15 6J STEEL,GENERAL COUNTRIES

main42652-12C60×4supersedes 42652-12B60i200611-200812

195/65R15,*Y/H,TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES&SPARE TIRE-195/65R15 6J STEEL,GENERAL COUNTRIES

main42652-12C70×4supersedes 42652-12B70i200701-200812

195/65R15,*Y/H,FINLAND SPEC&TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES&SPARE TIRE-195/65R15 6J STEEL,GENERAL COUNTRIES

main42652-12D11×4supersedes 42652-12B60i200611-200812

205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES&SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES; 205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J STEEL,GENERAL COUNTRIES&SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES

main42652-12D21×4supersedes 42652-12F90i200611-200901

main42652-12D30×4supersedes 42652-12F80i200611-200901

205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES&SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES; 205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J STEEL,GENERAL COUNTRIES&SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES

main42652-12D40×4supersedes 42652-12B70i200701-200812

205/55R16,*Y/H,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES&SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES; 205/55R16,*Y/H,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J STEEL,GENERAL COUNTRIES&SPARE TIRE-205/55R16 6.5J STEEL,GENERAL COUNTRIES

main42652-12F80×4supersedes 42652-12B60i200611-200812

205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM; 205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5JSTEEL WHEEL; 205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J STEEL; 205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-205/55R16 6.5J STEEL WHEEL

main42652-12F90×4i200701-200901

205/55R16,*B/S,FINLAND SPEC; 205/55R16,*B/S,FINLAND SPEC&SPARE TIRE-205/55R16 6.5J STEEL WHEEL; 205/55R16,*B/S,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM; 205/55R16,*B/S,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5J STEEL WHEEL

42652ATIRE (FOR SPARE)

main42652-05250i200701-200812

T125/70D17,MICHELIN,FINLAND SPEC; T125/70D17,MICHELIN,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM; T125/70D17,MICHELIN,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J STEEL

main42652-12B30i200611-200812

195/65R15,*D/L,SPARE TIRE-195/65R15 6J STEEL WHEEL

main42652-12B50i200701-200812

195/65R15,*D/L,FINLAND SPEC&SPARE TIRE-195/65R15 6J STEEL WHEEL

main42652-12B60i200611-200812

195/65R15,*Y/H,SPARE TIRE-195/65R15 6J STEEL WHEEL

main42652-12B70i200701-200812

195/65R15,*Y/H,FINLAND SPEC&SPARE TIRE-195/65R15 6J STEEL WHEEL

main42652-12B81i200611-200812

205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5JSTEEL WHEEL; 205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-205/55R16 6.5J STEEL WHEEL

main42652-12B91i200611-200812

205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5JSTEEL WHEEL; 205/55R16,*D/L,TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-205/55R16 6.5J STEEL WHEEL

main42652-12C00i200611-200901

205/55R16,*Y/H,SPARE TIRE-205/55R16 6.5J STEEL WHEEL; 205/55R16,*Y/H,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5JSTEEL WHEEL

main42652-12C10i200701-200812

205/55R16,*Y/H,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5J STEEL WHEEL; 205/55R16,*Y/H,FINLAND SPEC&TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-205/55R16 6.5J STEEL WHEEL

main42652-12C40i200611-200812

195/65R15,GOODYEAR,TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES&SPARE TIRE-195/65R15 6J STEEL,GENERAL COUNTRIES

main42652-12C50i200611-200812

195/65R15,GOODYEAR,TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES&SPARE TIRE-195/65R15 6J STEEL,GENERAL COUNTRIES

main42652-12C60i200611-200812

195/65R15,*Y/H,TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES&SPARE TIRE-195/65R15 6J STEEL,GENERAL COUNTRIES

main42652-12C70i200611-200812

195/65R15,*Y/H,TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES&SPARE TIRE-195/65R15 6J STEEL,GENERAL COUNTRIES

main42652-12D11i200611-200901

main42652-12D21i200611-200901

main42652-12D30i200611-200901

main42652-12D40i200611-200901

main42652-12F80i200611-200901

205/55R16,*B/S,SPARE TIRE-205/55R16 6.5J STEEL WHEEL; 205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5JSTEEL WHEEL

main42652-12F90i200611-200901

205/55R16,*B/S,SPARE TIRE-205/55R16 6.5J STEEL WHEEL; 205/55R16,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J ALUMINUM&SPARE TIRE-205/55R16 6.5JSTEEL WHEEL

main42652-2B460i200611-200812

T125/70D17,*B/S; T125/70D17,*B/S,TIRE & DISC WHEEL-195/65R15 6J STEEL,GENERAL COUNTRIES; T125/70D17,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,GENERAL COUNTRIES; T125/70D17,*B/S,TIRE & DISC WHEEL-205/55R16 6.5J STEEL,GENERAL COUNTRIES

7 parts on this diagram · 3 diagrams in section
