VENTURI

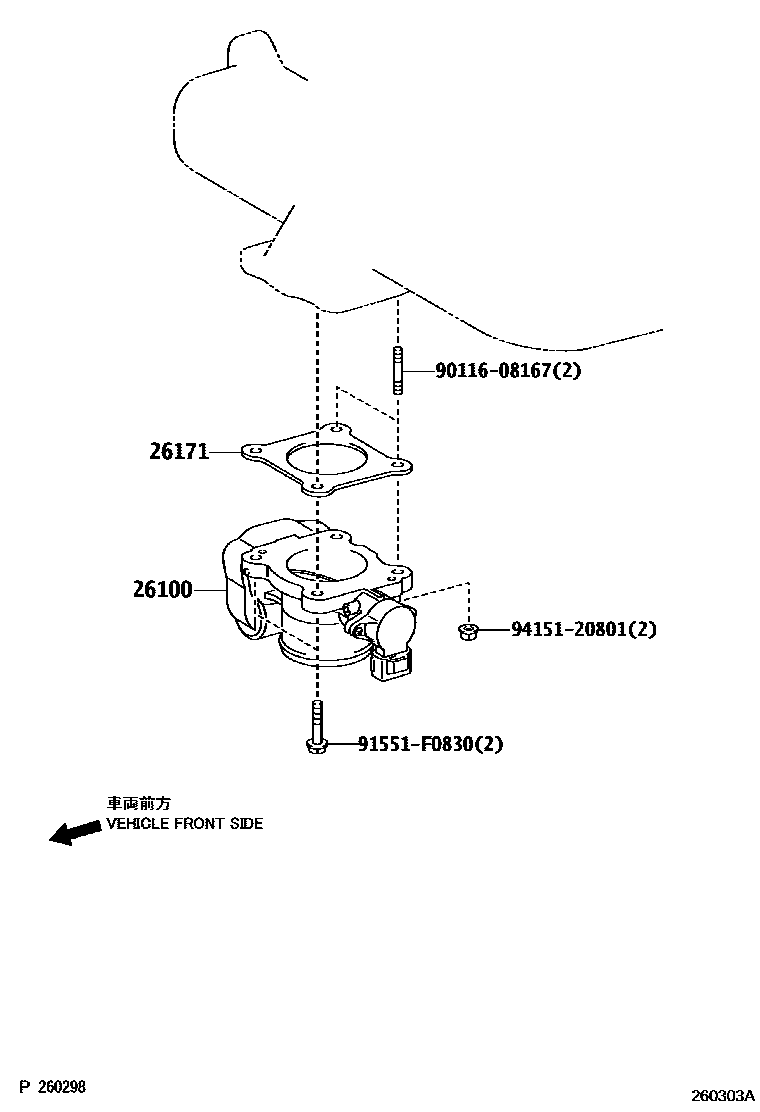

Parts diagram

26100VENTURI ASSY

main26100-0R011i200802-200901

(L)

main26100-0R020i200901-201002

main26100-26010i200611-200802

main26100-26020i200802-200901

(J)

26171GASKET, VENTURI

main26171-0R010i200901-201002

main26171-26010i200611-200901

main26171-33030i200812-201002

main26171-33040i200611-200812

9011608167

main90116-08167

91551F0830

main91551-F0830

9415120801

main94151-20801

5 parts on this diagram · 5 diagrams in section
