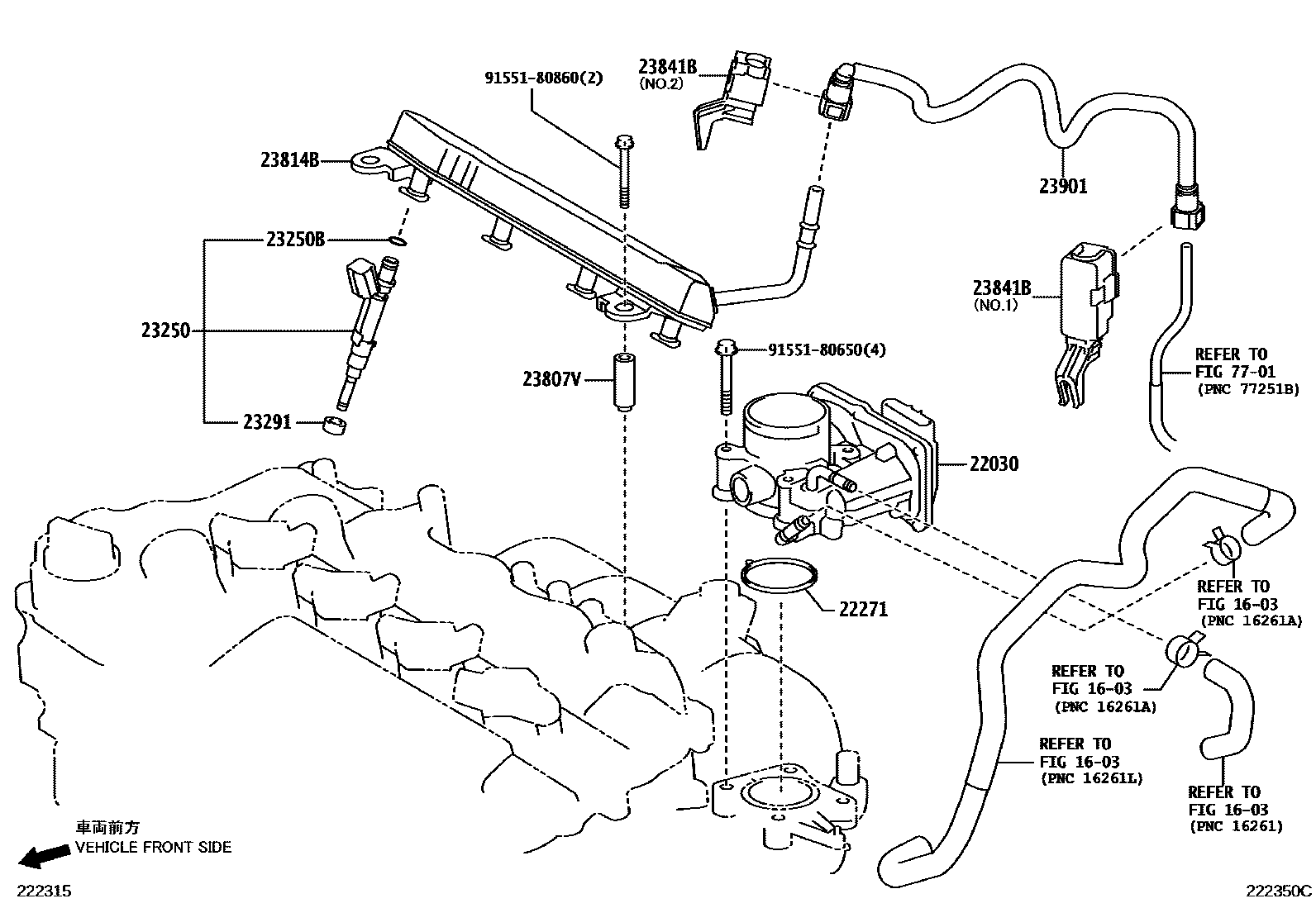

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
(L)
(L)
(J)
23250INJECTOR ASSY, FUEL
BOSCH
DENSO
23250BRING, O(FOR FUEL INJECTOR)
23291INSULATOR, INJECTOR VIBRATION
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
NO.1
NO.2
NO.2
NO.1
23901TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
9155180650
main91551-80650
9155180860
main91551-80860
14 parts on this diagram · 4 diagrams in section
