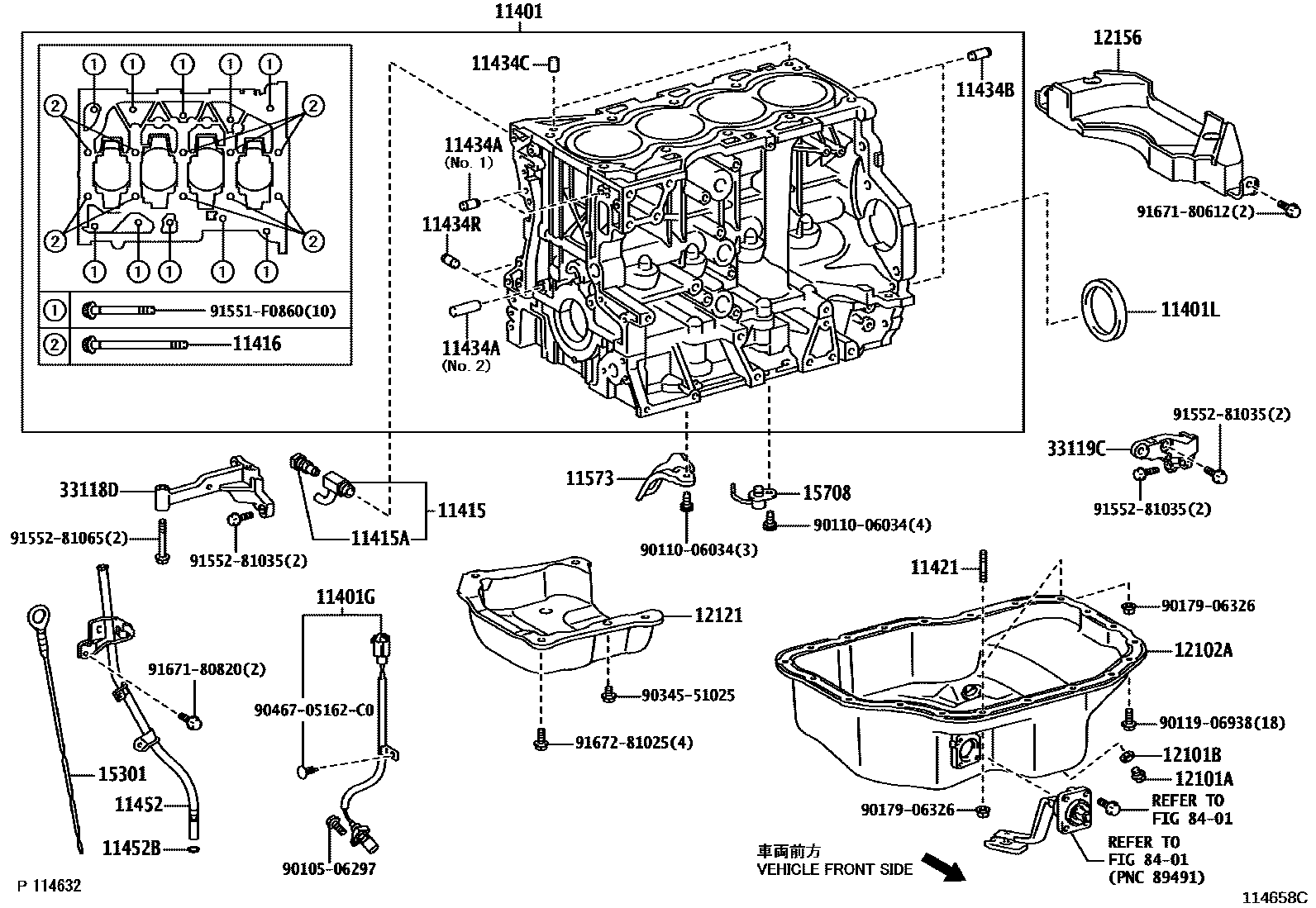

11401BLOCK SUB-ASSY, CYLINDER

main11401-39716i200611-200812

main11410-29145i200611-200807

main11410-29146i200807-200812

main11410-29355i200611-200801

main11410-29395i200801-200808

main11410-29405i200808-200901

main11410-39015i200611-200801

main11410-39045i200812-200904

main11410-39047i200904

main11410-39048i201004-201008

main11410-39085i201004-201212

main11410-39155i201212-201304

main11410-49015i200812-200909

main11410-49016i200909-201006

main11410-49017i201006-201304

11401GSENSOR, CRANK POSITION

main90919-05063i200611-200812

main90919-05069i200901-201002

main90919-05070i200611-200812

main90919-05074i201110-201304

11401LSEAL, ENGINE REAR OIL

main90311-75016i200611-200812

main90311-75017i200812

main90311-75020i201301-201304

main90311-76001i200611-200812

main90311-76002i200812

main90311-78003i201004-201304

main90311-90009i200901-201002

(J)

main90311-W0006i200611-200807

main90311-W0010i200901-201002

(L)

main90311-99012supersedes 90311-78003i200812-201002

STOP & START SYSTEM PACKAGE

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i200611-200704

main90910-09107i200611-200812

main90910-09129i200611-200812

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i200611-200812

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02147×10i200611-200812

main90910-02154×10i201004-201304

main90910-02157×10i200901-201002

main90910-02163×10i200812-201002

main90910-02175×10i201004-201304

main91511-K0840×10i200611-200812

11421BOLT, STUD(FOR OIL PAN)

main90116-06134×2i200611-200901

main90126-06010×2i200611-200812

main90126-06015×2i200812-201004

main90126-06028×2i201006-201304

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i200812

L=12,OD=4.0

main90250-08120×2i200901-201002

L=18,OD=8,NO.1

main90250-10030i200901-201002

L=36,OD=10,NO.2

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i200812

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-04097×2i200812

L=12,OD=4.0

main90250-08074×2i200611-200901

L=15,OD=8

main90250-08120×2i200812-201002

L=18,OD=8

11434RPIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)

main90250-08120×2i200611-200901

11452GUIDE, OIL LEVEL GAGE

main11409-47010i200812-201004

main11409-47011i201005-201207

main11409-47012i201207-201304

main11452-22030i200611-200808

main11452-22031i200808-200812

main11452-26030i200901-201002

main11452-26050i200611-200901

main11452-33040i200611-200812

main11452-37010i200611-200812

main11452-37011i201101-201304

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i200611-200812

main96741-19010i201004-201304

11573PLATE, OIL REFLECTOR

main11573-26010×3i200611-200901

12101PAN SUB-ASSY, OIL

main12101-22024i200611-200812

main12101-33030i200611-200812

main12101-33040i201004-201304

main12101-47061i200812

main12101-47120i201102-201203

main12101-47121i201203-201304

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i200812

main90341-12032i200812

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i200901-201002

12102APAN SUB-ASSY, OIL, NO.2

main12102-0R010i200611-200901

main12102-0R020i200901-200908

main12102-0R021i200908-201002

main12102-21010i200611-200812

main12102-33010i200812-201002

main12102-37010i200812-201002

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-26020i200611-200901

main12121-47011i200812-201004

main12121-B1060i201102-201304

12156INSULATOR, OIL PAN

main12156-0R010i200611-200901

main12156-0R020i200901-201002

15301GAGE SUB-ASSY, OIL LEVEL

main15301-22050i200611-200812

main15301-26060i200611-200901

main15301-26080i200901-201002

main15301-33020i200611-200812

main15301-33050i200812-201004

main15301-37010i200611-200812

main15301-37030i201208-201304

main15301-47020i200812-201004

main15301-47050i201005-201304

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0R010×4i200901-201002

main15708-33010×4i200611-200812

main15708-33020×4i200812-201004

main15708-37010×4i200611-200809

main15708-37011×4i201004-201211

main15708-37012×4i201211-201304

main15708-47010×4i200812-200902

main15708-47030×4i201004-201104

main15708-47040×4i201104-201203

33118DPLATE, STIFFENER, RH

main33118-05010i200611-200901

33119CPLATE, STIFFENER, LH

main33119-05010i200611-200901

main33119-42011i200901-201002

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506297

main90105-06297

9011006034

main90110-06034

9011906938

main90119-06938

9017906326

main90179-06326

9034551025

main90345-51025

9046705162C0

main90467-05162C0

91551F0860

main91551-F0860

9155281035

main91552-81035

9155281065

main91552-81065

9167180612

main91671-80612

9167180820

main91671-80820

9167281025

main91672-81025
