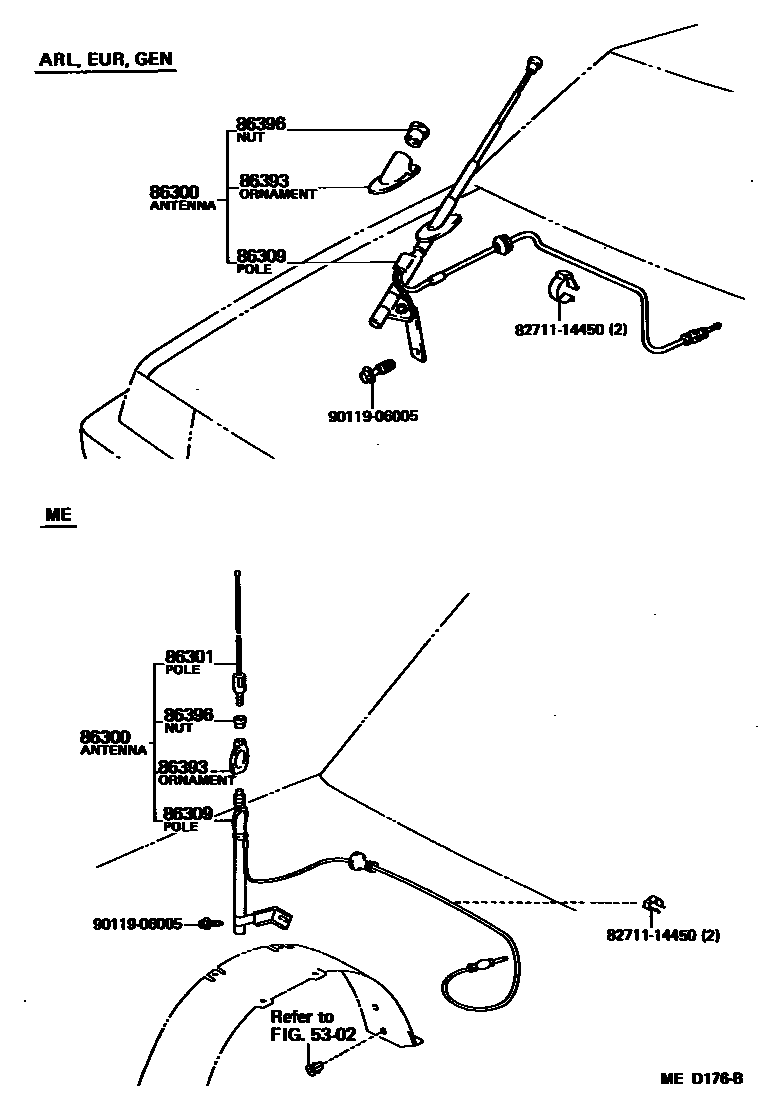

ANTENNA

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

86300ANTENNA ASSY, W/HOLDER

main86300-12260iAE86..RHD..(ARL,GEN)198305-198704

main86300-12270iAE86..LHD..GEN198305-198704

main86300-12280iAE86..ME198308-198707

86301POLE SUB-ASSY, ANTENNA

main86309-16041iAE86..ME198308-198707

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-12090iAE86..RHD..(ARL,GEN)198305-198704

main86309-12100iAE86..LHD..GEN198305-198704

main86309-12110iAE86..ME198308-198707

86393ORNAMENT, ANTENNA

main86392-12050iAE86..RHD..(ARL,GEN)198305-198704

main86392-12060iAE86..LHD;AE86..RHD..EUG198305-198707

86396NUT, ANTENNA

main86396-12020iAE86198305-198707

8271114450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14450

9011906005

main90119-06005

8 parts on this diagram · 1 diagram in section
