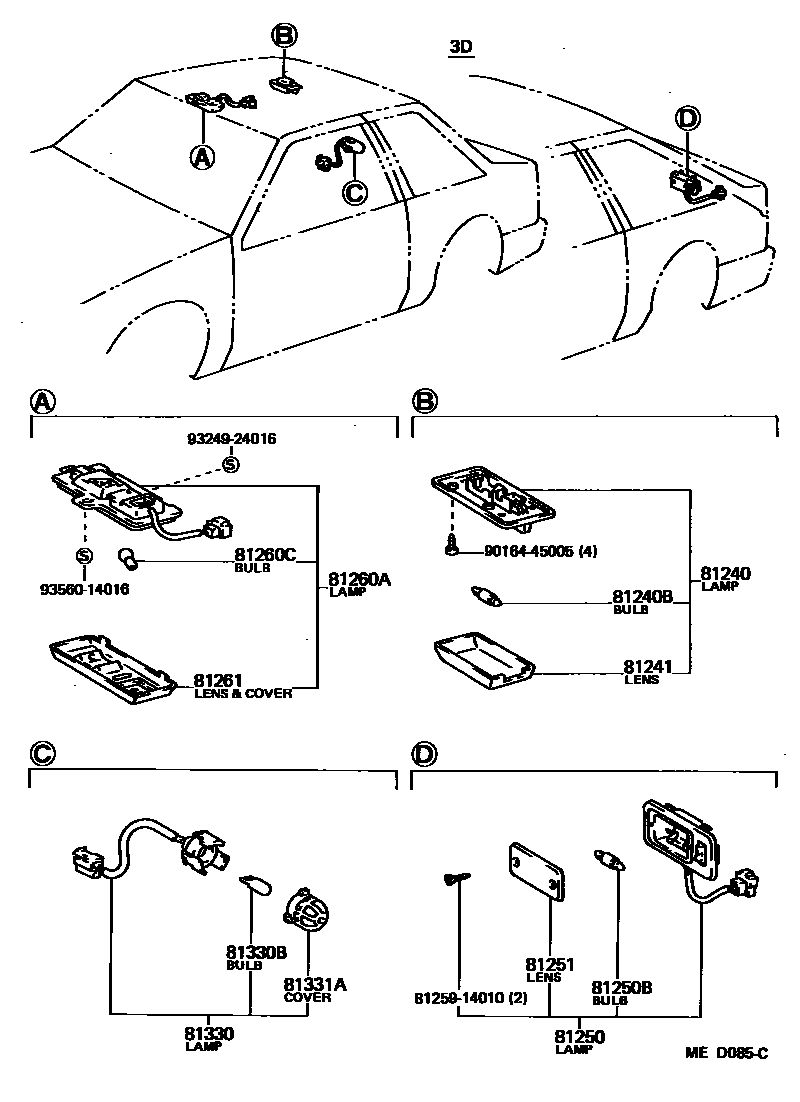

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-16010-18iAE86198305-198411

IVORY,IVORY

main81240-22080-08iAE86198411-198606

IVORY,IVORY

main81240-22081-08iAE86198606-198707

IVORY,IVORY

81240BBULB, ROOM LAMP, NO.1

main99132-12100iAE86198305-198707

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-16010iAE86198305-198411

main81241-20060iAE86198411-198707

81250LAMP ASSY, ROOM, NO.2

main81250-12020-01iAE86..3D198505-198707

BLACK,BLACK,TRIM2#

main81250-12020-02iAE86..3D198305-198505

MAROON,RED/MAROON,TRIM3#

main81250-12020-12iAE86..ME198505-198707

MAROON,MAROON,TRIM3#

main81250-12020-14iAE86..3D198305-198707

BLUE,BLUE,TRIM8#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAE86..3D198305-198707

12V 5W,12V 5W

81251LENS, ROOM LAMP, NO.2

main81231-14010iAE86..3D198305-198707

81260ALAMP ASSY, MAP

main81260-16040-08iAE86198305-198707

IVORY,IVORY

81260CBULB(FOR MAP LAMP)

main90981-12014iAE86198305-198707

12V 10W,12V 10W

81261LENS AND COVER, MAP LAMP

main81261-20061-18iAE86198305-198707

IVORY,IVORY

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22030iAE86..2D..EUR198308-198704

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iAE86..2D..EUR198308-198704

12V 5W,12V 5W

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-22030iAE86..2D..EUR198308-198704

8125914010

main81259-14010

9016445005

main90164-45005

9324924016

main93249-24016

9356014016

main93560-14016

16 parts on this diagram · 1 diagram in section
