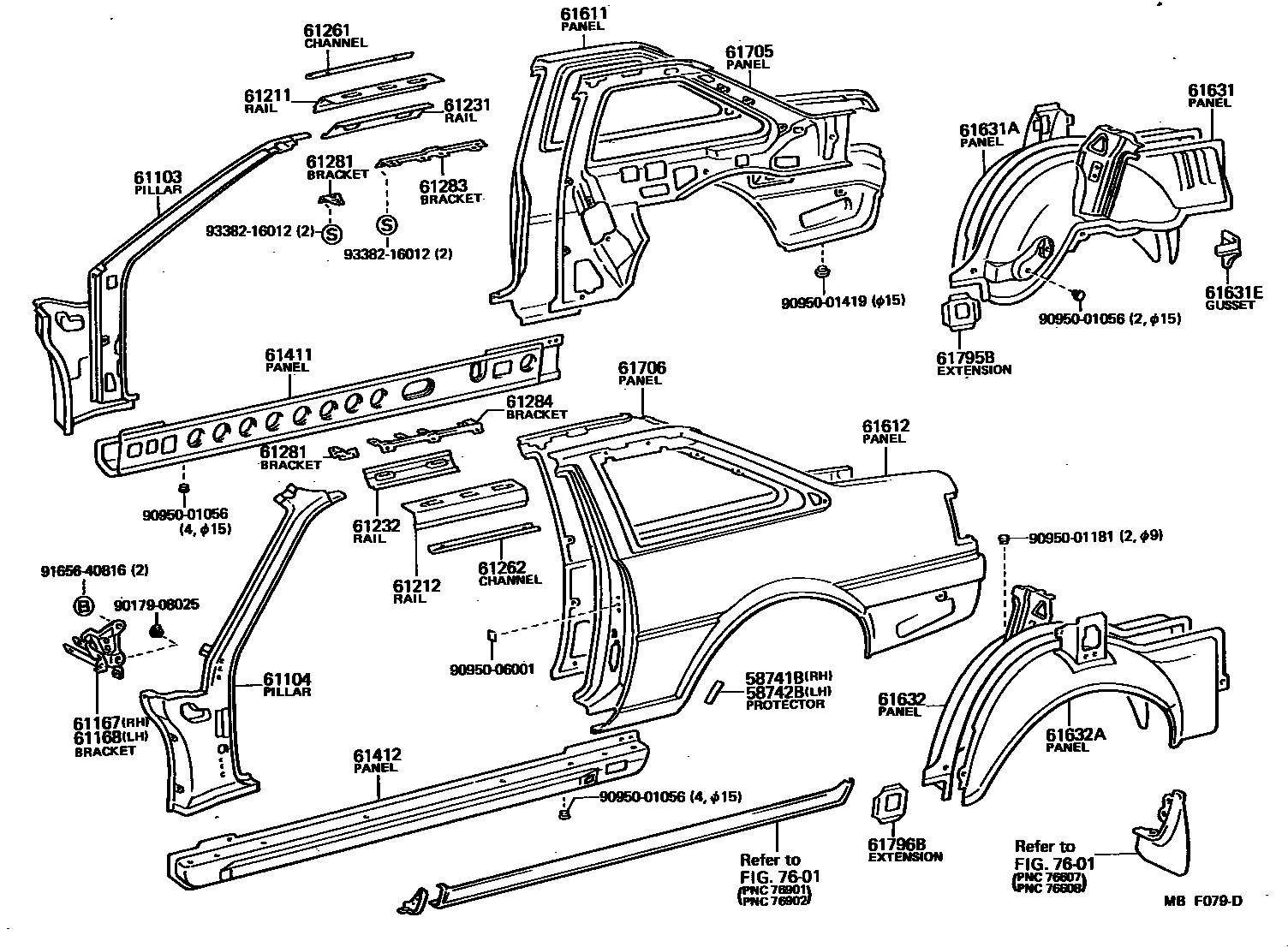

SIDE MEMBER

0001 1 0002 1

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12010iAE86198305-198707

58742BPROTECTOR, QUARTER PANEL, LH

main58742-12010iAE86198305-198707

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-12350iAE86..LHD..(EUR,GEN)198305-198505

main61021-12351iAE86..LHD..(EUR,GEN)198505-198704

main61021-12360iAE86..ME198308-198505

main61021-12361iAE86..ME198505-198707

main61021-12370iAE86..RHD..EUG198308-198505

main61021-12371iAE86..RHD..EUG198505-198704

main61021-12560iAE86..RHD..(ARL,GEN)198305-198505

main61021-12561iAE86..RHD..GEN198505-198704

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-12410iAE86..LHD..(EUR,GEN)198305-198505

main61022-12411iAE86..LHD..(EUR,GEN)198505-198704

main61022-12420iAE86..RHD..EUG198308-198505

main61022-12421iAE86..RHD..EUG198505-198704

main61022-12430iAE86..ME198308-198505

main61022-12431iAE86..ME198505-198604

main61022-12432iAE86..ME198604-198707

main61022-12620iAE86..RHD..(ARL,GEN)198305-198505

main61022-12621iAE86..RHD..GEN198505-198704

61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-12020iAE86..LHD198305-198707

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-12020iAE86..RHD198305-198704

61211RAIL, ROOF SIDE, OUTER RH

main61211-12180iAE86198305-198707

61212RAIL, ROOF SIDE, OUTER LH

main61212-12180iAE86198305-198707

61231RAIL, ROOF SIDE, INNER RH

main61231-12320iAE86198305-198707

61232RAIL, ROOF SIDE, INNER LH

main61232-12220iAE86198305-198707

61261CHANNEL, ROOF DRIP, RH

main61265-12050iAE86198305-198707

61262CHANNEL, ROOF DRIP, LH

main61266-12050iAE86198305-198707

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-12010×2iAE86198305-198707

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-12010iAE86198305-198707

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-12010iAE86198305-198707

61411PANEL, ROCKER, OUTER RH

main61401-12180iAE86198305-198707

main61401-12241iAE86..GT..(EUR,GEN)198505-198508

W/SIDE MUDGUARD

main61401-12250iAE86..GT..GEN;AE86..ARL,EUR,ME198408-198505

W/SIDE MUDGUARD

main61401-12251iAE86..GT198508-198707

W/SIDE MUDGUARD

61412PANEL, ROCKER, OUTER LH

main61402-12180iAE86198305-198707

main61402-12241iAE86..GT..(EUR,GEN)198505-198508

W/SIDE MUDGUARD

main61402-12250iAE86..GT..GEN;AE86..ARL,EUR,ME198408-198505

W/SIDE MUDGUARD

main61402-12251iAE86..ME198505-198508

W/SIDE MUDGUARD

61611PANEL, QUARTER, RH

main61601-1A700iAE86..ARL198305-198505

main61601-1A710iAE86..3D..EUR198308-198505

main61601-1A720iAE86..3D..GEN198505-198704

W/TRUNK OPENER

main61601-1A730iAE86..2D..GEN198305-198704

W/TRUNK OPENER

main61601-1A750iAE86..2D..EUG198308-198505

main61601-1E040iAE86..2D..GEN198305-198608

W/O TRUNK OPENER

main61601-1E050iAE86..ME198308-198707

main61601-1E080iAE86..3D..SR..GEN198305-198608

main61601-1E290iAE86..ME198505-198707

W/ARCH MOULDING

main61601-1E300iAE86..3D..EUR198505-198704

main61601-1E350iAE86..2D..EUR198505-198704

61612PANEL, QUARTER, LH

main61602-1A290iAE86..ARL198305-198308

main61602-1A300iAE86..3D..(ARL,EUR)198308-198401

main61602-1A310iAE86..3D..GEN198305-198704

main61602-1A330iAE86..2D..EUG198308-198505

main61602-1A350iAE86..2D..GEN198305-198704

main61602-1A540iAE86..ME198505-198508

*47,W/ARCH MOULDING

main61602-1A630iAE86..ME198308-198707

main61602-1A790iAE86..ARL198401-198505

main61602-1E030iAE86..3D..EUR198505-198704

main61602-1E050iAE86..ME198505-198707

W/ARCH MOULDING

main61602-1E100iAE86..2D..EUR198505-198704

main61602-1E110iAE86..ME198410-198508

*47

61631PANEL, QUARTER WHEEL HOUSE, RH

main61603-12905iAE86..3D198305-198707

main61603-12907iAE86..2D..EUG198308-198505

main61603-12908iAE86..2D..GEN198305-198505

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12907iAE86..ARL,GEN,ME198305-198503

main61631-12908iAE86..EUR198308-198505

main61631-12909iAE86..ME198505-198508

W/ARCH MOULDING

main61631-12910iAE86..EUR,ME198508-198707

W/ARCH MOULDING

61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-12080iAE86..2D198305-198704

61632PANEL, QUARTER WHEEL HOUSE, LH

main61604-12905iAE86..3D198305-198707

main61604-12908iAE86..2D198305-198704

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12901iAE86..ARL,GEN,ME198305-198503

main61632-12902iAE86..ARL,GEN,ME198503-198707

main61632-12903iAE86..ME198505-198508

W/ARCH MOULDING

main61632-12904iAE86..EUR198505-198508

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-12620iAE86..3D..GEN198305-198704

main61705-12640iAE86..2D..GEN198305-198704

main61705-12650iAE86..2D..EUR198308-198704

main61705-12720iAE86..3D..(ARL,EUR,ME)198305-198707

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-12690iAE86..3D..GEN198305-198402

main61706-12700iAE86..2D..GEN198305-198704

main61706-12710iAE86..2D..EUR198308-198704

main61706-12780iAE86..3D..(ARL,EUR,ME)198305-198402

main61706-12948iAE86..3D..GEN198402-198704

main61706-12950iAE86..3D..(ARL,EUR,ME)198402-198707

61795BEXTENSION, QUARTER WHEEL HOUSE, RH

main61795-12020iAE86198305-198707

61796BEXTENSION, QUARTER WHEEL HOUSE, LH

main61796-12020iAE86198305-198707

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9017908025

main90179-08025

9095001056

main90950-01056

9095001181

main90950-01181

9095001419

main90950-01419

9095006001

main90950-06001

9165640816

main91656-40816

9338216012

main93382-16012

36 parts on this diagram · 2 diagrams in section
