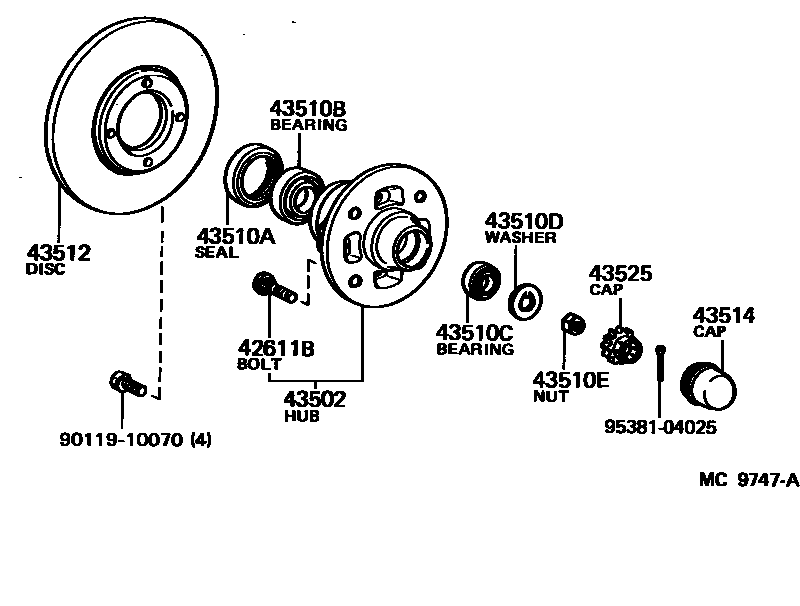

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02048×8iAE86198305-198707

43502HUB SUB-ASSY, FRONT AXLE

main43502-12070×2iAE86198305-198707

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-41123×2iAE86198305-198707

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-29068×2iAE86198305-198707

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017×2iAE86198305-198707

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010×2iAE86198305-198707

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137×2iAE86198305-198707

43512DISC, FRONT

main43512-12130×2iAE86..EUR,ME;AE86..GT..GEN198308-198707

main43512-12140×2iAE86..SR..(ARL,GEN)198305-198704

43514CAP, FRONT HUB GREASE

main43514-20010×2iAE86198305-198707

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011×2iAE86198305-198707

9011910070

main90119-10070

9538104025

main95381-04025

12 parts on this diagram · 1 diagram in section
