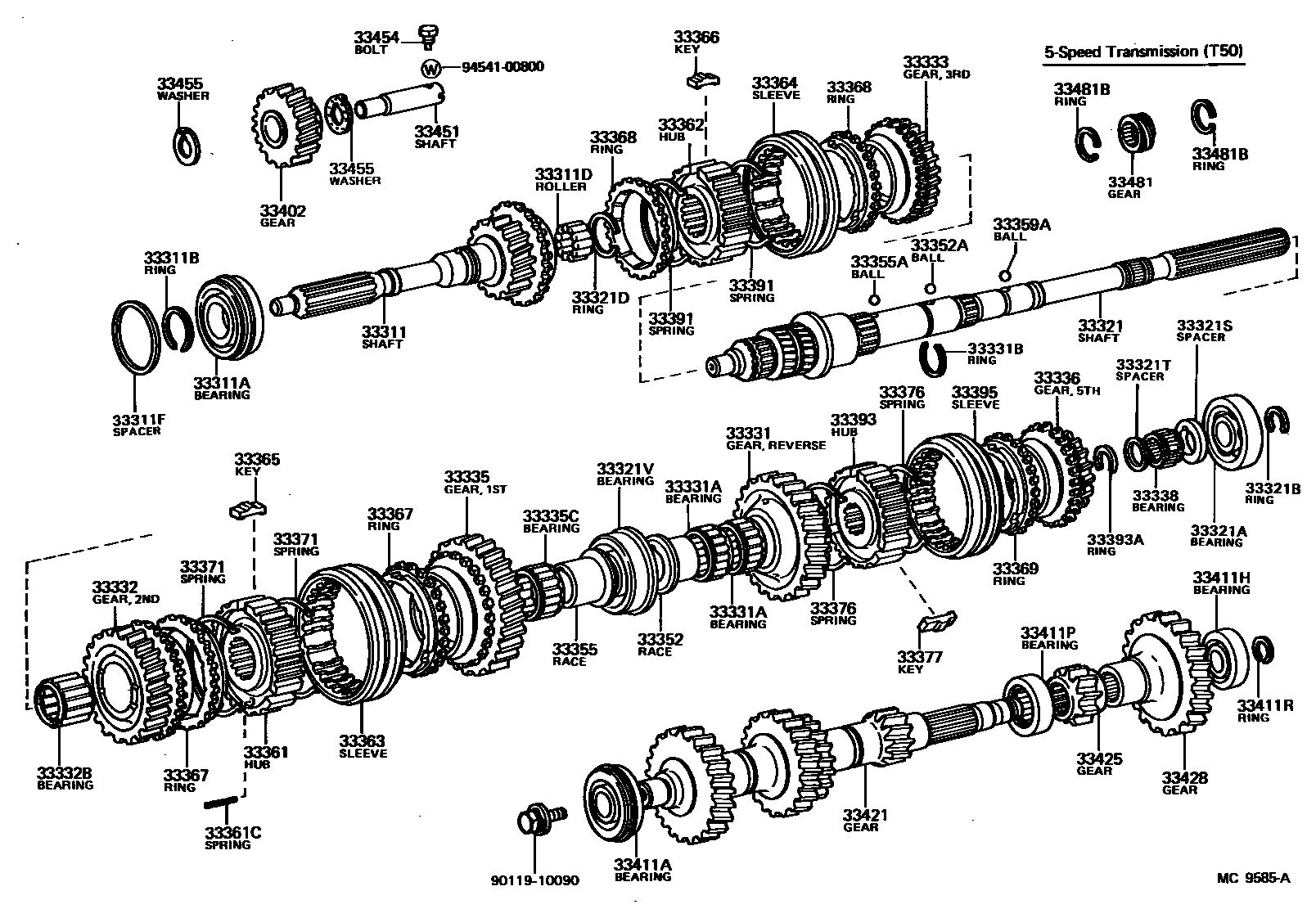

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.35-2.40
T=2.45-2.50
T=2.40-2.45,T=2.40-2.45
T=2.50-2.55
T=2.45-2.50,T=2.55-2.60
33311DBEARING, INPUT SHAFT
33311FSPACER (FOR INPUT SHAFT)
T=1.825
T=1.935
T=2.045
T=2.155
T=2.265
T=2.375
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.35-2.40,T=2.35-2.40
T=2.40-2.45,T=2.40-2.45
T=2.45-2.50,T=2.45-2.50
T=2.50-2.55,T=2.50-2.55
T=2.55-2.60,T=2.55-2.60
T=2.60-2.65,T=2.60-2.65
T=2.65-2.70,T=2.65-2.70
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.95-2.00,T=1.95-2.00
T=2.00-2.05,T=2.00-2.05
T=2.05-2.10,T=2.05-2.10
T=2.10-2.15,T=2.10-2.15
T=2.15-2.20,T=2.15-2.20
33321SSPACER (FOR GEAR STOPPER)
33321TSPACER (FOR OUTPUT SHAFT)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
33331ABEARING (FOR REVERSE GEAR)
33331BRING, SET (FOR REVERSE GEAR)
T=2.70-2.75
T=2.75-2.80
T=2.80-2.85
T=2.85-2.90
T=2.90-2.95
T=2.95-3.00
T=3.00-3.05
T=3.05-3.10
T=3.10-3.15
T=3.15-3.20
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33338BUSH OR BEARING, 5TH GEAR
33352RACE, REVERSE GEAR BEARING INNER
33352AKEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33361CSPRING COMPRESSION (FOR CLUTCH HUB)
33362HUB, TRANSMISSION CLUTCH, NO.2
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.60-2.65,T=2.60-2.65
T=2.65-2.70,T=2.65-2.70
T=2.70-2.75,T=2.70-2.75
T=2.75-2.80,T=2.75-2.80
T=2.80-2.85,T=2.80-2.85
T=2.85-2.90,T=2.85-2.90
T=2.90-2.95,T=2.90-2.95
T=2.95-3.00,T=2.95-3.00
T=3.00-3.05,T=3.00-3.05
T=3.05-3.10,T=3.05-3.10
T=3.10-3.15,T=3.10-3.15
T=3.15-3.20,T=3.15-3.20
T=3.20-3.25,T=3.20-3.25
T=3.25-3.30,T=3.25-3.30
T=3.30-3.35,T=3.30-3.35
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411PBEARING, COUNTERSHAFT CENTER
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=2.00-2.05
T=1.80-1.85
T=1.60-1.65,T=1.60-1.65
33421GEAR, COUNTER
33425GEAR, COUNTERSHAFT REVERSE
33428GEAR, COUNTERSHAFT 5TH
33451SHAFT, REVERSE IDLER GEAR
33454BOLT, SHAFT RETAINING
33455WASHER, REVERSE IDLER GEAR THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
W/185/60R14 TIRE
N=6
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9011910090
main90119-10090
9454100800
main94541-00800
59 parts on this diagram · 1 diagram in section
