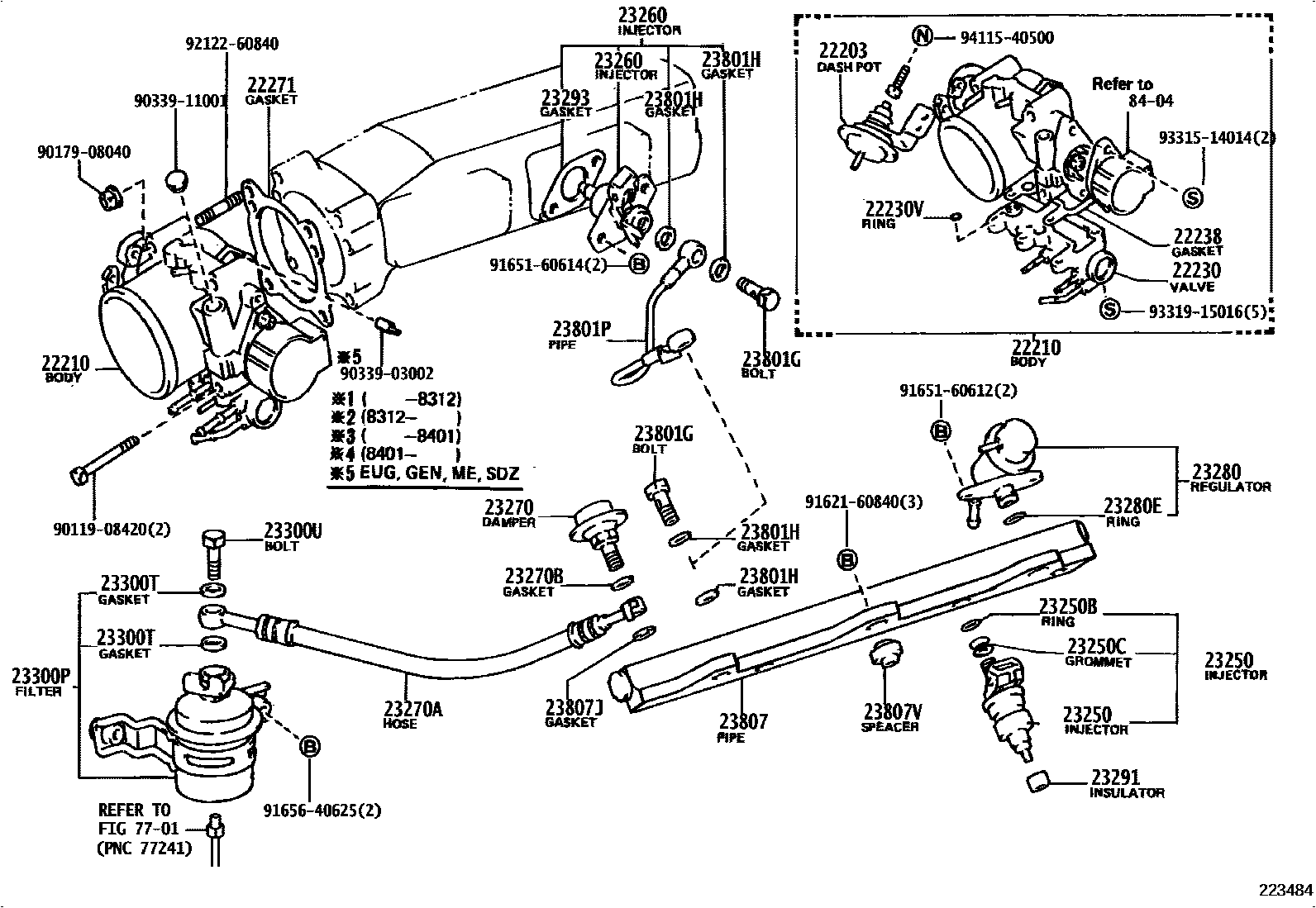

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22230VALVE ASSY, AUXILIARY AIR
22230VRING, O(FOR AUXILIARY AIR VALVE)
22238GASKET, AUXILIARY AIR VALVE
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270AHOSE(FOR PULSATION DAMPER)
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
7701FUEL TANK & TUBE
8404ELECTRONIC FUEL INJECTION SYSTEM
9011908420
main90119-08420
9017908040
main90179-08040
9033903002
main90339-03002
9033911001
main90339-11001
9162160840
main91621-60840
9165160612
main91651-60612
9165160614
main91651-60614
9165640625
main91656-40625
9212260840
main92122-60840
9331514014
main93315-14014
9331915016
main93319-15016
9411540500
main94115-40500
40 parts on this diagram · 2 diagrams in section
