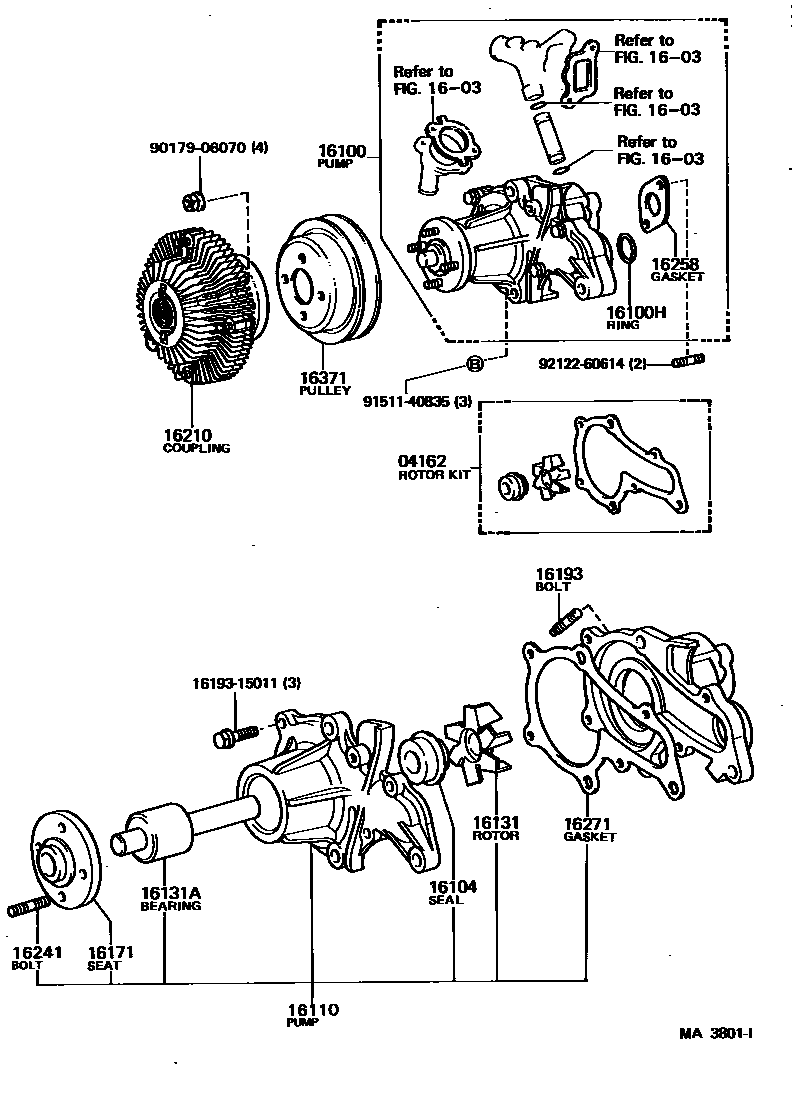

WATER PUMP

0001 1 0002 1

04162ROTOR KIT, WATER PUMP

main04162-15010i4A,4AC..AE86198305-198704

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19036i4A,4AC..AE86198305-198704

main16100-19095i4AG#..AE86198308-198707

16100HRING, O(FOR WATER PUMP)

main96711-24035i4A,4AC,4AG#..AE86198305-198707

16104SEAL SET, WATER PUMP

main16104-15020i4A,4AC..AE86198405-198704

main16104-41111i4A,4AC..AE86198305-198405

16110PUMP ASSY, WATER, W/O COUPLING

main16110-15020i4A,4AC..AE86198401-198704

main16110-16010i4AG#..AE86198308-198707

16131ROTOR, WATER PUMP

main16131-15010i4A,4AC..AE86198305-198704

16131ABEARING, WATER PUMP

main90369-30014i4A,4AC..AE86198305-198704

16171SEAT, WATER PUMP PULLEY

main16171-15020i4A,4AC..AE86198305-198704

main16171-88280i4AG#..AE86198308-198707

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15010i4A,4AC,4AG#..AE86198305-198707

16210COUPLING ASSY, FLUID

main16210-16010i4AG#..AE86198308-198707

main16210-28020i4A,4AC..AE86198305-198704

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16241-15020i4A,4AC,4AG#..AE86198305-198707

16258GASKET(FOR HEATER RETURN)

main16258-15011i4A,4AC,4AG#..AE86198305-198707

16271GASKET, WATER PUMP

main16124-15010i4A,4AC,4AG#..AE86198305-198707

16371PULLEY, FAN

main16173-26021i4A,4AC..AE86198305-198704

main16371-16020i4AGE..AE86198308-198704

main16371-16021i4AG#..AE86198501-198707

1619315011BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011

9017906070

main90179-06070

9151140835

main91511-40835

9212260614

main92122-60614

19 parts on this diagram · 2 diagrams in section
