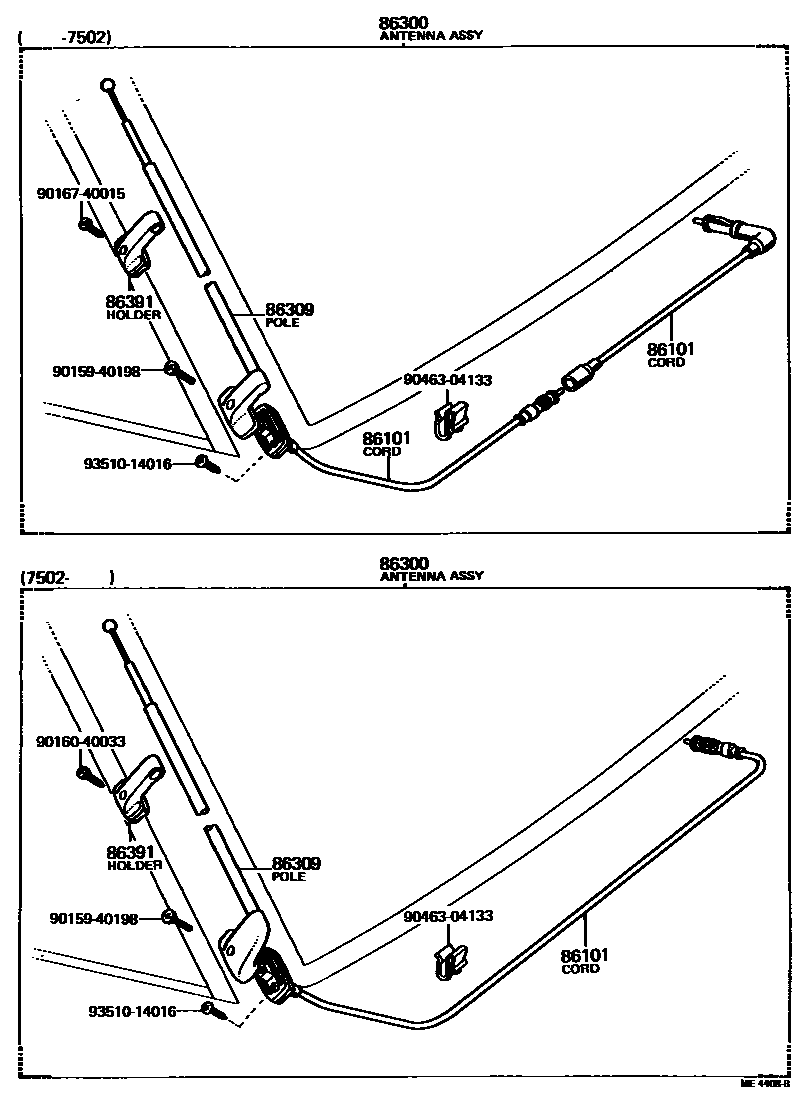

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-12030iKE30,36..GEN197408-197502

ANTENNA SIDE

main86101-12031iKE30,36,50,TE47,51..ARL,EUR,GEN197502-197805

main86101-12032iKE30,36,38,5#,TE47,51..ARL,EUR,GEN197805-198107

main86101-12040iKE35197408-197502

ANTENNA SIDE

main86101-12041iKE35..SR;KE35..DLX..EUG;KE35..DLX..(ARL,GEN)197502-197805

main86101-12042iKE35,55..HT197805-198107

main86101-12050iTE47197408-197502

ANTENNA SIDE

main86101-12051iKE50,TE47,51..RHD197502-197701

main86101-12060iKE30,36..GEN197408-197502

TUNER SIDE

main86101-12070iTE47197408-197502

TUNER SIDE

main86101-12071iKE50,TE47,51..LHD197502-197701

main86101-12080iKE35197408-197502

TUNER SIDE

86300ANTENNA ASSY, W/HOLDER

main86300-12070iKE30,36,38,5#,TE47,51..RHD197408-198107

main86300-12080iKE35,55..RHD197408-198107

main86300-12090iKE50,TE47,51..RHD197408-197701

main86300-12101iKE30,36..LHD197408-198002

main86300-12111iKE35..LHD197408-197908

main86300-12120iTE47..LHD197408-197411

main86300-12121iKE50,TE47,51..LHD197411-197701

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-10010iKE30,36,38,5#,TE47,51..RHD197805-198107

main86309-10020iKE30,36,50,TE47,51..LHD197805-197807

main86309-12010iKE30,36..RHD..GEN197408-197502

main86309-12011iKE30,36,50,TE47,51..RHD197502-197711

main86309-12012iKE30,36,50,TE47,51..RHD197711-197805

main86309-12020iKE35..RHD197408-197502

main86309-12021iKE35..RHD197502-197711

main86309-12030iTE47..RHD197408-197502

main86309-12031iKE50,TE47,51..RHD197502-197701

main86309-12041iKE30,36..LHD197408-197502

main86309-12042iKE30,36,50,TE47,51..LHD197502-197711

main86309-12043iKE30,36,50,TE47,51..LHD197711-197805

main86309-12044iKE30,36,50,TE47,51..LHD197807-198002

main86309-12051iKE35..LHD197408-197502

main86309-12052iKE35..LHD197502-197711

main86309-12053iKE35..LHD197711-197805

main86309-12054iKE35..LHD197805-197908

main86309-12060iTE47..LHD197408-197411

main86309-14050iKE35..RHD197711-197805

main86309-14051iKE35,55..HT197805-197908

86391HOLDER, ANTENNA

main86391-12040iTE47..LHD197408-197502

main86391-12041iKE50,TE47,51..LHD197502-197711

main86391-12042iKE30,36,50,TE47,51..ARL,EUR,GEN197711-197805

main86391-12043iKE30,36,38,5#,TE47,51..ARL,EUR,GEN197805-198107

main86391-12050iKE35197408-197502

main86391-12051iKE35..SR;KE35..DLX..EUG;KE35..DLX..(ARL,GEN)197502-197711

main86391-12052iKE35..SR;KE35..(A20,K40)..DLX197711-197805

main86391-12053iKE35,55..HT197805-197908

main86391-12060iTE47..RHD197408-197502

main86391-12061iKE50,TE47,51..RHD197502-197701

9015940198

main90159-40198

9016040033

main90160-40033

9016740015

main90167-40015

9046304133

main90463-04133

9351014016

main93510-14016

9 parts on this diagram · 1 diagram in section
