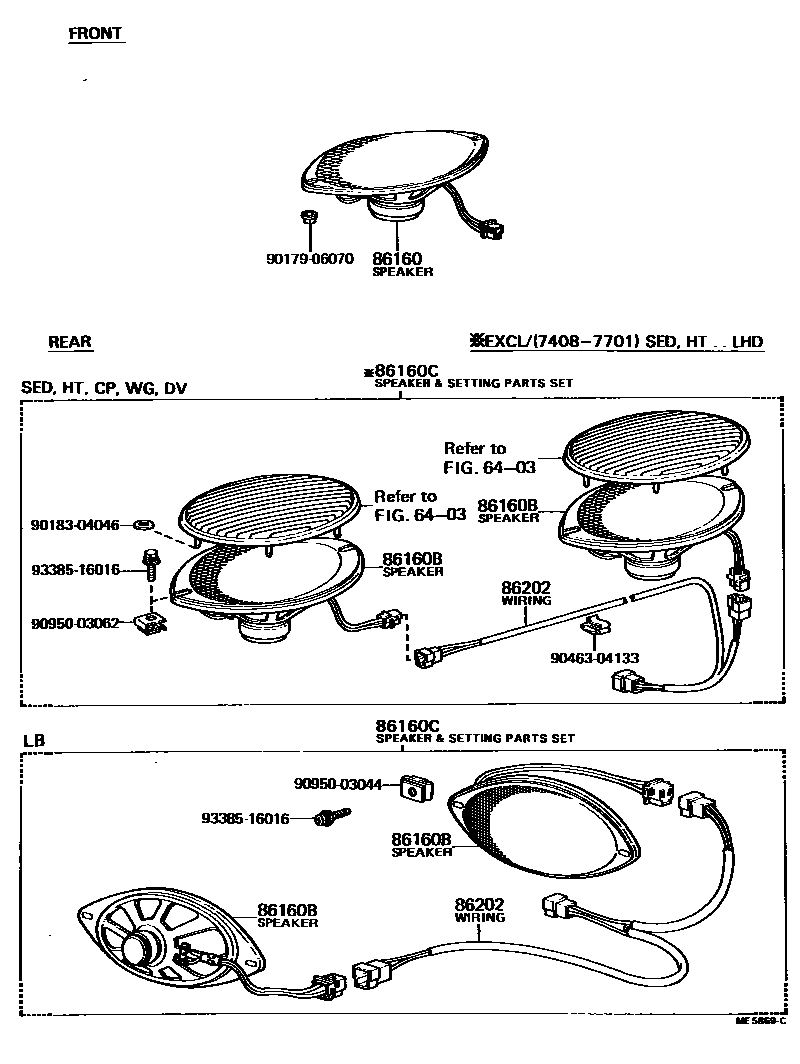

SPEAKER

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

86160SPEAKER ASSY, FRONT NO.1

main86160-12050iKE36..GEN,SA197408-197512

main86160-12060iKE55..HT,SED;KE3#,50,TE47,51..ARL,GEN197701-198107

main86160-12060iKE3#,50,TE47,51..ARL,EUR,GEN197512-197701

RADIO ONLY

86160BSPEAKER ASSY, REAR

main86160-12050iKE36..GEN197408-198107

86160CSPEAKER SET, REAR

main86160-12050iKE36..GEN197408-198107

86202WIRE, SPEAKER, NO.1

main86202-12020iKE50,TE51..LHD197603-197908

main86202-12030iKE30,35,TE47..GEN197408-198107

9017906070

main90179-06070

9018304046

main90183-04046

9046304133

main90463-04133

9095003044

main90950-03044

9095003062

main90950-03062

9338516016

main93385-16016

11 parts on this diagram · 1 diagram in section
