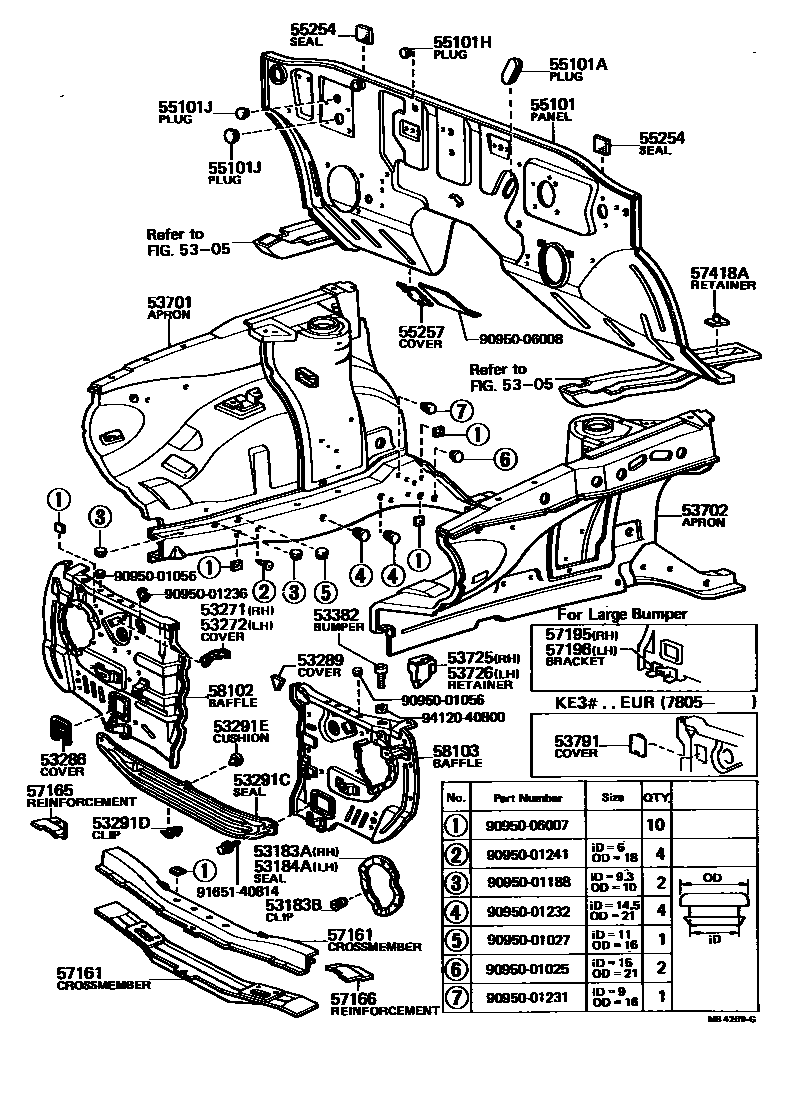

FRONT FENDER APRON & DASH PANEL

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

53183ASEAL, HEADLAMP COVER, RH

main53183-12020iKE30,35,36..EUR197712-197908

main53183-12030iKE50,TE47,51..EUR197802-197908

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-08002×6iKE3#..EUR197712-197801

main90467-08008×6iKE3#..EUR197801-197802

53184ASEAL, HEADLAMP COVER, LH

main53183-12030iKE50,TE47,51..EUR197802-197908

main53184-12020iKE30,35,36..EUR197712-197908

53271COVER, HORN HOLE, RH

main53271-12010iKE30,35,36,50,TE47,51..EUR197805-197908

53272COVER, HORN HOLE, LH

main53272-12010iKE30,35,36,50,TE47,51..EUR197805-197908

53286COVER, FRONT BUMPER ARM HOLE

main53285-12010iKE3#..EUR197712-197802

RH

main53286-12010iKE30,35,36,50,TE47,51..EUR197802-197908

LH

53289COVER, RADIATOR SIDE BAFFLE

main53289-12020iKE30,35,36,50,TE47,51..EUR197805-197908

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-12020iKE3#..EUR197712-197802

53291DCLIP, RADIATOR SUPPORT TO FRAME

main53259-12010iKE3#..EUR197712-197802

53291ECUSHION(FOR RADIATOR SUPPORT TO FRAME)

main90541-10009iTE47,51..EUG197802-197908

53382BUMPER, HOOD, FRONT

main53382-20011×2iKE3#,5#,TE3#,47,51197408-198107

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-12090iKE3#,TE3#197408-197608

main53701-12100iKE50,TE47,51197408-197608

main53701-12150iKE30,35,36,55,TE3#..DV,HT,SED,WG197608-198107

main53701-12190iKE5#,TE47,51..CP,LB197608-197908

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-12070iKE3#,TE3#197408-197608

main53702-12080iKE50,TE47,51197408-197608

main53702-12120iKE30,35,36,55,TE3#..DV,HT,SED,WG197608-198107

main53702-12160iKE5#,TE51..LB197608-197908

53725RETAINER, FRONT BUMPER STAY, RH

main53707-12040iKE3#,55,TE3#,47..CP,DV,HT,SED,WG197408-198107

main53707-12050iKE5#,TE51..LB197603-197908

53726RETAINER, FRONT BUMPER STAY, LH

main53708-12040iKE3#,55,TE3#,47..CP,DV,HT,SED,WG197408-198107

main53708-12050iKE5#,TE51..LB197603-197908

53791COVER, COOL AIR INTAKE HOLE

main53791-12010iKE30,35,36..EUR197805-197908

55101PANEL SUB-ASSY, DASH

main55101-12140iKE3#,50..RHD197408-197701

main55101-12141iKE3#,50..RHD197701-197708

main55101-12142iKE3#,50..RHD197708-197806

main55101-12143iKE3#,5#..RHD197806-198107

main55101-12150iTE3#,47,51..RHD197408-197701

main55101-12151iTE3#,47,51..RHD197701-197708

main55101-12152iTE3#,47,51..RHD197708-197806

main55101-12153iTE3#,47,51..RHD197806-198004

main55101-12170iKE3#,50..LHD197408-197708

main55101-12171iKE3#,50..LHD197708-197806

main55101-12172iKE30,35,36,50..LHD197806-198002

main55101-12180iTE47,51..LHD197408-197608

main55101-12181iTE47,51..LHD197608-197708

main55101-12182iTE47,51..LHD197708-197806

main55101-12183iTE47,51..LHD197806-197908

55101APLUG, HOLE, NO.1(FOR DASH PANEL)

main90950-01023iKE30..STD..EUR197701-197908

W/O HEATER

55101HPLUG, HOLE, NO.2(FOR DASH PANEL)

main90950-01013iTE3#; TE47..LT197408-197505

W/O CHOKE WIRE

55101JPLUG, HOLE, NO.3(FOR DASH PANEL)

main90950-01018×2iTE47..LHD197408-197505

OD=25,W/O COOLER

main90950-01061iTE47..LHD197408-197505

OD=35,W/O COOLER

55254SEAL, CLUTCH WIRE HOLE

main55255-12010iKE30,35,55..ATM197408-198107

main55255-12020iTE31,51..A40197512-198004

55257COVER, DASH PANEL OPENING

main55257-12010×2iKE3#,5#,TE3#,47,51197806-198107

57161CROSSMEMBER, FRONT

main57161-12040iKE3#,5#,TE3#,47,51197808-198107

UPR

main57161-12901iKE3#,50,TE3#,47,51197408-197808

UPR

main57162-12902iKE3#,5#,TE3#,47,51197408-198107

LWR

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57167-12020iKE3#,50,TE3#,47,51197408-197808

main57167-12030iKE3#,5#,TE3#,47,51197808-198107

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57168-12020iKE3#,50,TE3#,47,51197408-197808

main57168-12030iKE3#,5#,TE3#,47,51197808-198107

57195BRACKET, FRONT ENERGY ABSORBER SUPPORT, RH

main53263-12010iTE3#197904-198004

57196BRACKET, FRONT ENERGY ABSORBER SUPPORT, LH

main53264-12010iKE30..GEN197805-197908

LARGE BUMPER

57418ARETAINER, FRONT FLOOR UNDER REINFORCEMENT, LH

main57321-12010iKE3#,TE47197408-197502

58102BAFFLE SUB-ASSY, RADIATOR SIDE, RH

main53202-12020iKE3#,TE3#197408-197511

main53202-12021iKE3#,TE3#197511-197805

main53202-12022iKE3#,55,TE3#..DV,HT,SED,WG197805-198003

main53202-12030iTE47197408-197511

main53202-12031iTE47197701-197902

main53202-12100iKE5#,TE51..LB197701-197908

58103BAFFLE SUB-ASSY,RADIATOR SIDE, LH

main53203-12020iKE3#,TE3#197408-197601

main53203-12021iKE3#,TE3#197601-197602

main53203-12030iTE47197408-197601

main53203-12031iTE47197701-197902

main53203-12080iKE3#,TE3#197602-197805

main53203-12081iKE3#,TE3#197805-197808

main53203-12090iKE5#,TE51..LB197701-197908

main53203-12100iKE3#,55,TE3#..DV,HT,SED,WG197808-198003

9095001025

main90950-01025

9095001027

main90950-01027

9095001056

main90950-01056

9095001188

main90950-01188

9095001231

main90950-01231

9095001232

main90950-01232

9095001236

main90950-01236

9095001241

main90950-01241

9095006007

main90950-06007

9095006008

main90950-06008

9165140814

main91651-40814

9412040800

main94120-40800

43 parts on this diagram · 1 diagram in section
