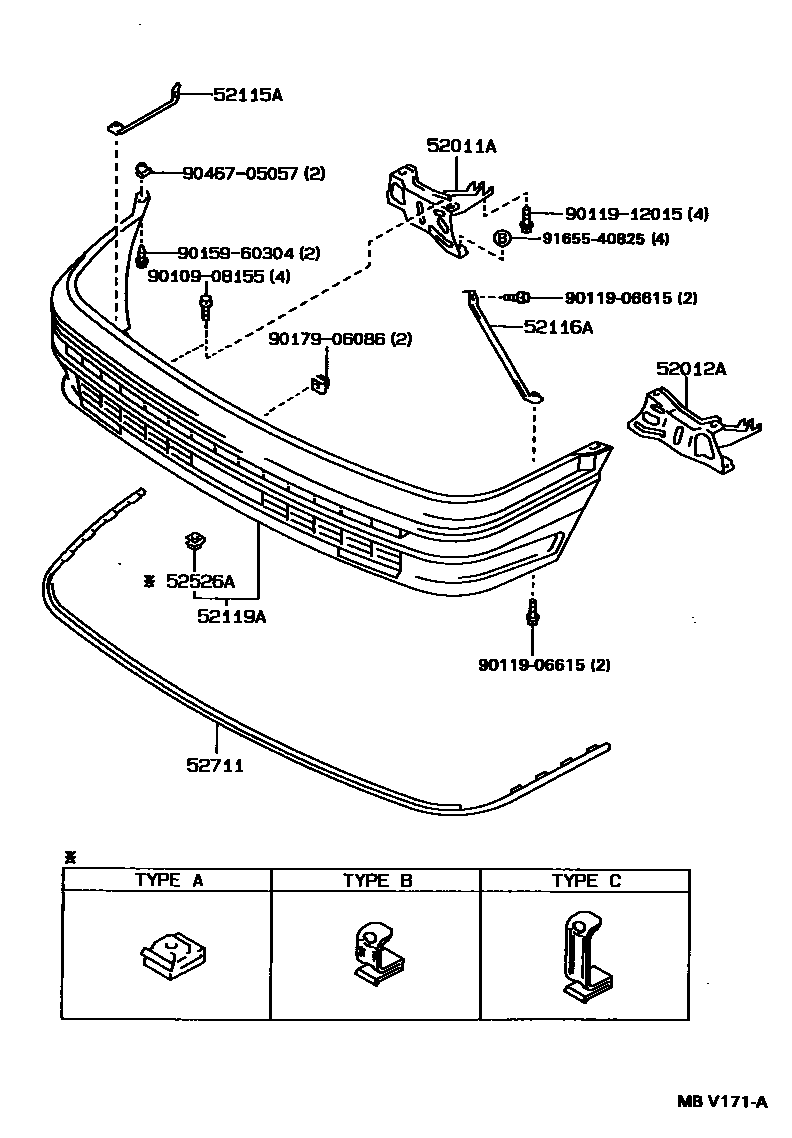

FRONT BUMPER & BUMPER STAY

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-12370iAE95199009-199508

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-12380iAE95199009-199508

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12260iAE95199009-199508

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12200iAE95199009-199508

52119ACOVER, FRONT BUMPER

main52119-1A230iAE95; AE95..LHD199009-199508

main52119-1A390iAE95..LHD199009-199508

W(HEAD LAMP CLEANER)

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52565-12090iAE95199009-199508

TYPE B

main52565-12110iAE95199009-199508

TYPE C

main52565-16020×4iAE95199009-199508

TYPE A

52711MOULDING, FRONT BUMPER

main52711-12170-12iAE95199009-199104

RED,040 ,168 ,27M ,4K1 ,8G2

main52711-12170-13iAE95199009-199106

SILVER,22S ,25M ,3E5 ,3H4 ,6K6 ,8E9

9010908155

main90109-08155

9011906615

main90119-06615

9011912015

main90119-12015

9015960304

main90159-60304

9017906086

main90179-06086

9046705057

main90467-05057

9165540825

main91655-40825

14 parts on this diagram · 1 diagram in section
