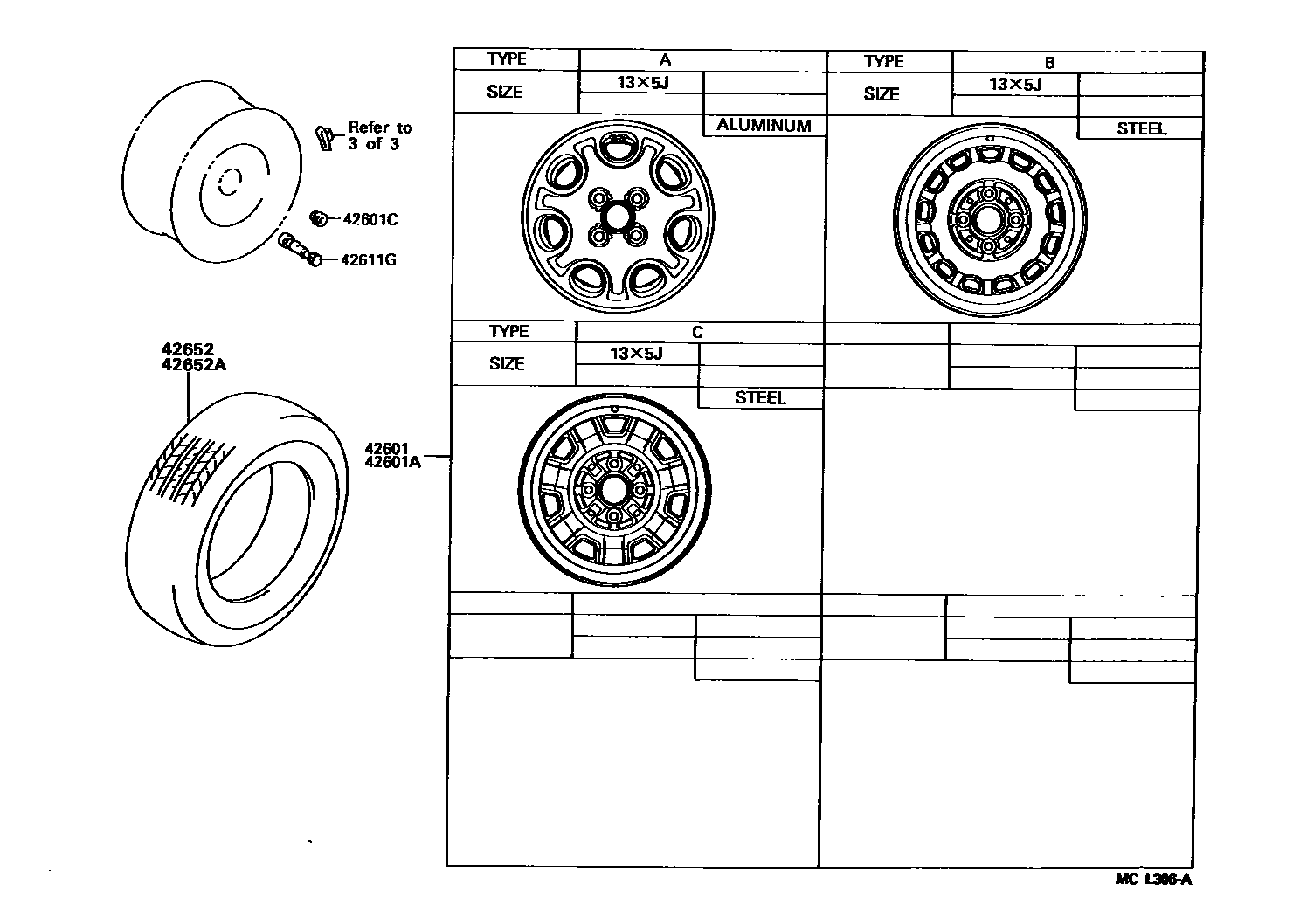

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-12820-03×4iAE95199009-199508

13X5J,TYPE B,SILVER

main42611-13080-01×4iAE95199009-199508

13X5J,TYPE B,BLACK

main42611-1A030×4iAE95199009-199508

13X5J,ALUMINUM,TYPE A

main42611-20300-03×4iAE95..LHD199009-199508

13X5J,TYPE C,DARK GRAY

42601AWHEEL, DISC (FOR SPARE)

main42611-12820-03iAE95199009-199508

13X5J,TYPE B,SILVER

main42611-13080-01iAE95199009-199508

13X5J,TYPE B,BLACK

main42611-1A030iAE95199009-199508

13X5J,ALUMINUM,TYPE A

main42611-20300-03iAE95..LHD199009-199508

13X5J,TYPE C,DARK GRAY

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iAE95..LHD199009-199508

W(WHEEL CAP)

main90942-01021×16iAE95199009-199508

main90942-01033×16iAE95199009-199508

W(ALUMINUM WHEEL)

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iAE95199009-199508

42652TIRE

main42652-12730×4iAE95..LHD199009-199508

165SR13,ALL SEASON

main42652-12770×4iAE95199009-199508

185/70SR13,ALL SEASON

main42652-12780×4iAE95199009-199508

185/70SR13

main42652-14140×4iAE95; AE95..LHD199009-199508

165SR13,*(B),*(D),*(T); 165SR13,*(B),*(D),*(T) & W(WHEEL CAP)

main42652-14180×4iAE95199009-199508

185/70R13 85H

main42652-14290×4iAE95; AE95..LHD199009-199508

165SR13,*(Y) & W(WHEEL CAP)

42652ATIRE (FOR SPARE)

main42652-12730iAE95..LHD199009-199508

165SR13,ALL SEASON

main42652-12770iAE95199009-199508

185/70SR13,ALL SEASON

main42652-12780iAE95199009-199508

185/70SR13

main42652-14140iAE95; AE95..LHD199009-199508

165SR13,*(B),*(D),*(T) & W(WHEEL CAP)

main42652-14180iAE95199009-199508

185/70R13 85H

main42652-14290iAE95; AE95..LHD199009-199508

165SR13,*(Y) & W(WHEEL CAP)

6 parts on this diagram · 3 diagrams in section
