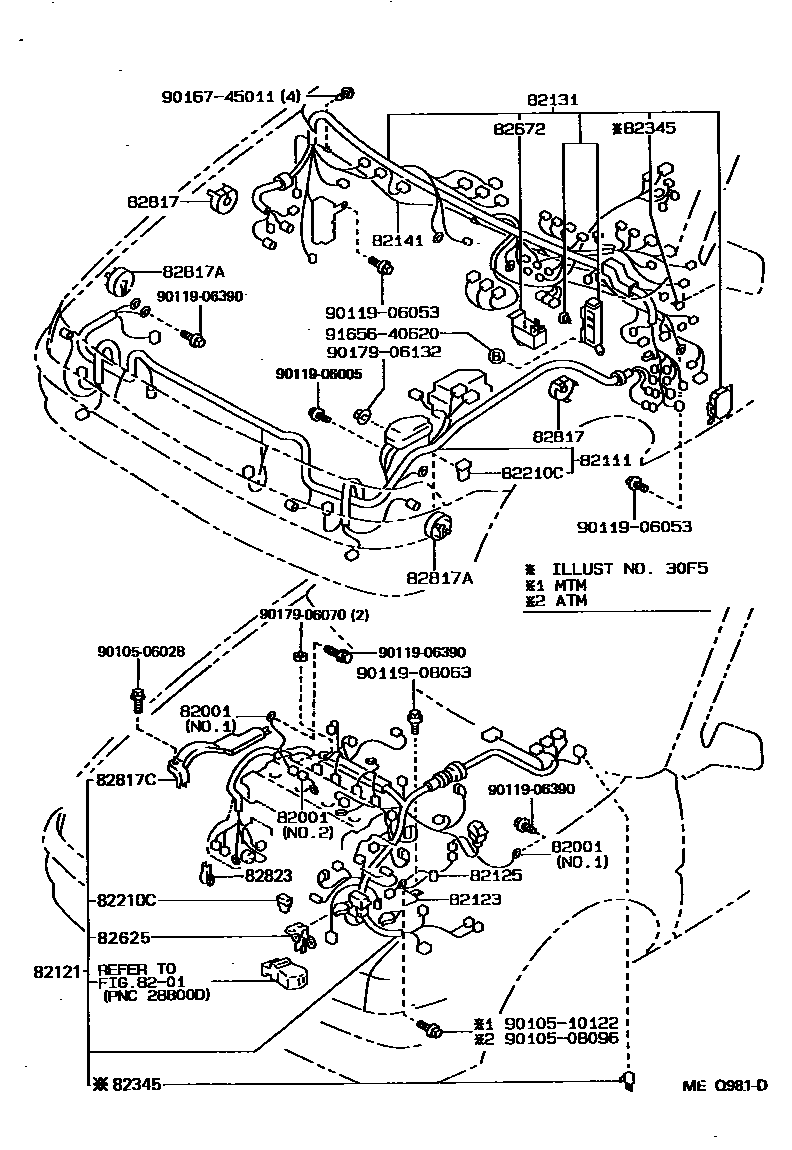

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

82001CABLE, BOND, NO.1

main90980-07206×2iAE95199009-199308

NO.1

main90980-07299iAE95199009-199308

NO.2

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

82111WIRE, ENGINE ROOM MAIN

main82111-13150iAE95..CND199009-199108

main82111-13151iAE95..CND199108-199308

main82111-13160iAE95..CND199009-199108

W(CRUISE CONTROL)

main82111-13161iAE95..CND199108-199308

W(CRUISE CONTROL)

main82111-13180iAE95..USA199009-199208

main82111-13190iAE95..USA199009-199208

W(CRUISE CONTROL)

82121WIRE, ENGINE

main82121-1E400iAE95..5F199009-199308

main82121-1E410iAE95..4FC199009-199308

82123WIRE, ENGINE, NO.3

main82123-12170iAE95199009-199308

82125WIRE, TRANSMISSION

main82125-12340iAE95..4FC199009-199308

82131WIRE, COWL

main82131-13540iAE95..SR5..USA; AE95..USA199009-199208

W(*PW & *BDEL)

main82131-13550iAE95..USA199009-199208

W(CRUISE CONTROL)

main82131-13560iAE95..USA199009-199208

W(*BDEL)

main82131-13570iAE95..USA199009-199208

W(*BDEL & CRUISE CONTROL)

main82131-13580iAE95..CND; AE95..SR5..CND199009-199108

W(*PW & *BDEL)

main82131-13581iAE95..SR5..CND199108-199208

W(*PW & *BDEL)

main82131-13590iAE95..CND199009-199108

W(CRUISE CONTROL)

main82131-13591iAE95..CND199108-199308

W(CRUISE CONTROL)

main82131-13600iAE95..CND199009-199108

W(*BDEL)

main82131-13601iAE95..CND199108-199308

W(*BDEL)

main82131-13610iAE95..CND199009-199108

W(*BDEL & CRUISE CONTROL)

main82131-13611iAE95..CND199108-199308

W(*BDEL & CRUISE CONTROL)

82141WIRE, INSTRUMENT PANEL

main82141-12100iAE95..SR5199009-199208

82210CFUSIBLE LINK

main90982-08188iAE95199009-199308

30A,TERM.:FEMALE,PNK

main90982-08189iAE95199009-199308

40A,TERM.:FEMALE,GRN

main90982-08223iAE95199009-199308

30A,TERM.:MALE,PNK

main90982-08246iAE95199009-199308

100A,TERM.:MALE,BLUE

82345DIODE

main82345-12030iAE95199009-199308

NO.1

main82345-12050iAE95199009-199308

NO.3

82625TERMINAL, FUSIBLE LINK

main82625-12060iAE95199009-199308

82672COVER, JUNKTION BLOCK

main82672-12111iAE95199009-199308

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-14350×2iAE95199009-199308

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-32010×2iAE95199009-199308

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-12700iAE95199009-199308

82823CAP, TERMINAL, NO.1

main82823-22050iAE95199009-199308

9010506028

main90105-06028

9010508096

main90105-08096

9010510122

main90105-10122

9011906005

main90119-06005

9011906053

main90119-06053

9011906390

main90119-06390

9011908063

main90119-08063

9016745011

main90167-45011

9017906070

main90179-06070

9017906132

main90179-06132

9165640620

main91656-40620

27 parts on this diagram · 5 diagrams in section
