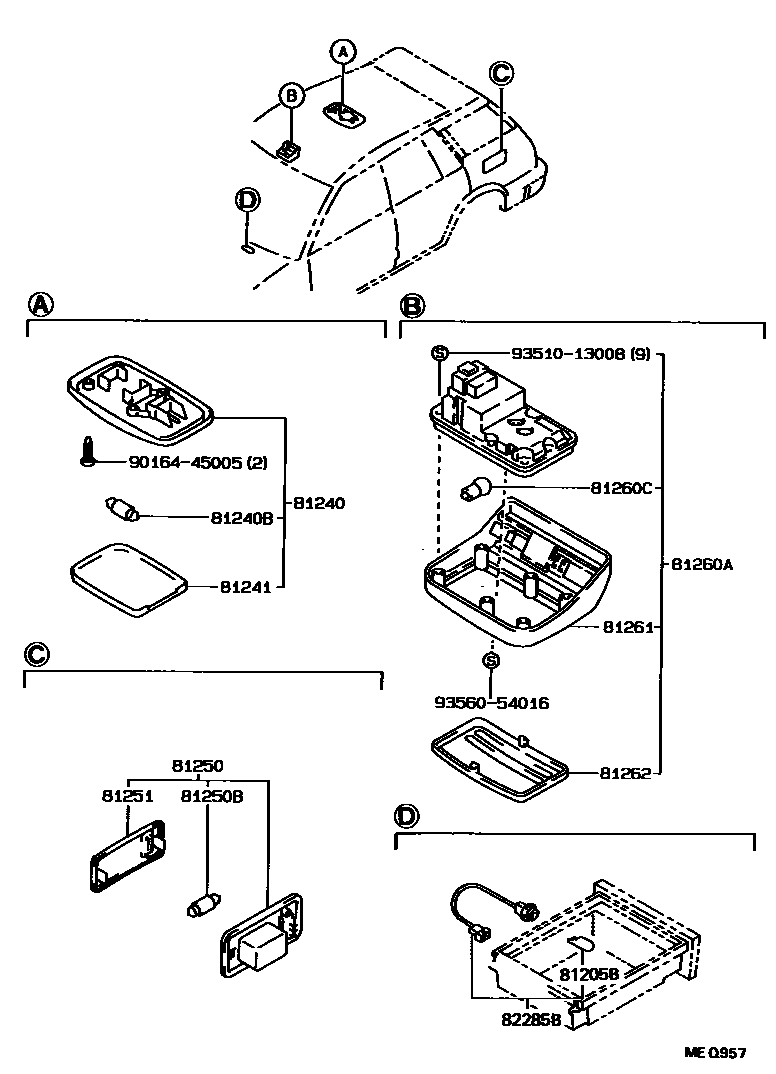

INTERIOR LAMP

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014iAE95199009-199308

14V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81240-12020-03iAE95199009-199106

LIGHT GRAY,TRIM1#

main81240-12020-04iAE95199009-199308

LIGHT BLUE,TRIM8#

main81240-12020-S3iAE95199106-199308

LIGHT GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iAE95199009-199308

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-12020iAE95199009-199308

81250LAMP ASSY, ROOM, NO.2

main81250-12030-03iAE95199009-199308

SHADOW GRAY,TRIM1#

main81250-12030-04iAE95199009-199308

DARK BLUE,TRIM8#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAE95199009-199308

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030iAE95199009-199308

81260ALAMP ASSY, MAP

main81260-12060-03iAE95199009-199308

GRAY,TRIM1#

main81260-12060-04iAE95199009-199308

BLUE,TRIM8#

81260CBULB(FOR MAP LAMP)

main90981-12014iAE95199009-199308

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-12060-03iAE95199009-199308

GRAY,TRIM1#

main81261-12060-04iAE95199009-199308

BLUE,TRIM8#

81262LENS, MAP LAMP

main81262-12060iAE95199009-199308

82285BWIRE, ILLUMINATION

main82285-12010iAE95199009-199308

9016445005

main90164-45005

9351013008

main93510-13008

9356054016

main93560-54016

15 parts on this diagram · 1 diagram in section
