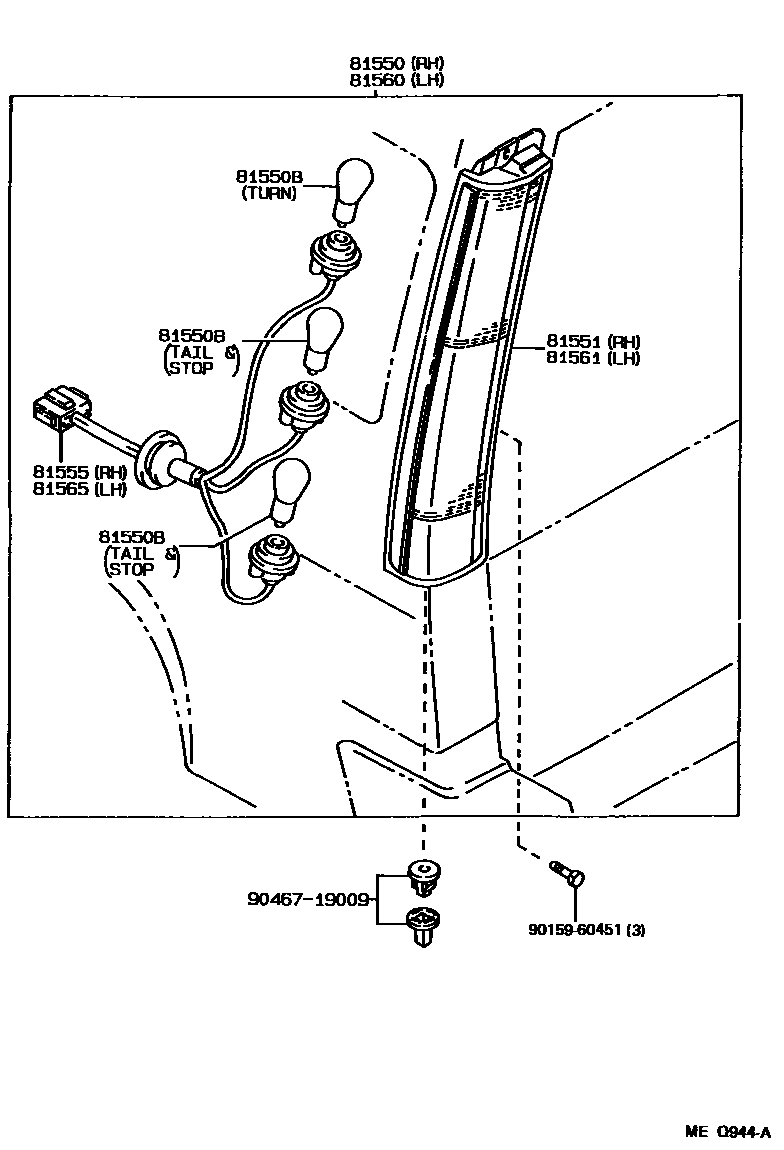

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-1A461iAE95199009-199308

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11270×2iAE95199009-199308

12V 27W

main99132-21270×4iAE95199009-199308

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-1A451iAE95199009-199308

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-1A460iAE95199009-199308

81560LAMP ASSY, REAR COMBINATION, LH

main81560-1A431iAE95199009-199308

81561LENS, REAR COMBINATION LAMP, LH

main81561-1A421iAE95199009-199308

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-1A460iAE95199009-199308

9015960451

main90159-60451

9046719009

main90467-19009

9 parts on this diagram · 1 diagram in section
