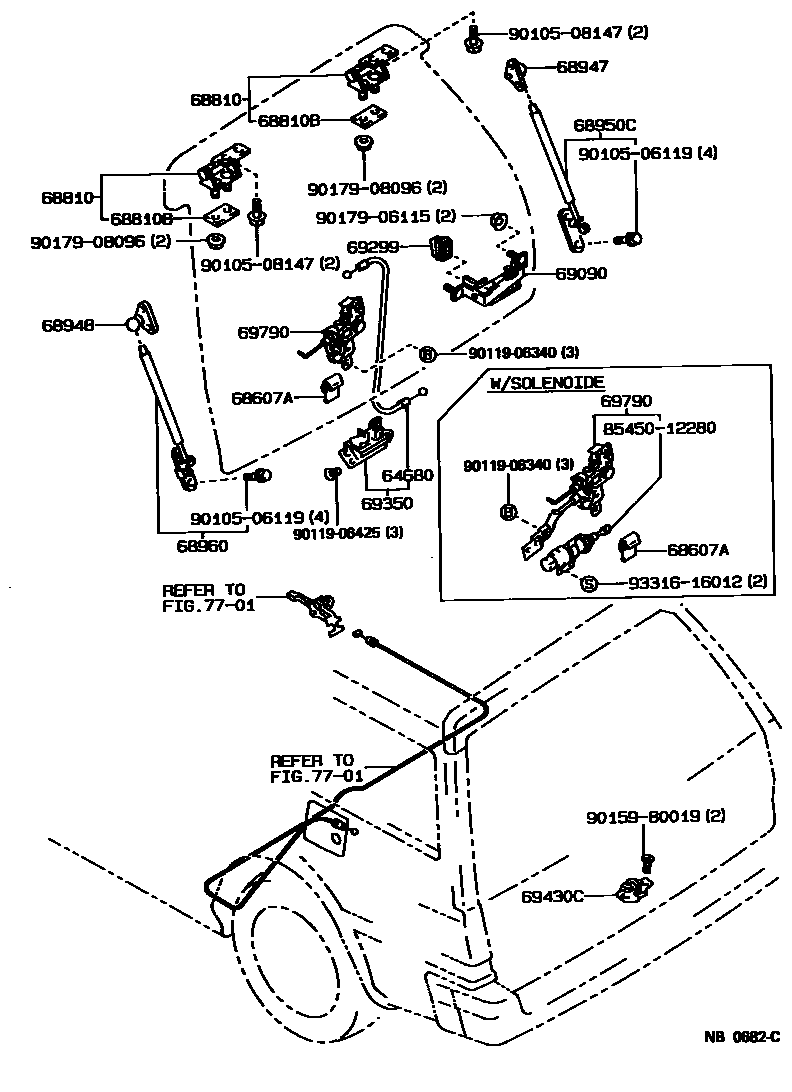

BACK DOOR LOCK & HANDLE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-12010×2iAE95199009-199308

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010iAE95199009-199308

68810HINGE ASSY, BACK DOOR, UPPER

main68801-12051×2iAE95199009-199308

68810BPAD, BACK DOOR HINGE

main68838-14022×2iAE95199009-199308

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68945-12020iAE95199009-199308

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68945-12020iAE95199009-199308

68950CSTAY ASSY, BACK DOOR, RH

main68950-19646iAE95199009-199308

68960STAY ASSY, BACK DOOR, LH

main68960-19336iAE95199009-199308

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-12010-02iAE95..USA199009-199108

RED MICA,20G

main69090-12010-03iAE95..CND; AE95..USA199108-199205

GRAY M,040 ,183 ,26T ,3E5 ,3K4 ,8J7; GRAY M,040 ,183 ,3E5 ,3K4 ,8J7

main69090-12010-04iAE95..CND199009-199108

DARK BLUE MICA M,25M

main69090-12010-D0iAE95..USA199108-199208

RED MICA M,27T

main69090-12010-J0iAE95..CND199108-199308

DK BLUE MICA M,26T

69299GROMMET, BACK DOOR HANDLE

main69299-12010iAE95199009-199308

69350LOCK ASSY, BACK DOOR

main69350-12161iAE95199009-199308

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-12250iAE95199009-199308

69790CONTROL ASSY, BACK DOOR LOCK

main69790-12010iAE95199009-199308

main69790-12020iAE95199009-199308

W(BACK DOOR OPENER)

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8545012280SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-12280

9010506119

main90105-06119

9010508147

main90105-08147

9011906340

main90119-06340

9011906425

main90119-06425

9015980019

main90159-80019

9017906115

main90179-06115

9017908096

main90179-08096

9331616012

main93316-16012

23 parts on this diagram · 1 diagram in section
