MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1A560-03iAE95..DX..CND199009-199308

SHDOW GRAY,TRIM1#

main58510-1A560-04iAE95..DX..CND199009-199308

DARK BLUE,TRIM8#

main58510-1A630-03iAE95..SR5..CND199009-199208

SHADOW GRAY,TRIM1#

main58510-1A630-04iAE95..SR5..CND199009-199208

DARK BLUE,TRIM8#

main58510-1A660-03iAE95..DX..USA199009-199208

SHADOW GRAY,TRIM1#

main58510-1A660-04iAE95..DX..USA199009-199208

DARK BLUE,TRIM8#

main58510-1A670-03iAE95..SR5..USA199009-199208

SHADOW GRAY,TRIM1#

main58510-1A670-04iAE95..SR5..USA199009-199208

DARK BLUE,TRIM8#

main58510-1A680-03iAE95..DX..USA199009-199208

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1A680-04iAE95..DX..USA199009-199208

COLD SPEC,DARK BLUE,TRIM8#

main58510-1A690-03iAE95..SR5..USA199009-199208

COLD SPEC,SHADOW GRAY,TRIM1#

main58510-1A690-04iAE95..SR5..USA199009-199208

COLD SPEC,DARK BLUE,TRIM8#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09068-11×2iAE95199009-199209

BLACK,TRIM1#,8#

main90467-09068-22×2iAE95199209-199308

BLACK,TRIM1#,8#

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90467-06049-B0×2iAE95199009-199308

SHADOW GRAY,TRIM1#

main90467-06049-J1×2iAE95199009-199308

DARK BLUE,TRIM8#

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-12050iAE95199009-199308

58534AMAT, TRANSMISSION COVER

main58534-12020iAE95199009-199308

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

main90467-10034-01iAE95199009-199308

BLACK,TRIM1#,8#

58570CCARPET ASSY, REAR FLOOR

main58570-12360-03iAE95..DX199009-199308

SHADOW GRAY,TRIM1#

main58570-12360-04iAE95..DX199009-199308

DARK BLUE,TRIM8#

main58570-12390-03iAE95..SR5199009-199208

SHADOW GRAY,TRIM1#

main58570-12390-04iAE95..SR5199009-199208

DARK BLUE,TRIM8#

58574APLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-12020-03iAE95199009-199308

SHADOW GRAY,TRIM1#

main58574-12020-04iAE95199009-199308

DARK BLUE,TRIM8#

58579CCLIP, REAR FLOOR CARPET SET

main90467-06037-13×5iAE95199009-199308

GRAY,TRIM1#,TYPE A

main90467-06037-24×5iAE95199009-199308

DARK BLUE,TRIM8#,TYPE A

main90467-07049-03×5iAE95199009-199308

GRAY,TRIM1#,TYPE B

main90467-07049-J0×5iAE95199009-199308

DARK BLUE,TRIM8#,TYPE B

6777114040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14040

9018904102

main90189-04102

9046705050

main90467-05050

9356054014

main93560-54014

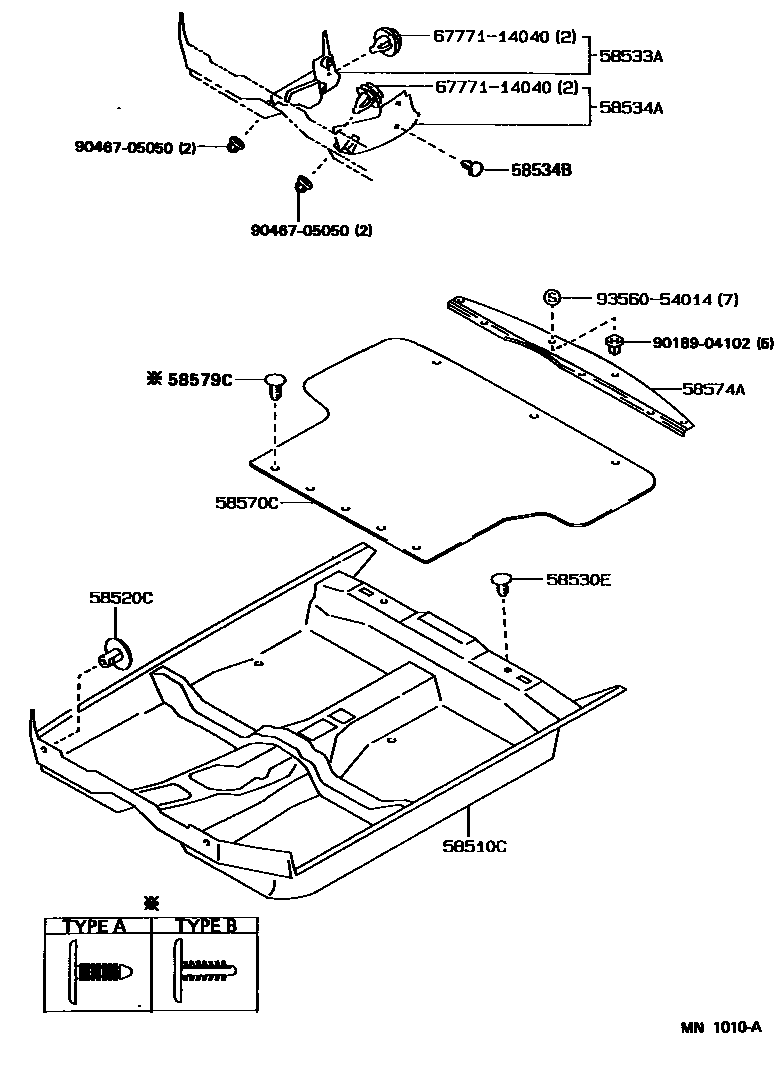

13 parts on this diagram · 1 diagram in section
