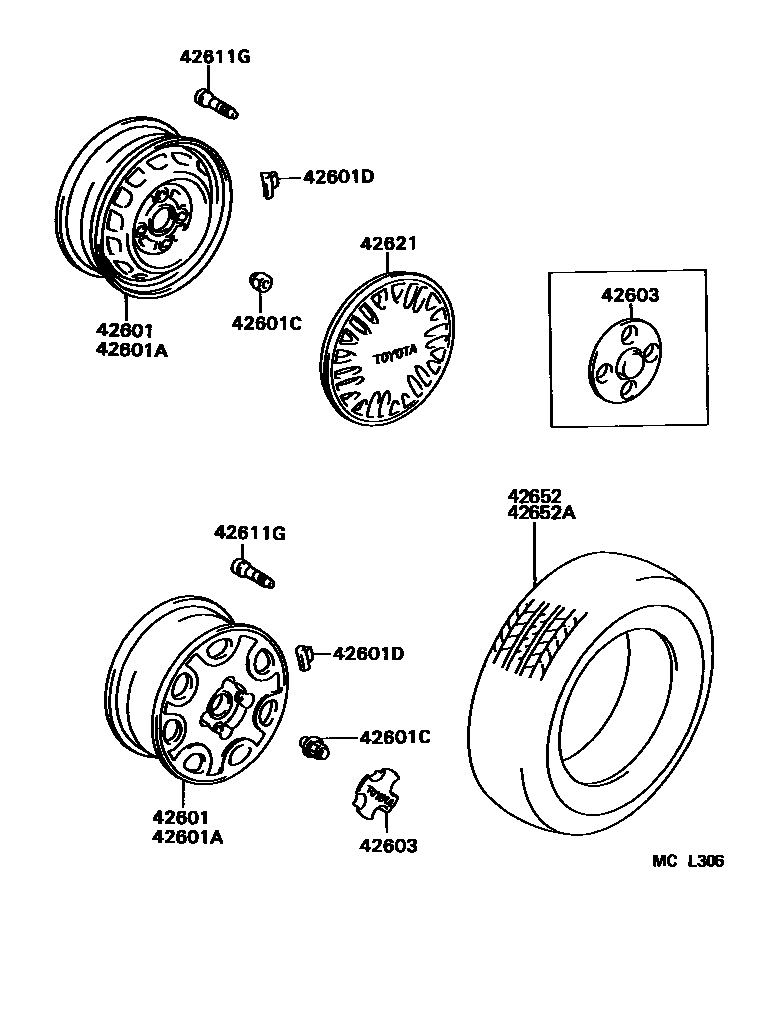

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
13X5J,SILVER
13X5J,13X5J,W(ALUMINUM WHEEL)
13X5J,DARK GRAY
42601AWHEEL, DISC (FOR SPARE)
13X5J,SILVER
15X4T
13X5J,13X5J,W(ALUMINUM WHEEL)
13X5J,DARK GRAY
42601CNUT, HUB (FOR AXLE)
W(WHEEL CAP)
W(ALUMINUM WHEEL)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G,T=8
30G,T=10
40G,T=9.5
50G,T=9.5
60G,T=9.5
70G,T=9.5
80G,T=9.5
10G,T=7.5
15G
25G
35G
45G
55G
65G
75G
10G,W(ALUMINUM WHEEL)
15G,W(ALUMINUM WHEEL)
20G,W(ALUMINUM WHEEL)
25G,W(ALUMINUM WHEEL)
30G,W(ALUMINUM WHEEL)
35G,W(ALUMINUM WHEEL)
40G,W(ALUMINUM WHEEL)
45G,W(ALUMINUM WHEEL)
50G,W(ALUMINUM WHEEL)
55G,W(ALUMINUM WHEEL)
60G,W(ALUMINUM WHEEL)
65G,W(ALUMINUM WHEEL)
70G,W(ALUMINUM WHEEL)
75G,W(ALUMINUM WHEEL)
80G,W(ALUMINUM WHEEL)
5G
5G,W(ALUMINUM WHEEL)
42603ORNAMENT SUB-ASSY, WHEEL HUB
W(ALUMINUM WHEEL)
42611GVALVE (FOR TUBELESS TIRE)
42621CAP, WHEEL
SILVER M
BEIGE M
42652TIRE
165SR13
185/70R13
42652ATIRE (FOR SPARE)
165SR13
185/70R13
T135/70D15
9 parts on this diagram · 1 diagram in section
