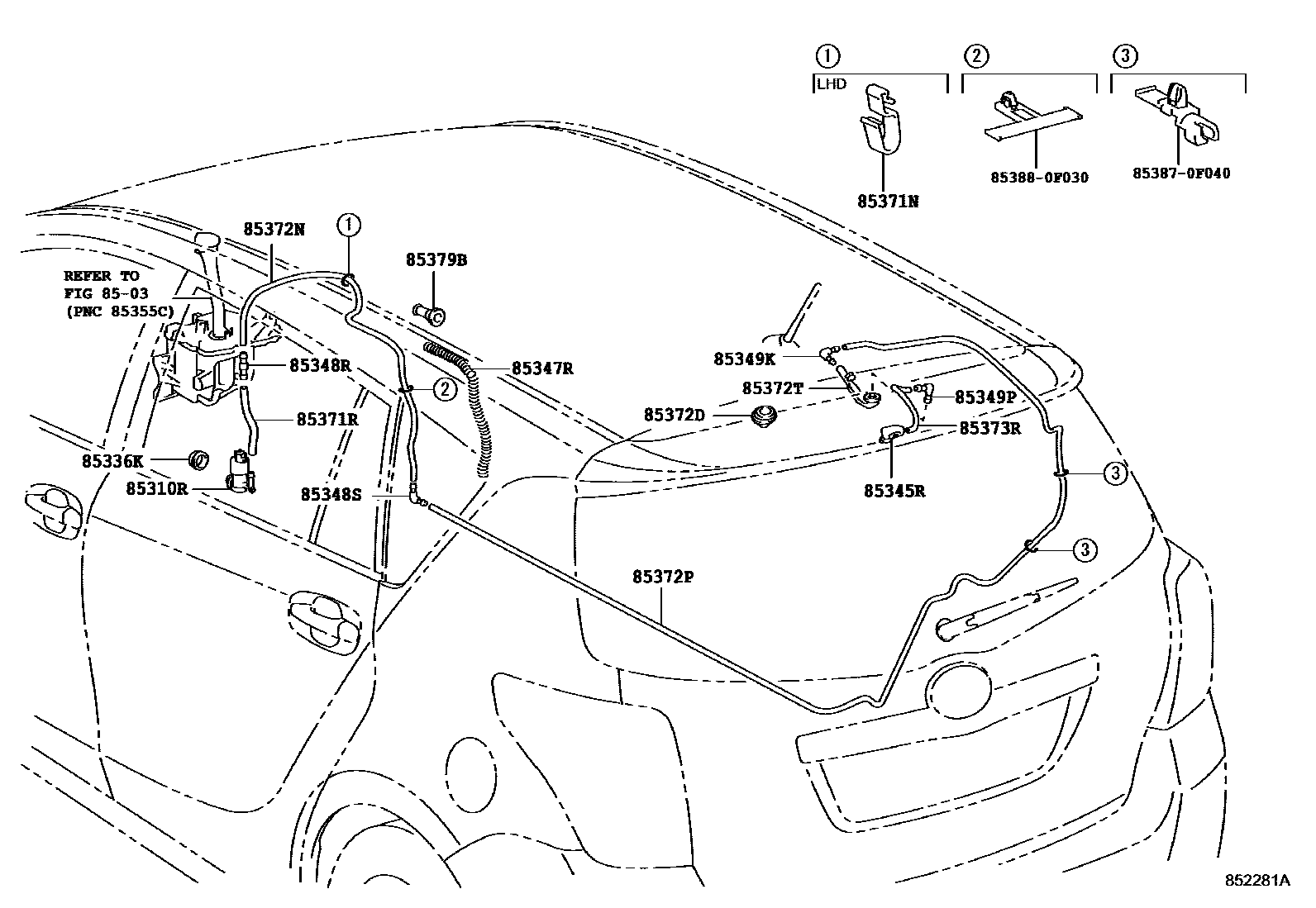

REAR WASHER
8503WINDSHIELD WASHER
85310RMOTOR ASSY, REAR WASHER
85336KPROTECTOR, WASHER JAR
85345RNOZZLE, REAR WASHER
85347RSPRING
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=120
L=120,HEADLAMP CLEANER-WITH
L=120,HEAD LAMP CLEANER-WITH
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=3755
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=250)
85379BGROMMET, WASHER, A
853870F040CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-0F040
853880F030CLAMP NO.2 (FOR WINDSEIELD WASHER)
main85388-0F030
19 parts on this diagram · 1 diagram in section
