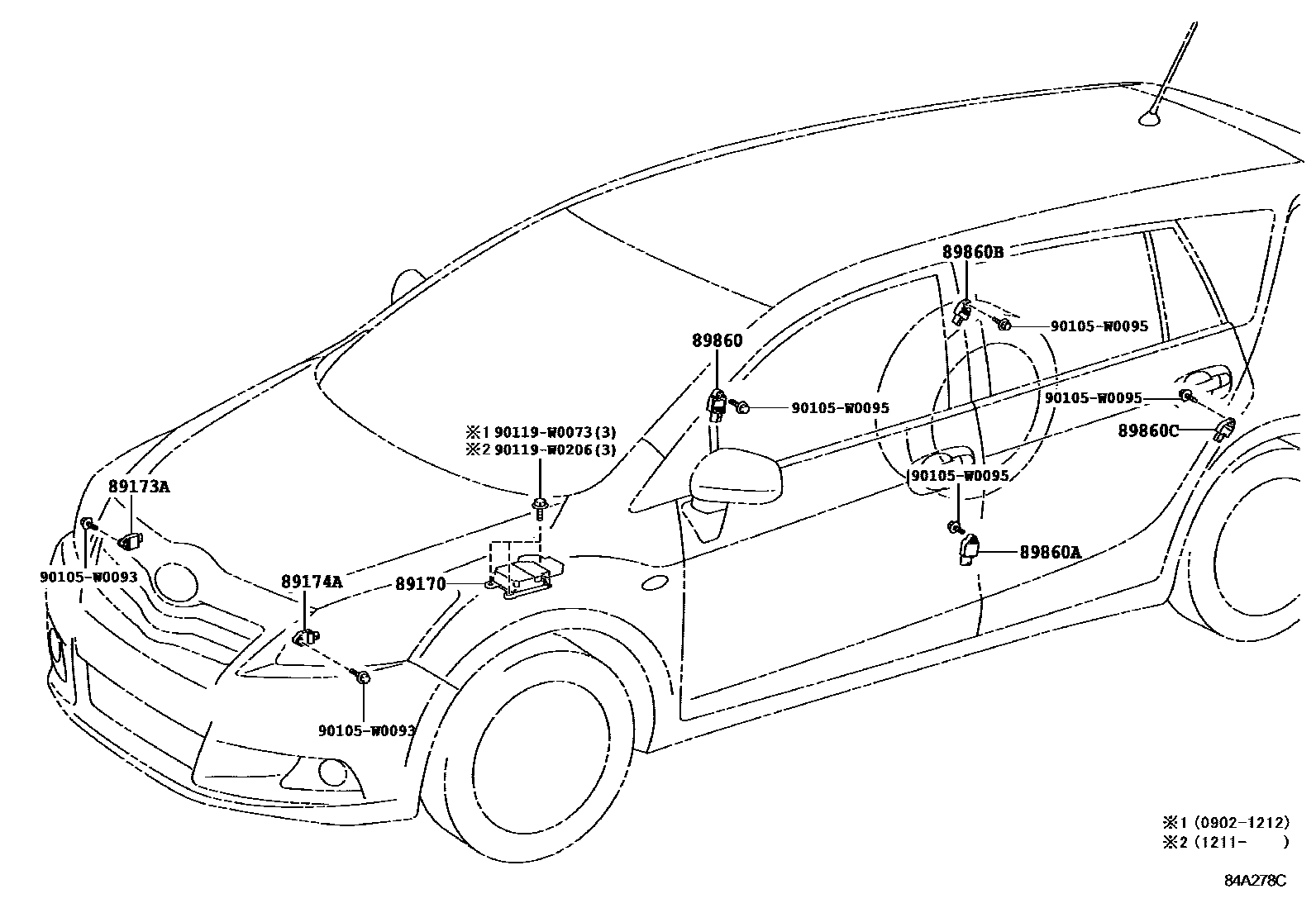

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-0F100iAUR2#,ZGR2#..LHD201007-201211

main89170-0F120iAUR2#,ZGR2#..RHD200902-201007

main89170-0F150iWAR20,ZGR2#201503

main89170-0F090iAUR20,ZGR2#..LHD..6F..ENTRY201007-201211

SRS AIR BAG-WITH(*DRP & SIDE & KNEE) & W/O(CURTAIN)

main89170-0F110iAUR20,ZGR2#..RHD..ENTRY200902-201007

SRS AIR BAG-WITH(*DRP & SIDE & KNEE) & W/O(CURTAIN)

main89170-0F160iWAR20,ZGR20..RHD..ENTRY201503

SRS AIR BAG-WITH(*DRP & SIDE & KNEE) & W/O(CURTAIN)

89173ASENSOR, AIRBAG, FRONT RH

main89173-09570iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

main89173-09630iAUR2#,WAR20,ZGR2#201211-201503

89174ASENSOR, AIRBAG, FRONT LH

main89173-09570iAUR2#,ZGR2#200902-201007

main89173-09630iAUR2#,WAR20,ZGR2#201211-201503

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-02100iWAR20,ZGR2#201503

main89831-05020iZGR21..RHD..CVT..ENTRY201007-201111

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-02100iAUR2#,WAR20,ZGR2#201211-201503

main89831-05020iAUR2#,ZGR2#200902-201007

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-0F010iAUR2#,ZGR2#; AUR20,ZGR2#..ENTRY200902-201007

SRS AIR BAG-WITH(*DRP & SIDE & KNEE) & W/O(CURTAIN)

main89831-0F040iAUR2#,WAR20,ZGR2#; AUR20,WAR20,ZGR20..RHD..ENTRY201211-201503

SRS AIR BAG-WITH(*DRP & SIDE & KNEE) & W/O(CURTAIN)

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-0F010iAUR2#,ZGR2#; AUR20,ZGR2#..ENTRY200902-201007

SRS AIR BAG-WITH(*DRP & SIDE & KNEE) & W/O(CURTAIN)

main89831-0F040iAUR2#,WAR20,ZGR2#; AUR20,WAR20,ZGR20..RHD..ENTRY201211-201503

SRS AIR BAG-WITH(*DRP & SIDE & KNEE) & W/O(CURTAIN)

90105W0093

main90105-W0093

90105W0095

main90105-W0095

90119W0073

main90119-W0073

90119W0206

main90119-W0206

11 parts on this diagram · 1 diagram in section
