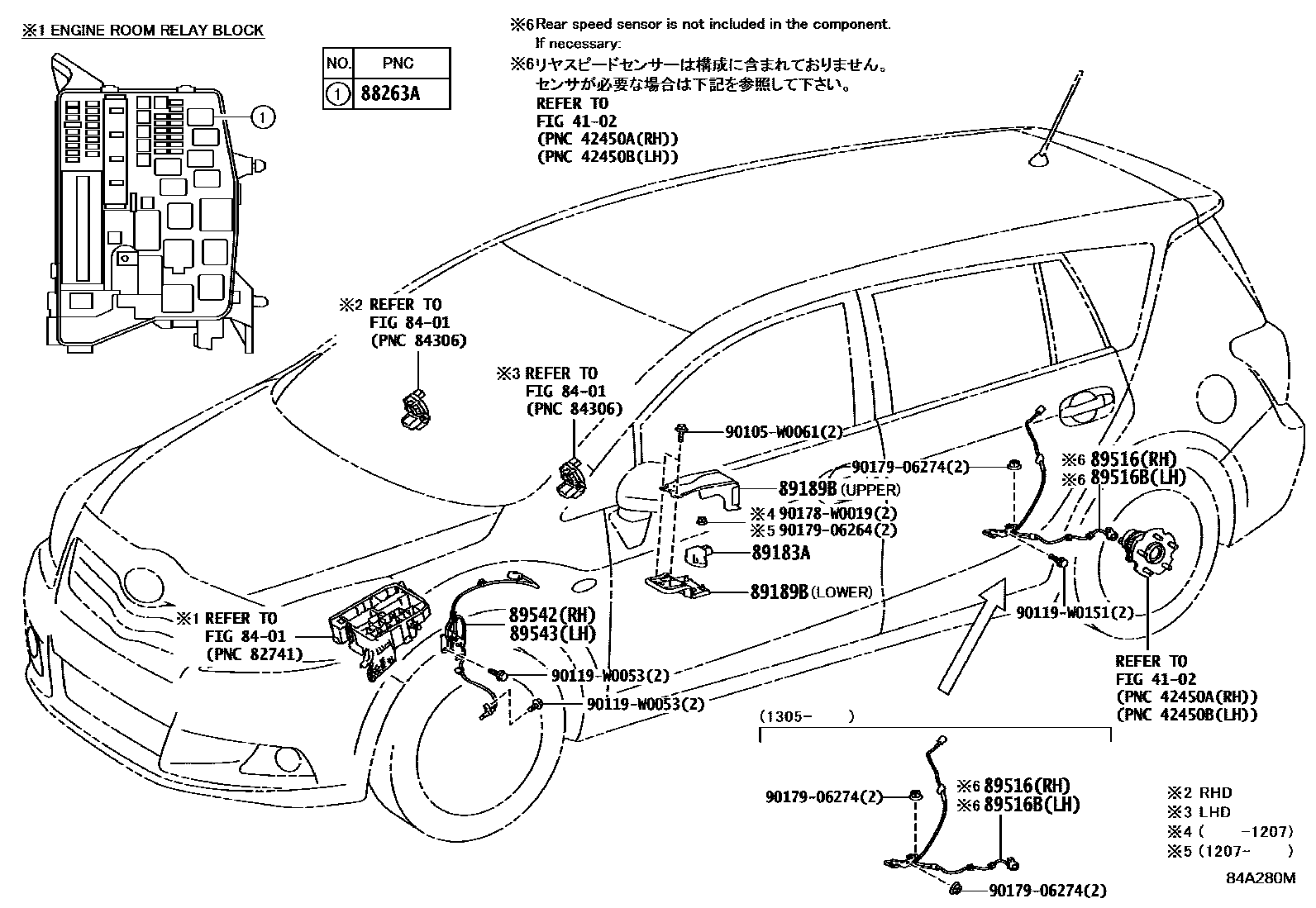

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88263ARELAY, SKID CONTROL

main90987-04004iAUR2#,ZGR2#200902-201211

89183ASENSOR, YAWRATE

main89183-05030iAUR2#,ZGR2#200902-201211

main89183-0F010iWAR20,ZGR2#201211-201503

89189BBRACKET, YAWRATE SENSOR

main89189-02020iAUR2#,ZGR2#200902-201503

LOWER

main89189-02030iZGR21..RHD..CVT..ENTRY200902-201503

UPPER

89516WIRE, SKID CONTROL SENSOR

main89516-02071iAUR2#,ZGR2#200902-201306

main89516-02170iAUR2#,WAR20,ZGR2#201306-201503

89516BWIRE, SKID CONTROL SENSOR

main89516-02081iAUR2#,ZGR2#200902-201305

main89516-02180iAUR2#,WAR20,ZGR2#201306-201503

89542SENSOR, SPEED, FRONT RH

main89542-02061iAUR2#,ZGR2#200902-201503

89543SENSOR, SPEED, FRONT LH

main89543-02061iAUR2#,ZGR2#200902-201503

90105W0061

main90105-W0061

90119W0053

main90119-W0053

90119W0151

main90119-W0151

90178W0019

main90178-W0019

9017906264

main90179-06264

9017906274

main90179-06274

15 parts on this diagram · 1 diagram in section
