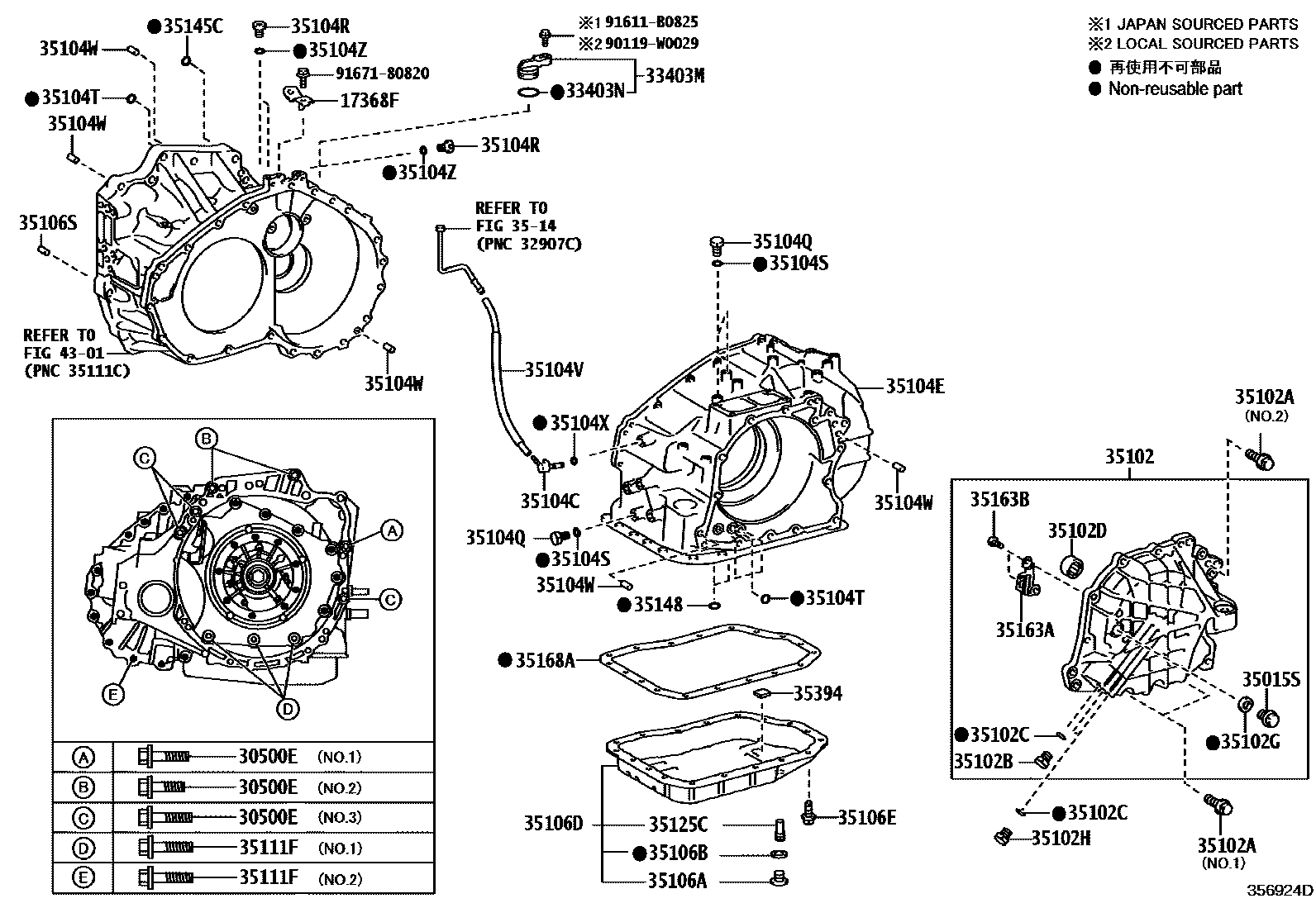

TRANSMISSION CASE & OIL PAN (ATM)
17368FSUPPORT, AIR TUBE
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*12-1.25PX50-30,(L),NO.3
*12-1.25PX75-30,NO.1,(J)
*12-1.25PX55-30,NO.2,(J)
*12-1.25PX55-30,NO.2,(L)
*12-1.25PX75-30,NO.1,(L)
*10-1.25PX50-30,(J),NO.3
*10-1.25PX50-30,NO.3
33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
35102COVER SUB-ASSY, TRANSAXLE REAR
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX28-22,NO.1
*8-1.25PX28-22,NO.2
35102BPLUG(FOR TRANSAXLE REAR COVER)
35102CRING, O(FOR TRANSAXLE REAR COVER PULG)
35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)
35102GGASKET (FOR TRANSAXLE REAR COVER )
35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
35104VHOSE (FOR BREATHER PLUG)
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
35104XRING, O (FOR BREATHER PLUG)
35104ZGASKET (FOR TRANSAXLE CASE)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106EBOLT (FOR TRANSAXLE OIL PAN)
35106SPIN, RING (FOR TRANSAXLE CASE)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*8-1.25PX45-22,NO.1
*8-1.25PX45-22,NO.2
35125CTUBE, TRANSMISSION OIL FILLER, NO.1
3514OIL COOLER & TUBE (ATM)
35145CGASKET, TRANSAXLE CASE
35148GASKET, GOVERNOR APPLY, NO.1
35163APLATE, TRANSAXLE REAR COVER
35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
4301FRONT AXLE HOUSING & DIFFERENTIAL
90119W0029
main90119-W0029
91611B0825
main91611-B0825
9167180820
main91671-80820
40 parts on this diagram · 1 diagram in section
